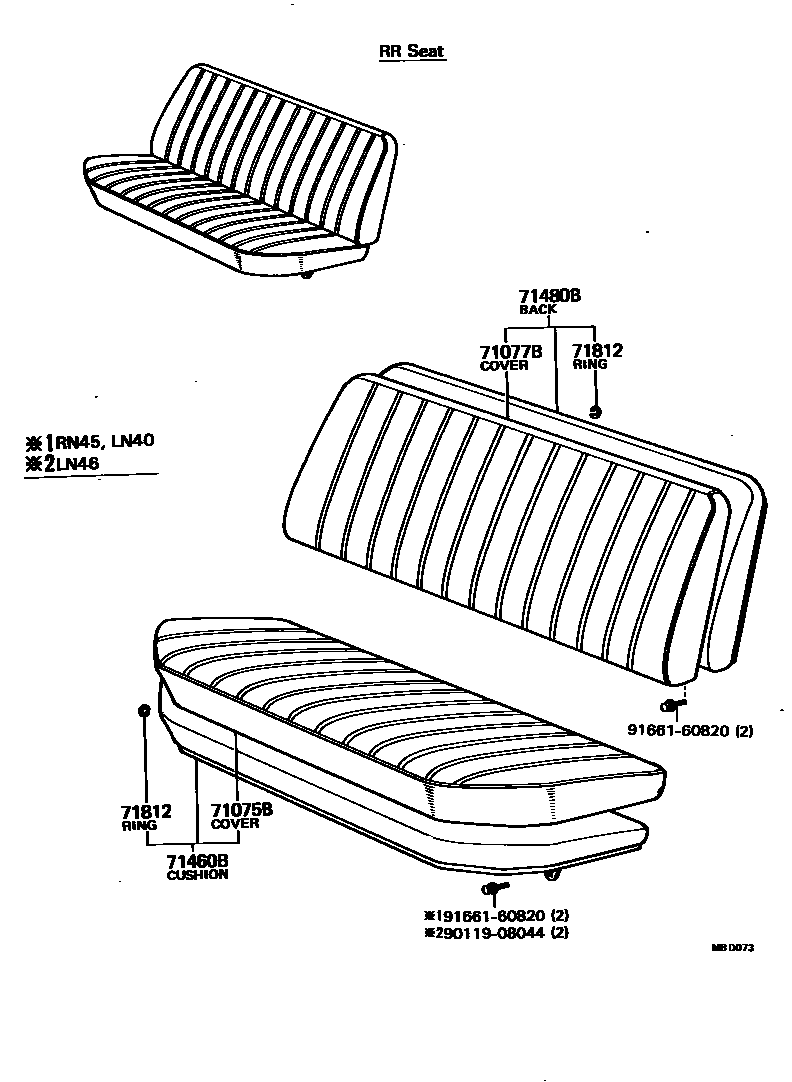

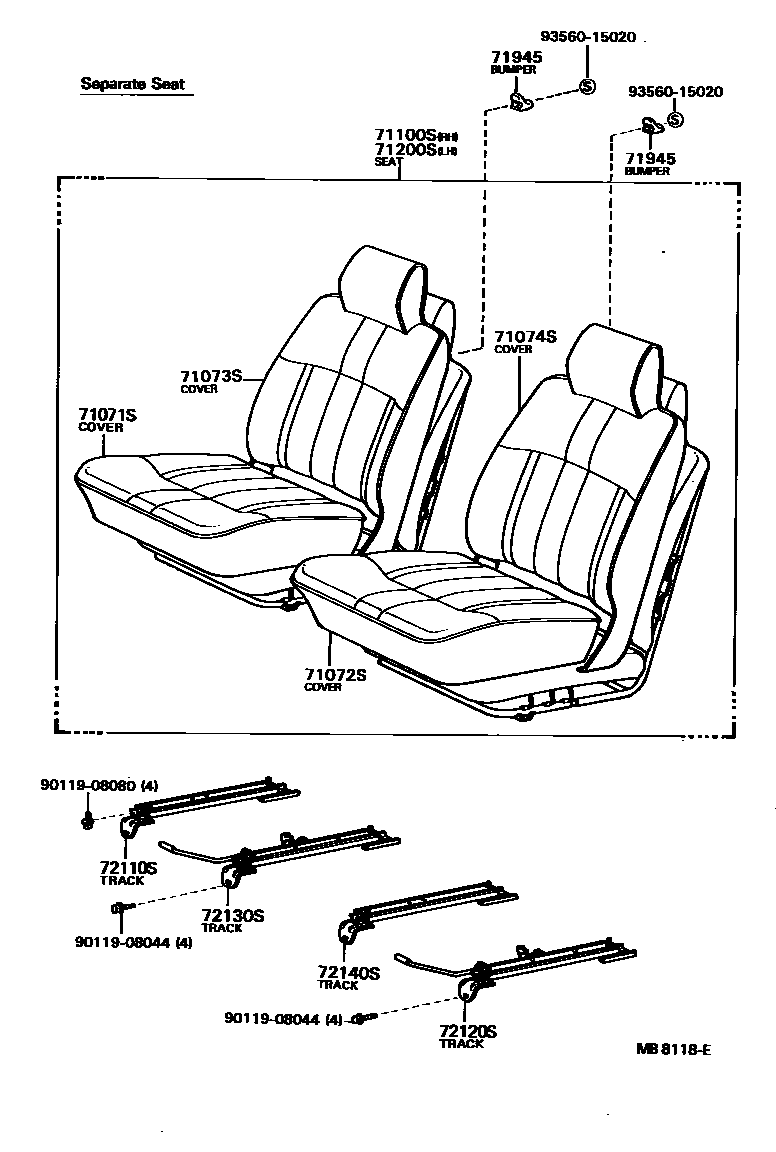

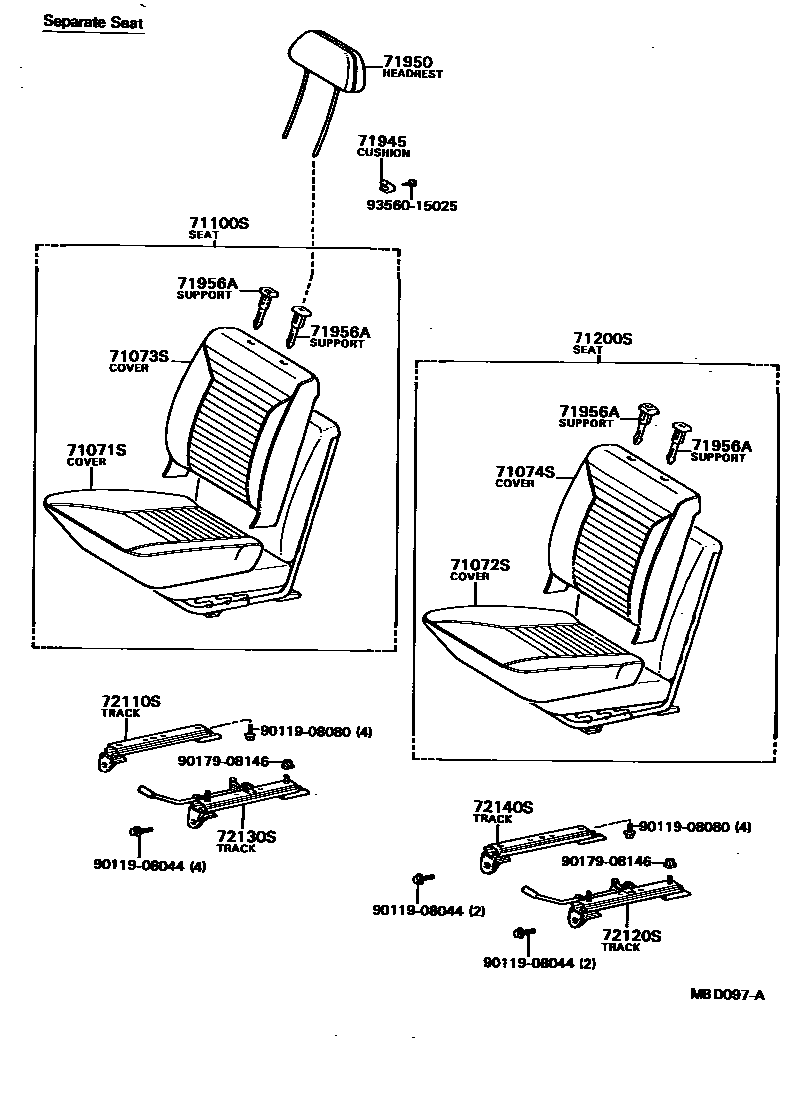

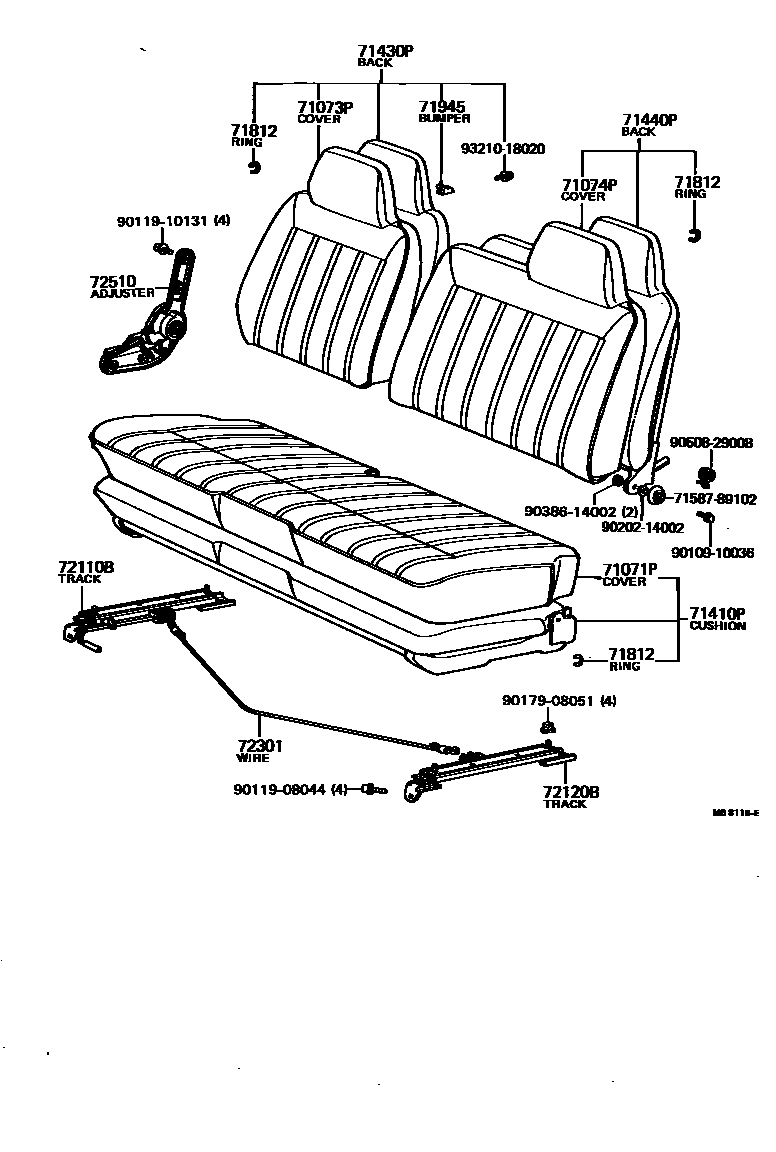

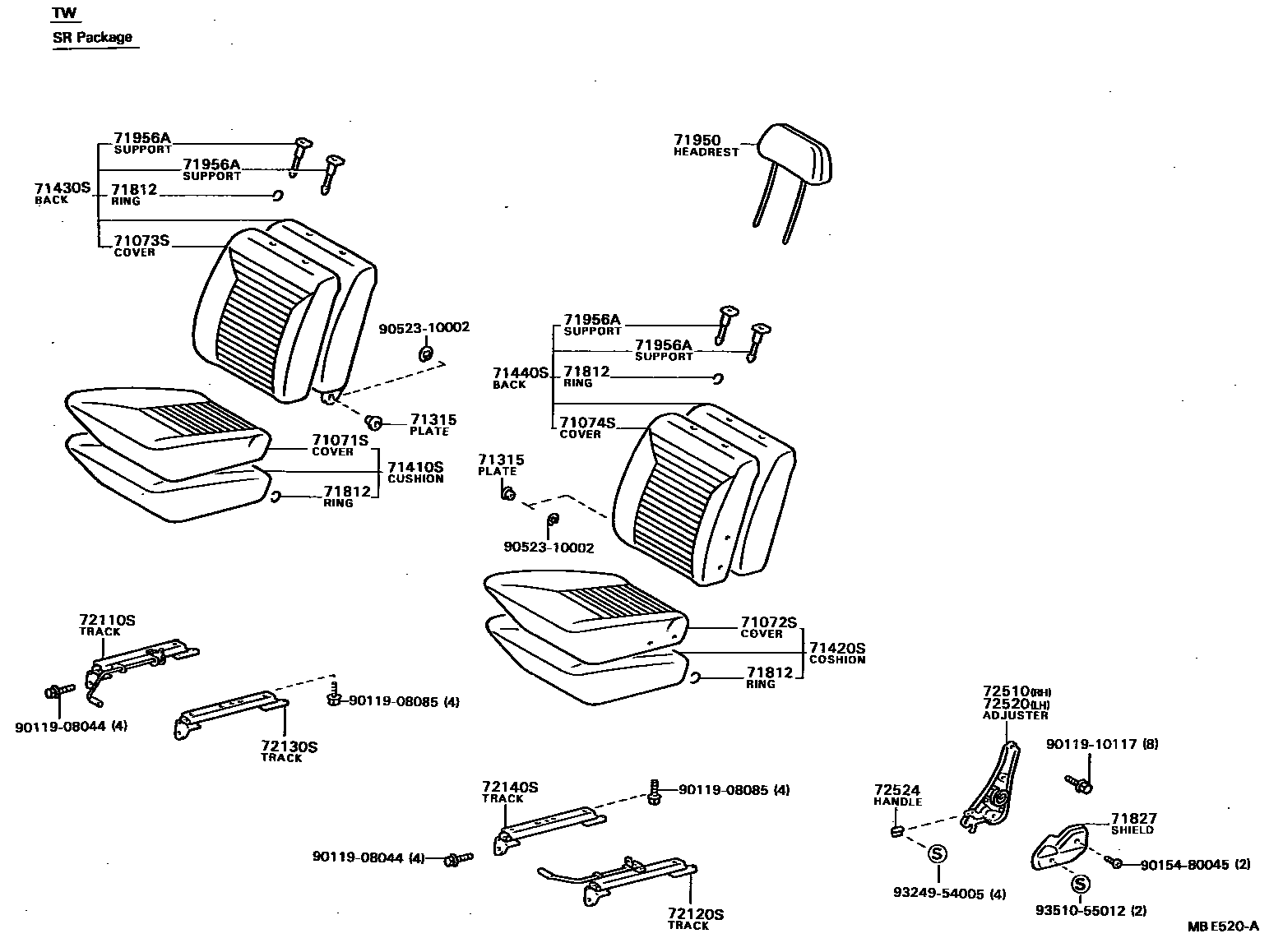

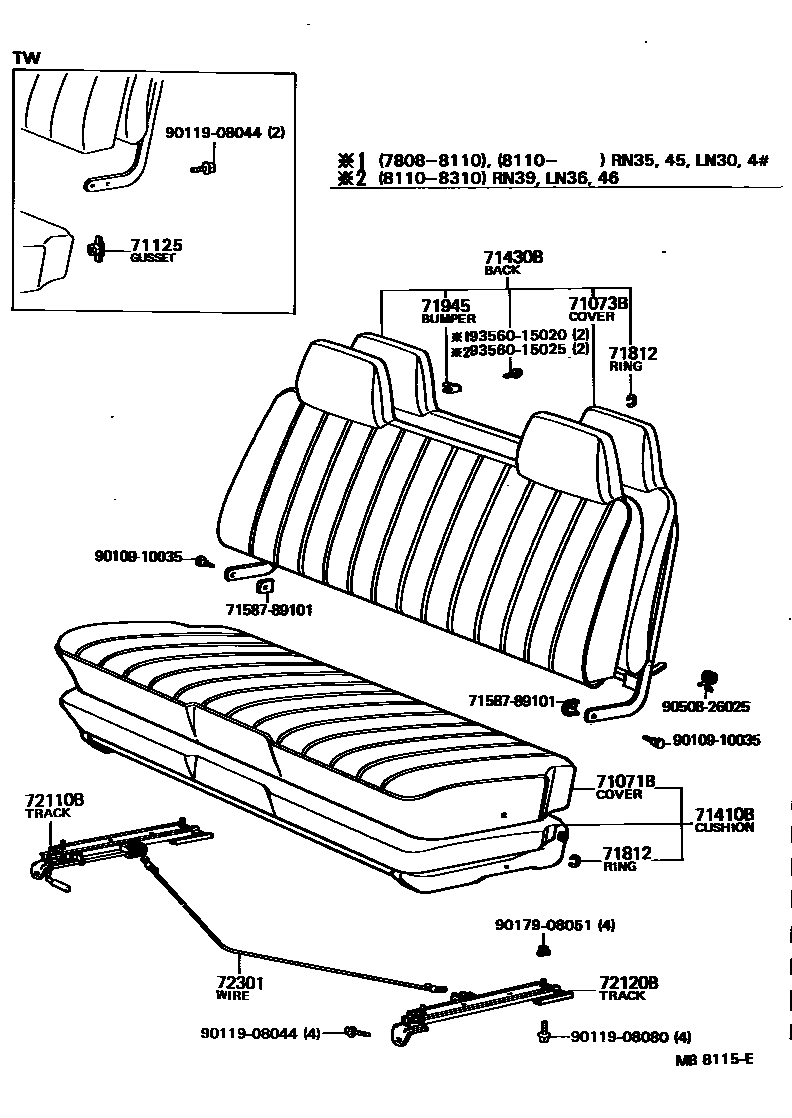

Toyota HILUX 座椅和座椅滑轨 — Figure 7151
Toyota HILUX EPC diagram 7151, 座椅和座椅滑轨, with 6 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71071S | Front right seat cushion cover (for split seats) | 71071-95144 |
| 71072S | Front left seat cushion cover (for split seats) | 71071-95144 |
| 71073S | Front right seat back cover (for split seats) | 71073-95147 |
| 71074S | Front left seat back cover (for split seats) | 71073-95147 |
| 71125 | Front seat cushion frame gusset | 71125-89101 |
| 71315 | Front seat hinge plate | 71315-89102 |
| 71812 | Clip (for front seat cushion cover) | 90468-18071 |
| 71945 | Seat back limiter | 71739-89101 · 71739-89102 · 71739-89103 · 71739-89105 |
| 72110B | Right seat outer slide rail assembly (for bench seat) | 72110-89130 · 72110-89135 · 72110-95110 |
| 72110S | Right seat outer slide rail assembly (for separate seats) | 72110-89136 · 72110-95112 |
| 72120B | Left side seat outer slide rail assembly (for bench seat) | 72120-89125 · 72120-89130 · 72120-95110 |
| 72120S | Left side seat outer slide rail assembly (for separate seats) | 72120-95112 · 72120-95114 |
| 72130S | Right seat inner slide rail assembly (for separate seats) | 72110-89136 · 72120-89131 |
| 72140S | Left seat inner slide rail assembly (for separate seats) | 72110-89136 |
| 72301 | Seat slide rail balance harness sub-assembly | 72301-89103 · 72301-95110 |
| 72510 | Front right seat backrest tilt adjuster assembly | 72510-89103 · 72510-89105 · 72510-89106 |
| 72520 | Left seat back tilt adjuster assembly | 72520-89102 |
