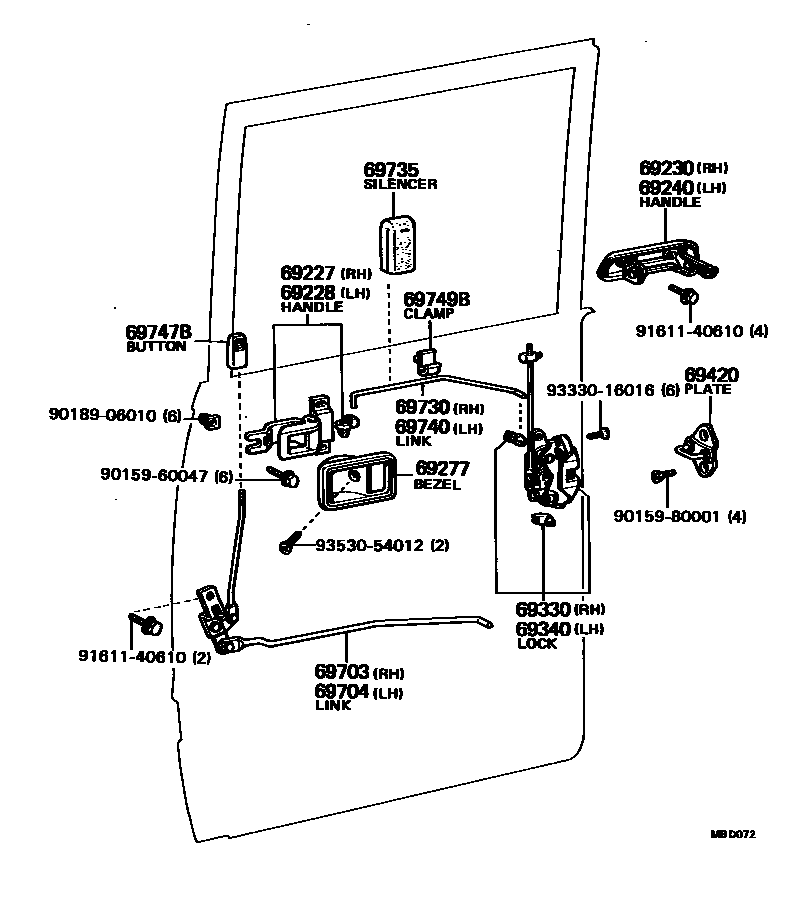

Toyota HILUX 后门锁和后门把手 — Figure 6756
Toyota HILUX EPC diagram 6756, 后门锁和后门把手, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69230 | Right rear door outer handle assembly | 69210-89106 · 69210-89107 |
| 69240 | Left rear door outer handle assembly | 69220-89106 · 69220-89107 |
| 69330 | Right rear door door lock assembly | 69330-89102 |
| 69340 | Left rear door lock assembly | 69340-89102 |
| 69420 | Rear door lock plate assembly | 69410-89103 |
| 69703 | Right rear door lock control link sub-assembly | 69703-89101 |
| 69704 | Left rear door lock control link sub-assembly | 69704-89101 |
| 69730 | Right rear door opening control linkage assembly | 69713-89101 |
| 69735 | Rear door lock link silencer | 69759-89102 · 69759-95110 |
| 69740 | Left rear door opening control linkage assembly | 69714-89101 |
| 69749B | Rear door lock link clamp | 69749-12010 · 69749-30020 |
