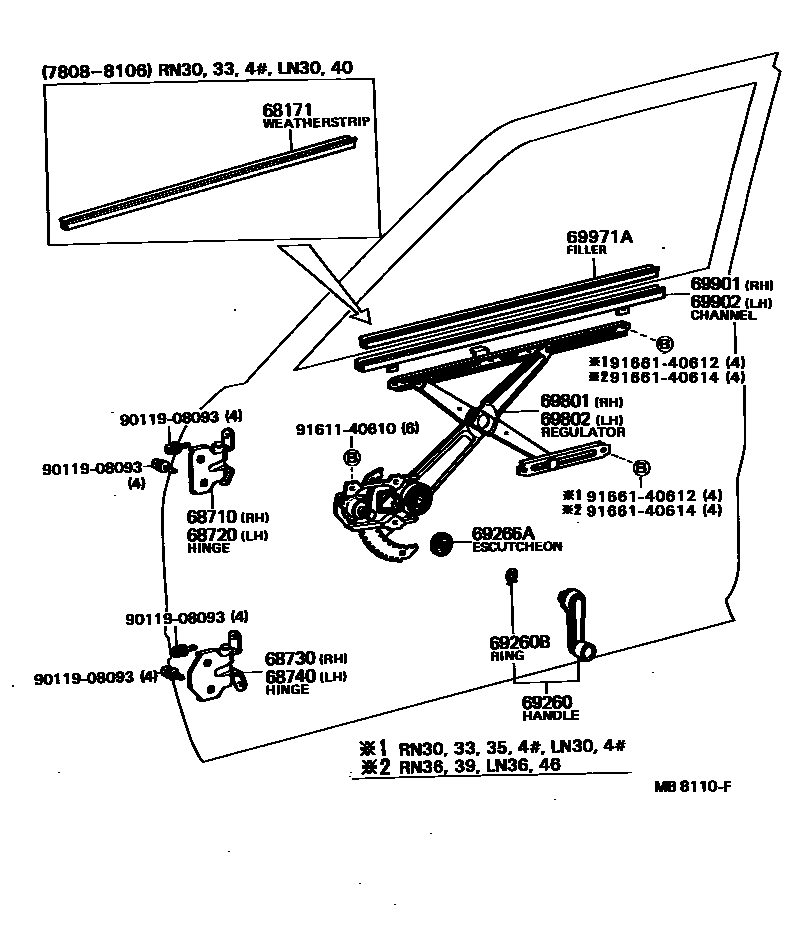

Toyota HILUX 前门车窗升降器和合页 — Figure 6754
Toyota HILUX EPC diagram 6754, 前门车窗升降器和合页, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68171 | Front door glass groove seal strip | 68173-89102 |
| 68710 | Right front door upper hinge assembly | 68710-14020 |
| 68720 | Left front door upper hinge assembly | 68720-14020 |
| 68730 | Right front door lower hinge assembly | 68730-14020 |
| 68740 | Left front door lower hinge assembly | 68740-14020 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01002 |
| 69266A | Door window lift handle escutcheon (for front doors) | 69266-22010 |
| 69801 | Right front door window lifter sub-assembly | 69801-89105 |
| 69802 | Left front door window lifter sub-assembly | 69802-89105 |
| 69901 | Right front door glass groove sub-assembly | 69901-89105 |
| 69902 | Left front door glass groove sub-assembly | 69901-89105 |
| 69971A | Front door glass channel filler | 69971-89102 · 69971-95110 |
