Toyota HILUX 后车身悬置 — Figure 6558

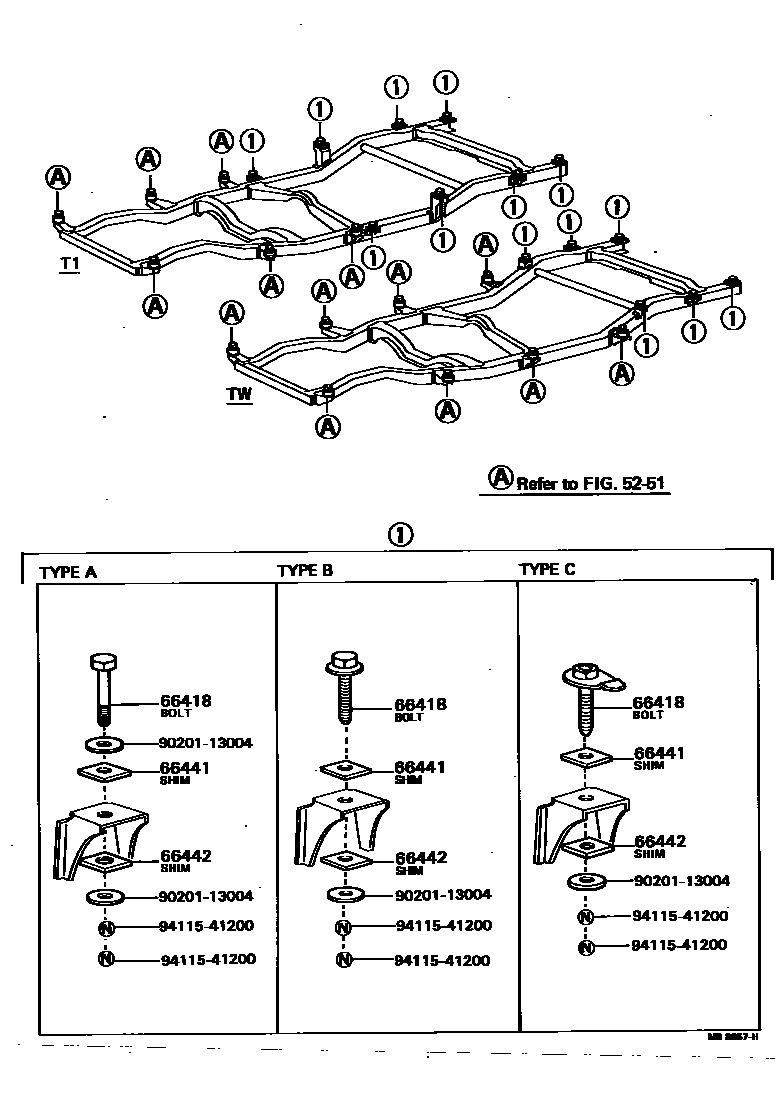

Toyota HILUX EPC diagram 6558, 后车身悬置, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 66418 | mounting bolts | 64189-89101 · 64189-89102 · 90119-12020 · 91165-41250 |
| 66441 | No. 1 mounting gasket | 90950-04019 · 90950-04020 |
| 66442 | No. 2 mounting gasket | 90950-04019 |
