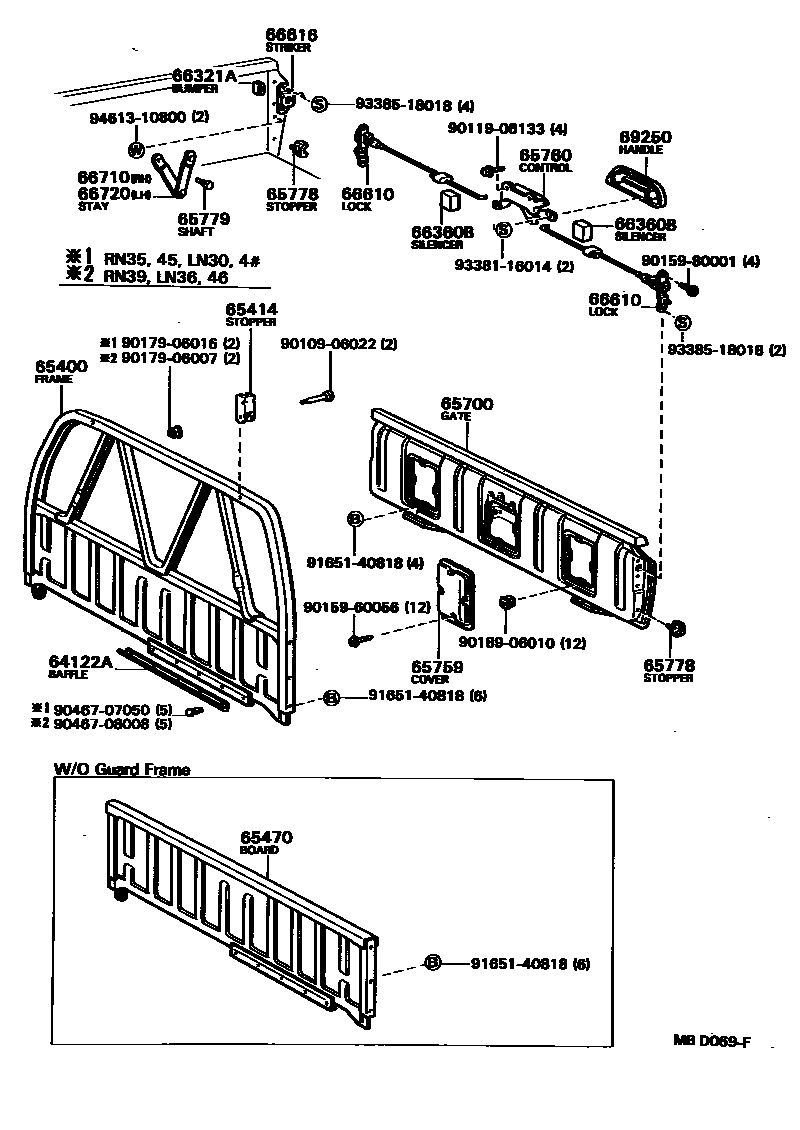

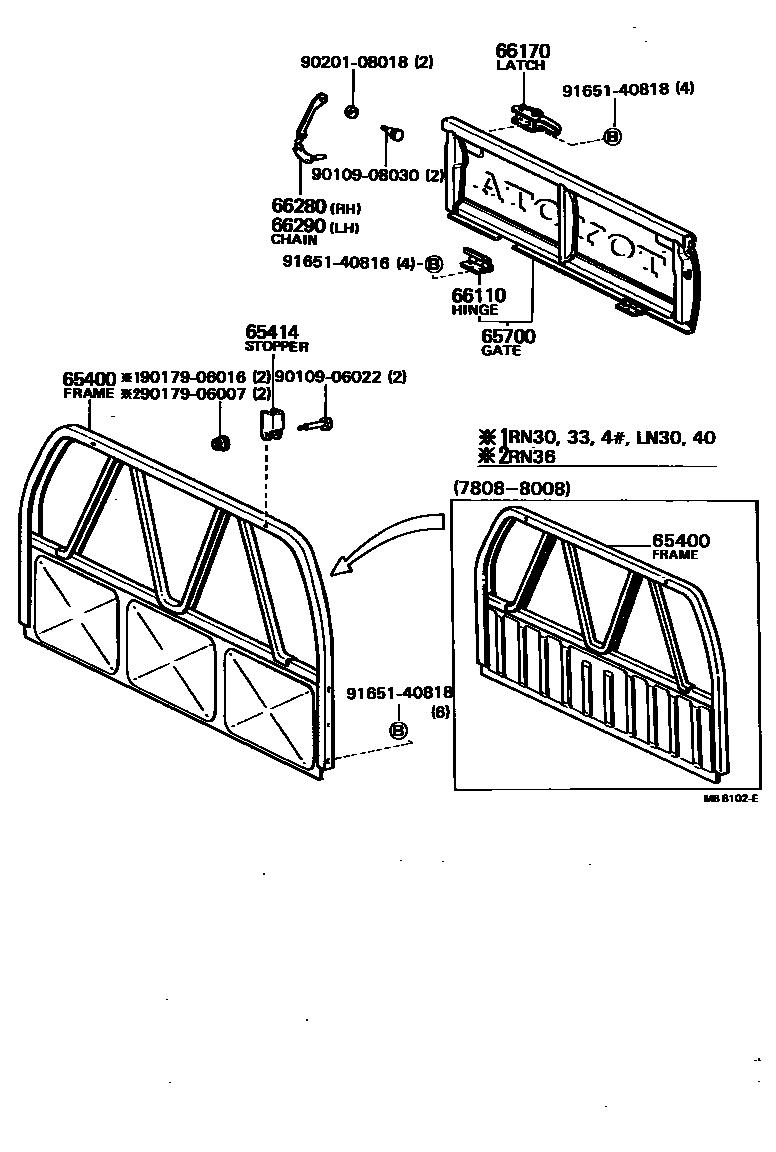

Toyota HILUX 后车身防护架和背门 — Figure 6553
Toyota HILUX EPC diagram 6553, 后车身防护架和背门, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64122A | Rear body dust baffle | 64122-95110 |
| 65400 | Rear body guardrail frame assembly | 65470-89104 · 65470-89109 · 65470-95121 |
| 65414 | guardrail frame stop | 65414-89102 |
| 65470 | Top plate assembly | 65470-95122 |
| 65700 | Rear body back door assembly | 65700-89115 · 65700-89116 · 65700-89121 · 65700-89122 |
| 65759 | Rear door access hole cover | 65759-89101 |
| 65760 | Back door lock control assembly | 65760-89101 · 65760-89102 |
| 65778 | Back door support rod stop | 65778-89102 · 65778-89104 |
| 65779 | Back door upper support rod shaft | 65779-89101 |
| 66110 | Back door hinge assembly | 66110-89102 |
| 66170 | Rear body back door lock bolt assembly | 66170-89104 · 66170-89105 |
| 66280 | Back door right chain assembly | 66280-89105 |
| 66290 | Back door left chain assembly | 66280-89105 |
| 66321A | Railing rubber buffer block | 66321-89107 |
| 66360B | Door lock link silencer | 69759-89105 |
| 66610 | Back door lock assembly | 65780-89101 · 65790-89101 |
| 66616 | Back door latch | 65768-89101 · 65768-89102 |
| 66710 | Back door right bracket assembly | 65770-89101 |
| 66720 | Back door left bracket assembly | 65770-89101 |
