Toyota HILUX 后车身地板和翼子板 — Figure 6552

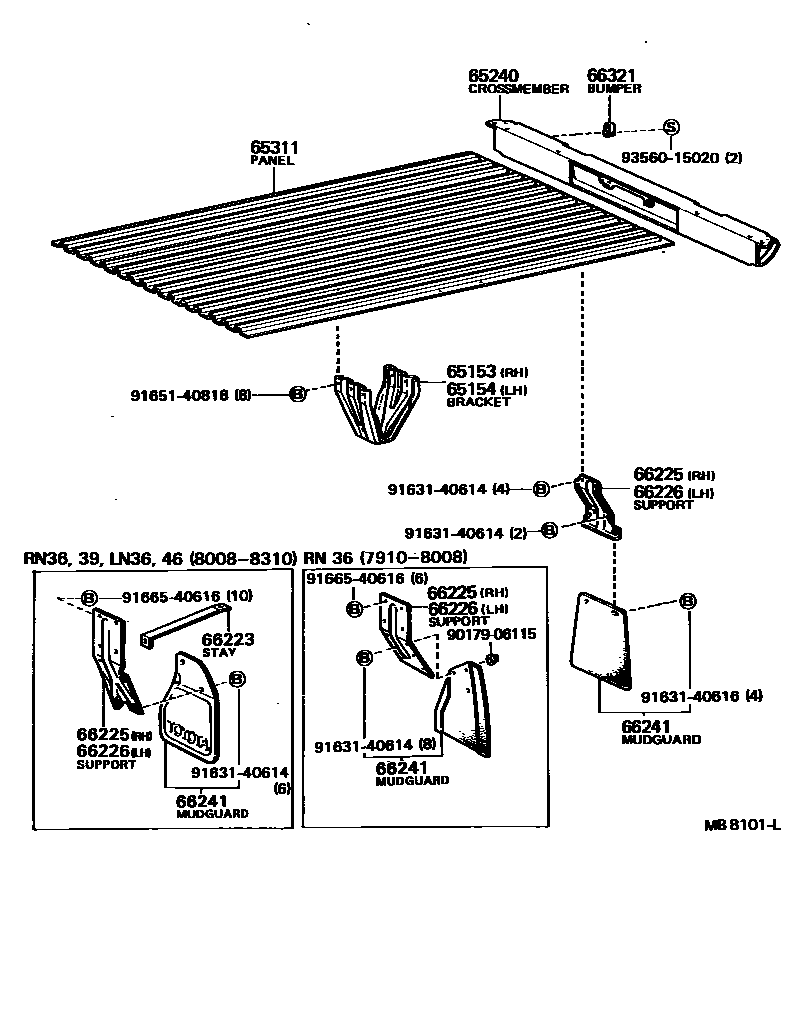

Toyota HILUX EPC diagram 6552, 后车身地板和翼子板, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65153 | No. 1 right side mounting bracket | 65103-95111 · 65103-95112 · 65153-89107 |
| 65154 | No. 1 left mounting bracket | 65103-95111 · 65103-95112 · 65153-89107 |
| 65240 | Rear body floor cross member | 65240-89107 · 65240-89113 · 65240-95126 · 65240-95129 |
| 65311 | central floor | 65311-89108 · 65311-89110 · 65311-89111 · 65311-89112 · 65311-89115 |
| 66223 | Rear fender rear panel bracket | 66299-95111 |
| 66225 | Rear fender right bracket | 66225-89103 · 66225-89104 · 76647-95112 · 76647-95117 |
| 66226 | Rear fender left bracket | 66225-89103 · 66225-89104 · 76648-95112 · 76648-95117 |
| 66241 | rear fender | 66241-39015 · 66241-39016 · 76625-39025 · 76625-39026 · 76626-39025 · 76626-39026 |
| 66321 | Railing rubber buffer block | 65739-89101 · 66321-89106 |
