Toyota HILUX 车顶内衬和消声垫 — Figure 6452

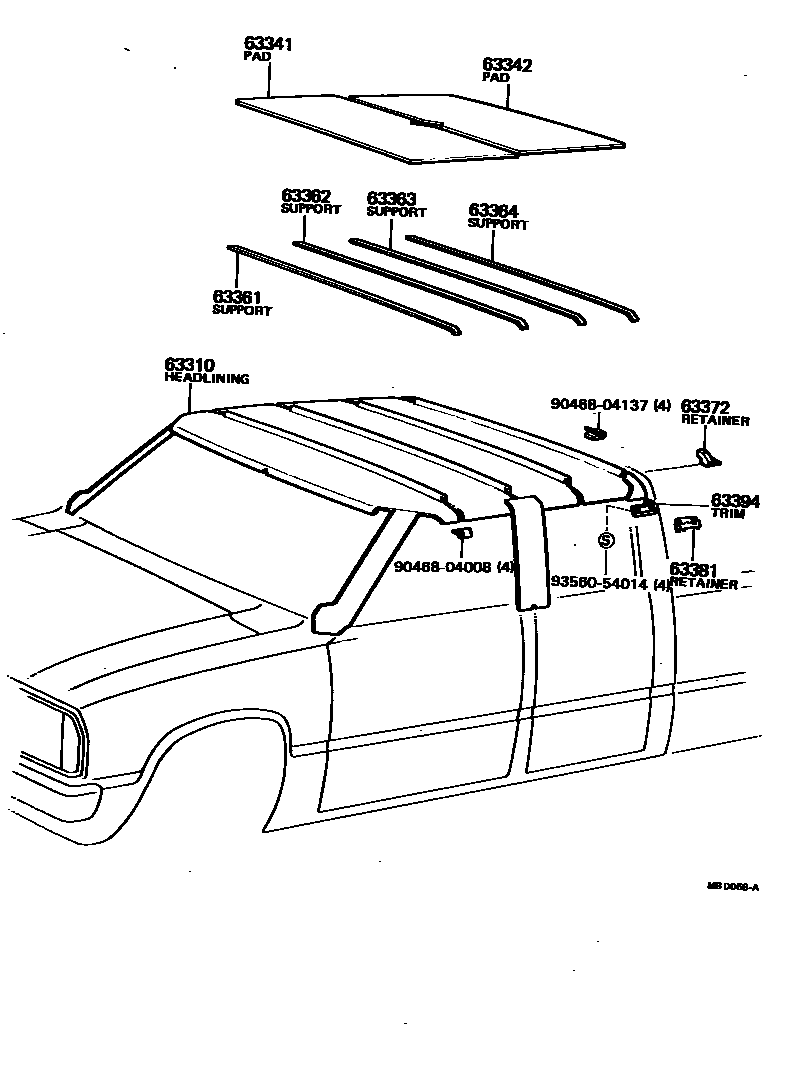

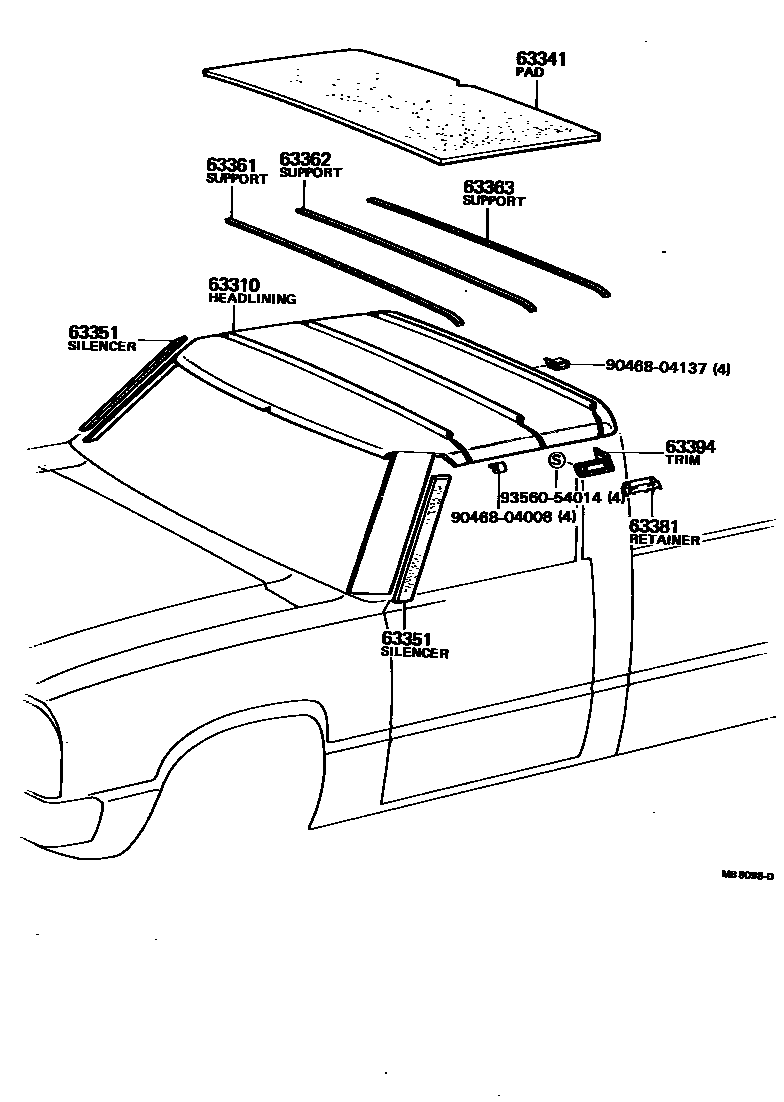

Toyota HILUX EPC diagram 6452, 车顶内衬和消声垫, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-89107 · 63341-89108 |
| 63342 | No. 2 roof muffler pad | 63341-89109 |
| 63351 | Roof side silencers | 63351-89101 |
| 63361 | Headlining bracket No. 1 | 63361-89101 · 63361-89105 |
| 63362 | Headlining bracket No. 2 | 63361-89101 · 63361-89106 |
| 63363 | No. 3 roof lining bracket | 63361-89101 · 63361-89102 |
| 63364 | No. 4 roof lining bracket | 63361-89104 |
| 63372 | Lining bracket fixings | 63371-89101 · 63374-89101 |
| 63381 | Front lining fastener | 63381-89101 · 63381-89102 · 63381-95110 · 63381-95111 |
