Toyota HILUX 后通风装置和车顶通风装置 — Figure 6155

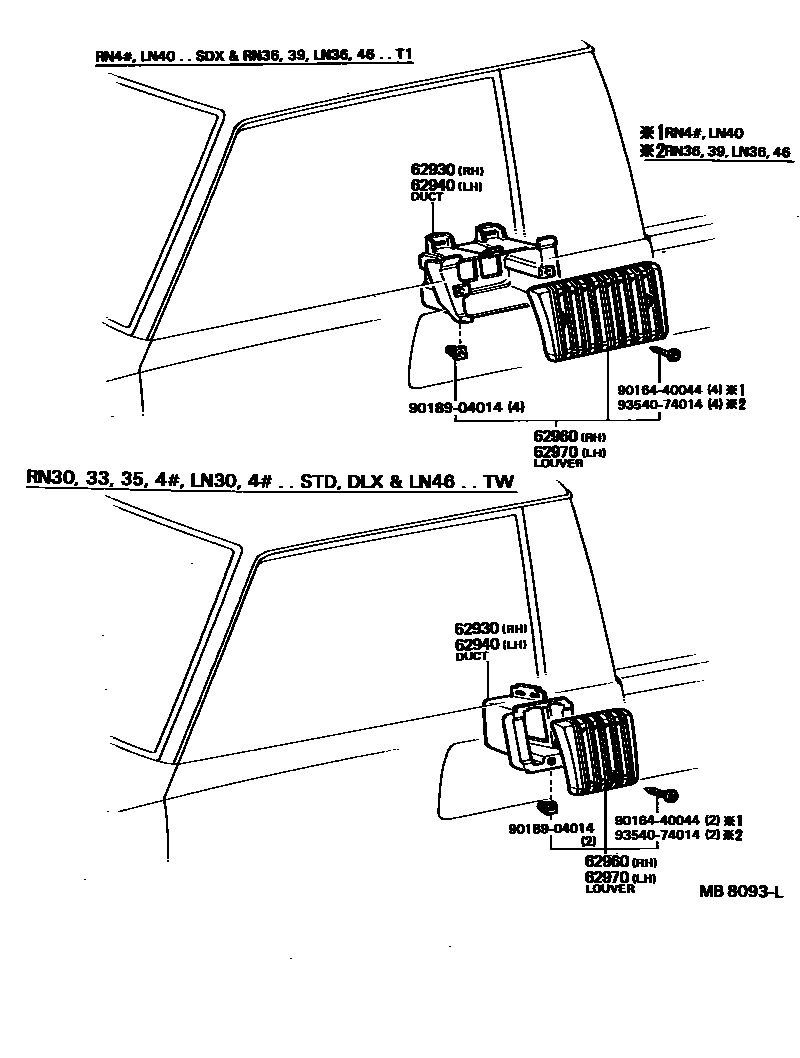

Toyota HILUX EPC diagram 6155, 后通风装置和车顶通风装置, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62930 | Ventilation duct assembly on the right side of the roof | 62930-89104 · 62930-89105 |
| 62940 | Roof left ventilation duct assembly | 62940-89103 · 62940-89104 |
| 62960 | Roof right ventilation grille assembly | 62951-39035 · 62951-39055 · 62951-39065 · 62951-39075 · 62951-39085 |
| 62970 | Roof left ventilation grille assembly | 62952-39035 · 62952-39055 · 62952-39065 · 62952-39075 · 62952-39085 |
