Toyota HILUX 侧梁 — Figure 6151

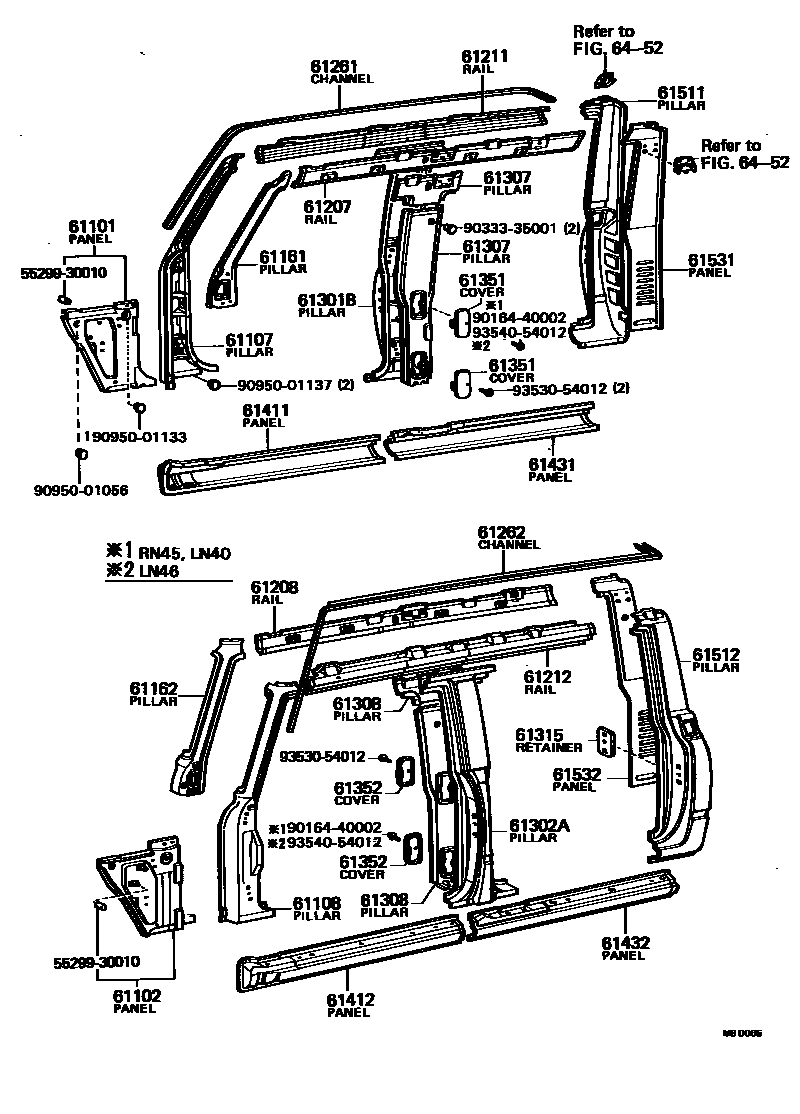

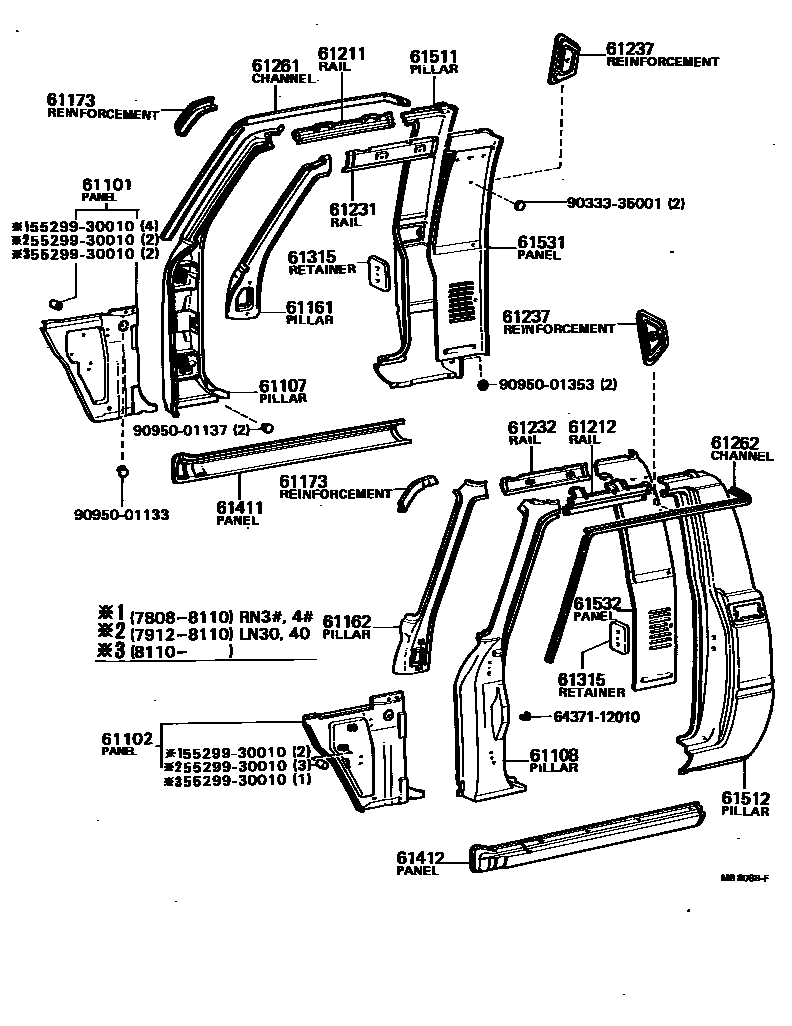

Toyota HILUX EPC diagram 6151, 侧梁, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61101 | Right front wall side panel sub-assembly | 61101-89116 · 61101-89117 · 61101-89122 |
| 61102 | Left front wall side panel sub-assembly | 61102-89113 · 61102-89118 · 61102-89122 · 61102-95112 · 61102-95115 |
| 61107 | Right body outer front pillar sub-assembly | 61027-89101 · 61027-89102 · 61027-89104 · 61027-89105 |
| 61108 | Left body outer front pillar sub-assembly | 61028-89101 · 61028-89102 · 61028-89104 · 61028-89105 |
| 61161 | Right upper body inner front pillar | 61161-89105 |
| 61162 | Left side inner front upper pillar | 61162-89105 |
| 61173 | Reinforcements on the front pillars inside the vehicle body | 61173-89101 · 61174-89101 |
| 61207 | Right center roof inner longitudinal beam sub-assembly | 61231-89108 |
| 61208 | Left center roof inner longitudinal beam sub-assembly | 61232-89108 |
| 61211 | Roof right outer longitudinal beam | 61211-89103 · 61211-89104 |
| 61212 | Roof left outer longitudinal beam | 61212-89103 · 61212-89104 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-89107 · 61231-95111 |
| 61232 | Roof left inner longitudinal beam | 61232-89107 · 61232-95111 |
| 61237 | Safety strap anchor reinforcement | 61766-89101 · 61766-89102 |
| 61261 | Drainage channel on the right side of the roof | 61261-89102 · 61261-89103 · 61261-89104 |
| 61262 | Drainage channel on the left side of the roof | 61262-89102 · 61262-89103 · 61262-89104 |
| 61301B | Right body outer center pillar | 61301-89102 |
| 61302A | Left body outer center pillar | 61302-89102 |
| 61307 | Right body inner center pillar sub-assembly | 61341-89101 · 61343-89101 |
| 61308 | Left body inner center pillar sub-assembly | 61342-89101 · 61344-89101 |
| 61315 | Door latch plate fixing parts | 61309-89101 |
| 61351 | Right body inner center pillar cover | 62429-89101 |
| 61352 | Left body inner center pillar cover | 62429-89101 |
| 61411 | Right door outer sill panel | 61411-89104 |
| 61412 | Left door outer sill panel | 61412-89104 |
| 61431 | Right rear door outer sill panel | 61431-89101 |
| 61432 | Left rear door outer sill panel | 61432-89101 |
| 61511 | Right side locking post | 61511-89106 · 61511-89107 · 61511-89122 |
| 61512 | Left side locking post | 61512-89110 · 61512-89111 · 61512-89112 · 61512-89131 |
| 61531 | Inner right rear corner panel | 61531-89107 · 61531-89108 · 61531-89119 |
| 61532 | Inner left rear corner panel | 61532-89107 · 61532-89108 · 61532-89119 |
