Toyota HILUX 地板隔热垫 — Figure 5853

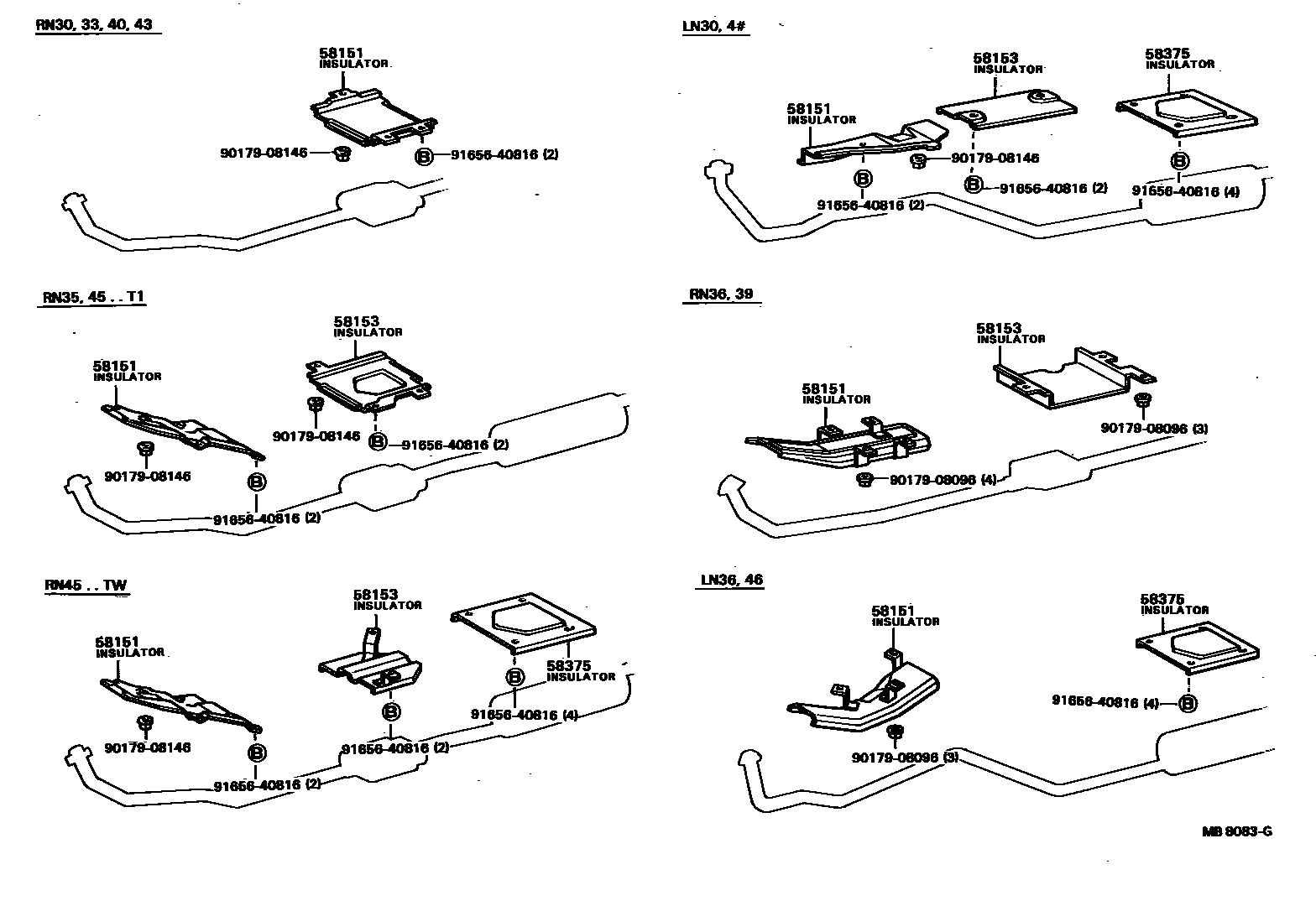

Toyota HILUX EPC diagram 5853, 地板隔热垫, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58041-89102 · 58041-95111 · 58041-95112 · 58041-95113 · 58152-89102 · 58152-89104 |
| 58153 | Front floor insulation mat No. 2 | 58041-89103 · 58152-89107 · 58152-95114 · 58153-89101 · 58153-89102 |
| 58375 | Rear Floor Insulating Mat No. 1 | 58322-89101 |
