Toyota HILUX 前地板和前地板梁 — Figure 5851

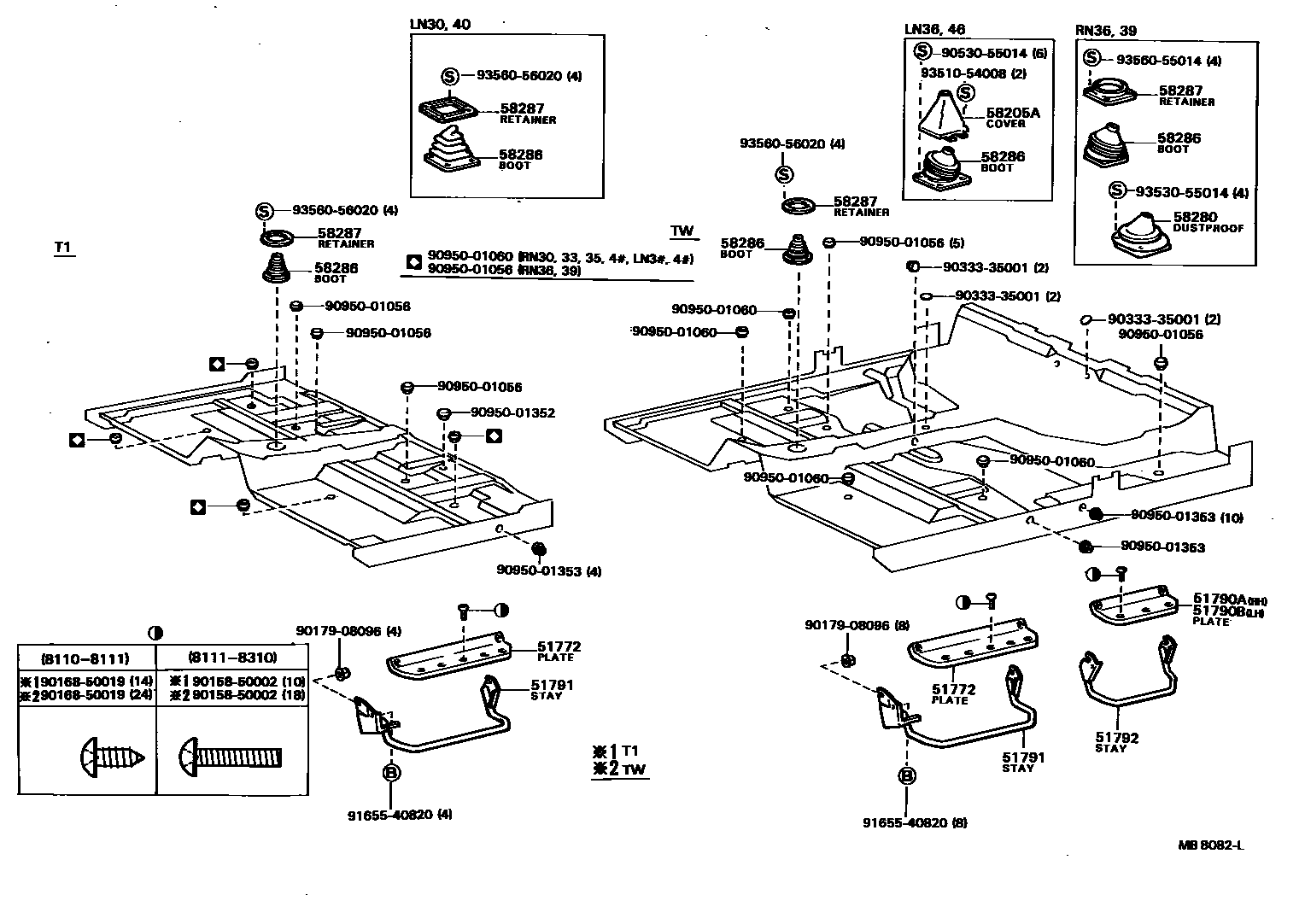

Toyota HILUX EPC diagram 5851, 前地板和前地板梁, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51772 | running board | 51771-95110 · 51771-95111 |
| 51790A | Right rear running board lining sub-assembly | 51772-95110 · 51772-95111 |
| 51790B | Left rear running board lining sub-assembly | 51772-95110 · 51772-95111 |
| 51791 | running board stay | 51705-95110 · 51705-95111 · 51705-95112 · 51705-95113 · 51706-95110 · 51706-95111 · 51706-95112 · 51706-95113 |
| 51792 | No. 2 footboard lining stay | 51707-95110 · 51707-95111 · 51708-95110 · 51708-95111 |
| 58205A | Shift lever dust cover sub-assembly | 58205-95112 |
| 58280 | Transfer case control lever dustproof parts assembly | 58285-95111 |
| 58286 | No. 1 shift lever dust cover | 58209-95111 · 58286-89103 · 58286-89106 · 58286-89108 · 58286-89109 · 58286-95110 |
| 58287 | Shift lever dust cover retaining ring | 33574-89102 · 58287-89102 · 58287-89103 · 58287-89104 · 58287-95110 |
