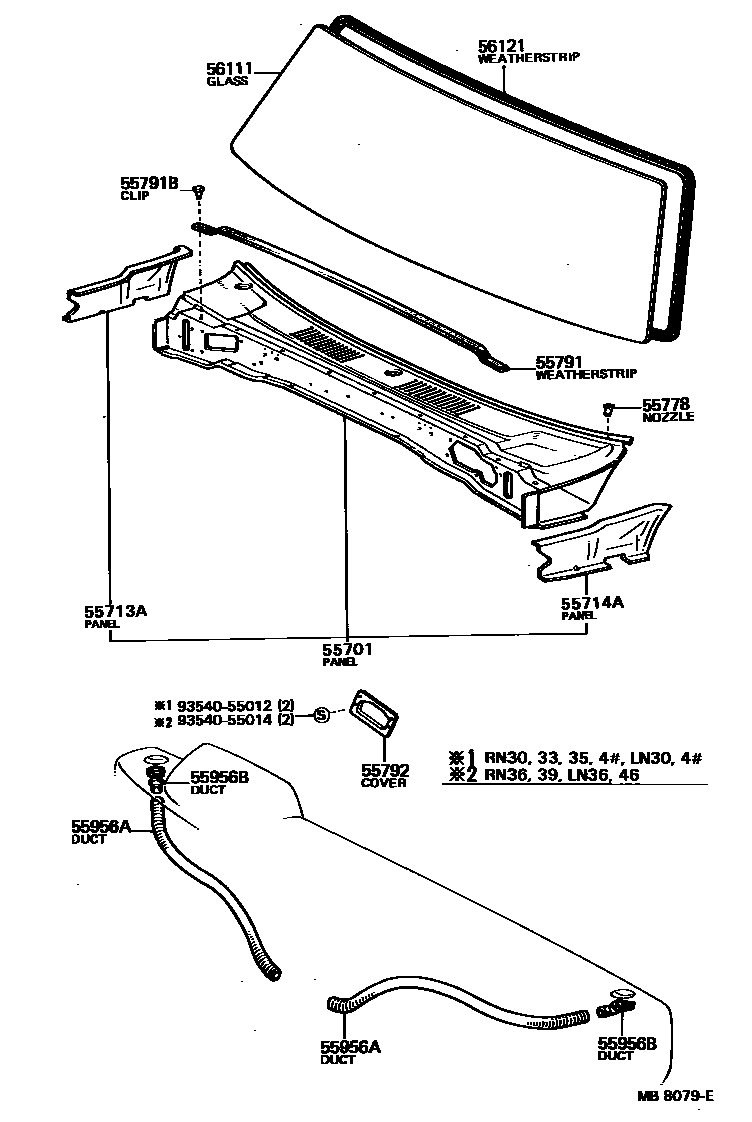

Toyota HILUX 前围板和挡风玻璃 — Figure 5553
Toyota HILUX EPC diagram 5553, 前围板和挡风玻璃, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55701 | Front apron sub-assembly | 55700-89101 · 55700-89103 · 55700-89108 · 55700-89109 · 55700-95110 · 55700-95120 · 55700-95121 |
| 55713A | Right front wall upper side panel | 55713-89103 |
| 55714A | Left front wall upper side panel | 55714-89103 |
| 55778 | Front water pumping device nozzle | 55798-89102 |
| 55791 | Sealing strip from engine cover to cowl upper cover | 53383-89104 |
| 55791B | Clamp (for sealing strip from engine cover to cowl upper cover) | 90467-08008 |
| 55792 | Wiper motor access hole cover | 55793-89105 |
| 56111 | windshield | 56111-89114 · 56111-89115 · 56111-89119 |
| 56121 | windshield seal | 56121-89111 · 56121-89112 |
