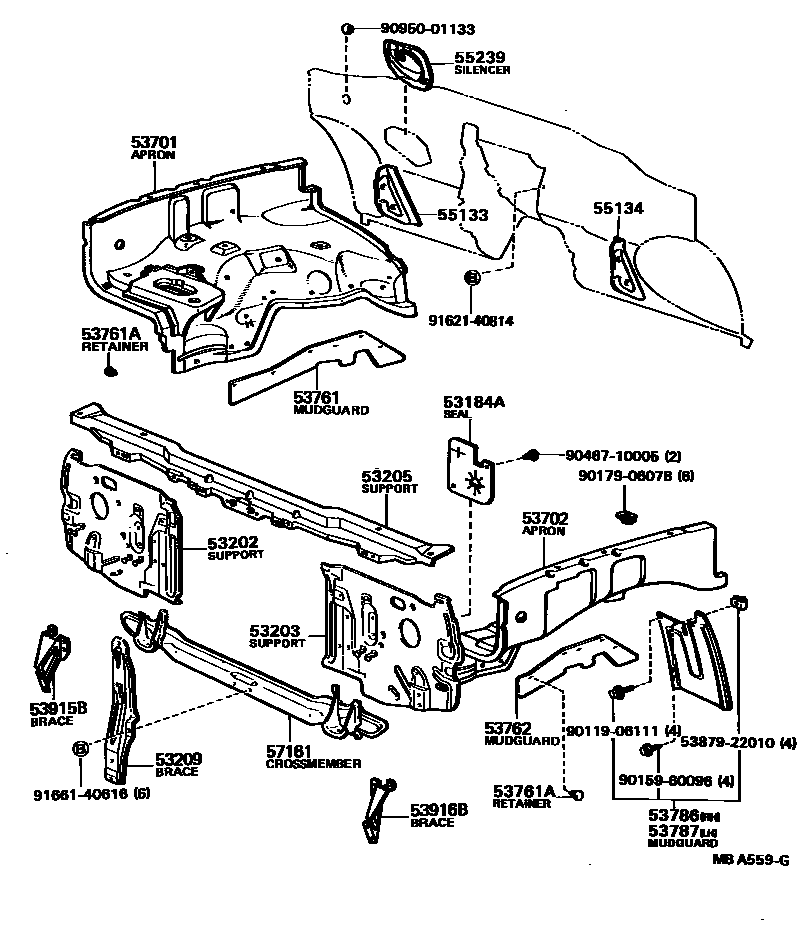

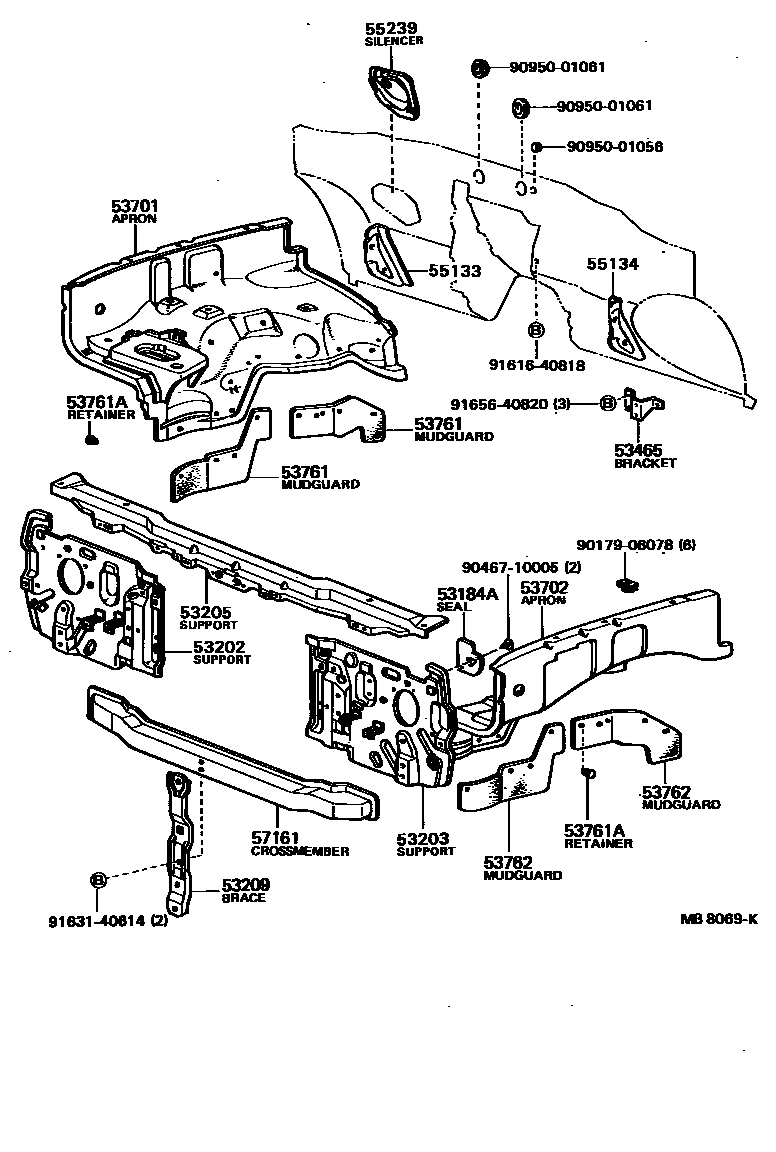

Toyota HILUX 前翼子板挡泥板和前围板 — Figure 5355
Toyota HILUX EPC diagram 5355, 前翼子板挡泥板和前围板, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53184A | Left headlight cover seal | 53184-89101 · 53184-89102 |
| 53202 | Radiator right side bracket sub-assembly | 53202-89109 · 53202-89113 · 53202-95112 · 53202-95117 |
| 53203 | Radiator left bracket sub-assembly | 53203-89109 · 53203-89114 · 53203-89118 · 53203-95110 · 53203-95119 · 53203-95124 |
| 53205 | Radiator upper bracket sub-assembly | 53205-89108 · 53205-89109 · 53205-89110 · 53205-89114 · 53205-89115 |
| 53209 | Engine cover lock bracket sub-assembly | 53217-89105 · 53217-89106 · 53217-95110 |
| 53465 | Cleaner water tank bracket | 74465-89102 |
| 53701 | Right front fender fender sub-assembly | 53701-89115 · 53701-89117 · 53701-89118 · 53701-95111 · 53701-95123 · 53701-95128 · 53701-95129 |
| 53702 | Left front fender fender sub-assembly | 53702-89132 · 53702-89150 · 53702-89156 · 53702-95124 · 53702-95130 · 53702-95138 · 53702-95139 |
| 53761 | right fender | 53736-89105 · 53736-89106 · 53736-95110 · 53737-89102 |
| 53761A | Fixings (for fenders) | 90467-10005 |
| 53762 | left fender | 53736-89105 · 53736-89106 · 53737-89102 · 53737-89103 · 53737-95112 |
| 53915B | Right bracket (baffle to radiator bracket) | 53915-95110 |
| 53916B | Left bracket (baffle to radiator bracket) | 53916-95110 |
| 55133 | Right front fender fender lower fixing plate | 55133-89101 |
| 55134 | Left front fender fender lower fixing plate | 55134-89101 |
| 55239 | Steering column hole cover muffler | 55210-89126 · 55210-89127 · 55210-95112 |
