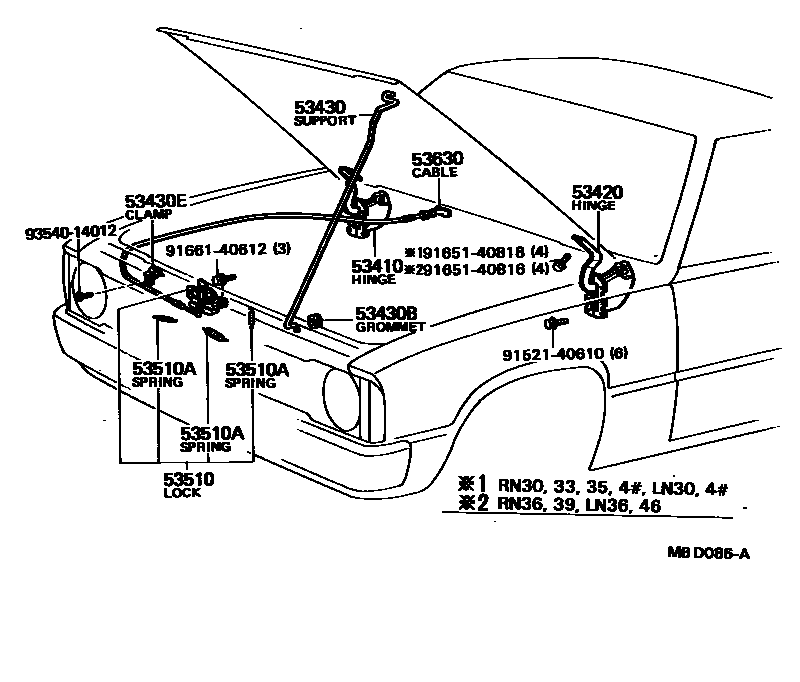

Toyota HILUX 发动机盖锁和铰链 — Figure 5354
Toyota HILUX EPC diagram 5354, 发动机盖锁和铰链, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-89104 |
| 53420 | Engine cover left hinge assembly | 53420-89103 |
| 53430 | Engine cover support rod assembly | 53441-89102 · 53441-89103 |
| 53430B | Gasket (for engine cover support rod) | 90480-15002 |
| 53430E | Engine cover support rod clip | 53455-89101 · 53455-89102 |
| 53510 | Engine cover lock assembly | 53510-89110 |
| 53510A | Tension spring (for hood lock) | 90506-09014 · 90506-09018 · 90506-09025 · 90506-18016 |
| 53630 | Engine hood lock control cable assembly | 53630-89106 · 53630-89108 |
