Toyota HILUX 后保险杠及附件 — Figure 5253

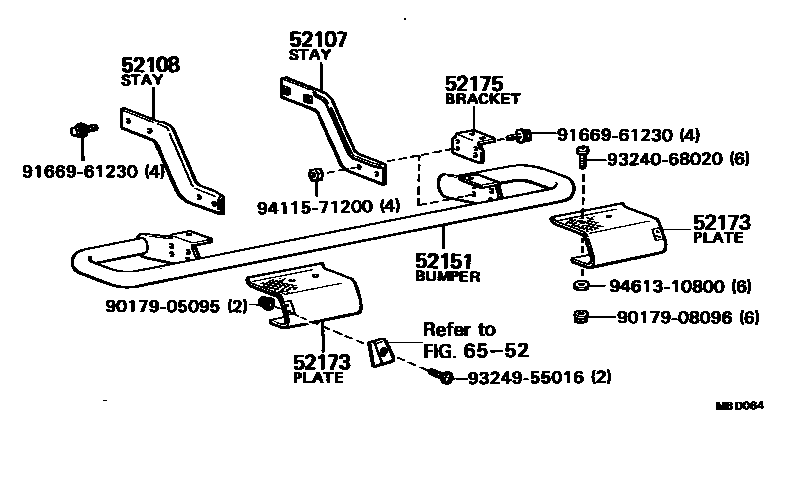

Toyota HILUX EPC diagram 5253, 后保险杠及附件, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52107 | Rear bumper right side stay sub-assembly | 52181-95110 |
| 52108 | Rear bumper left side stay sub-assembly | 52182-95110 |
| 52151 | Rear bumper assembly | 52105-95110 · 52105-95111 |
| 52173 | Rear bumper side fenders | 52163-95110 · 52164-95110 |
| 52175 | Rear bumper arm mounting bracket | 52175-95110 |
