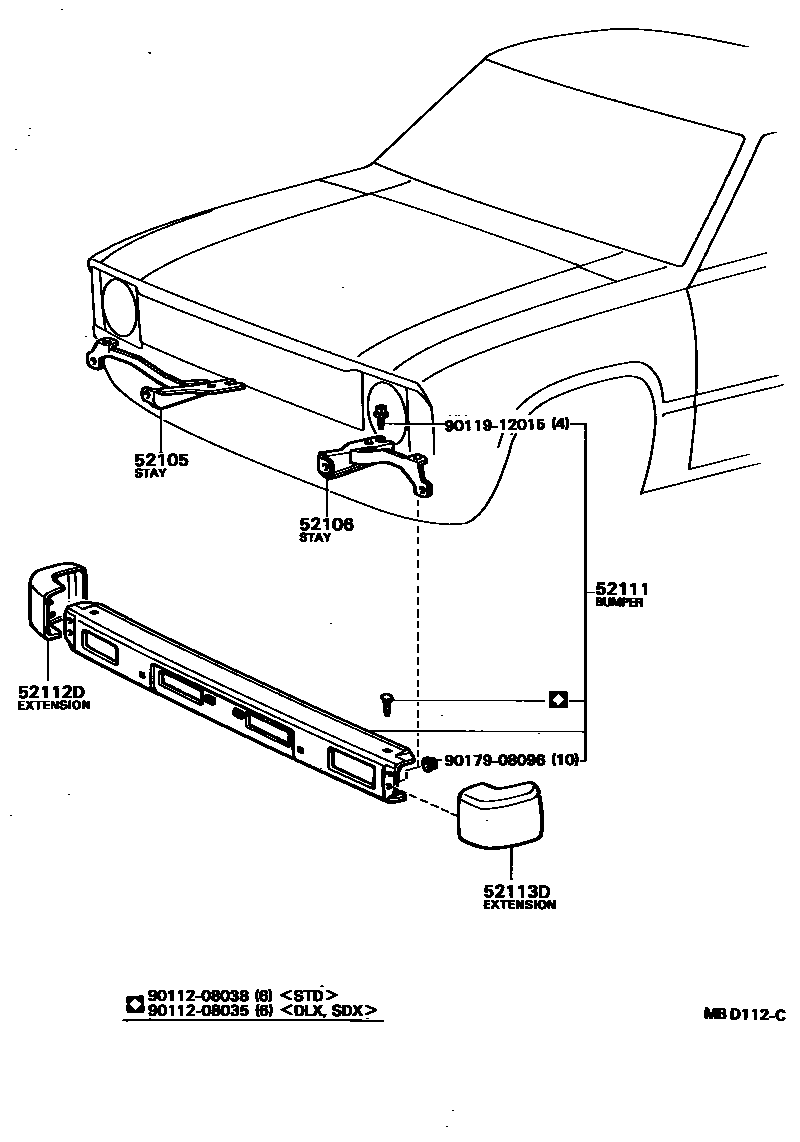

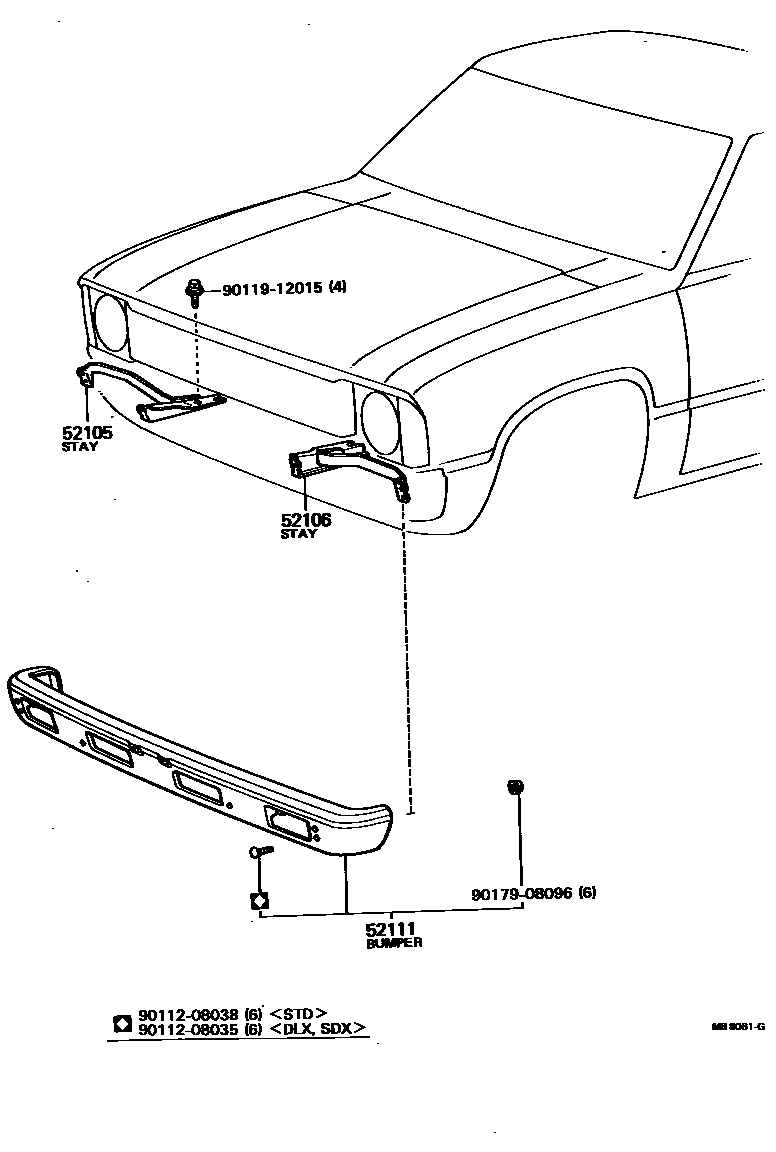

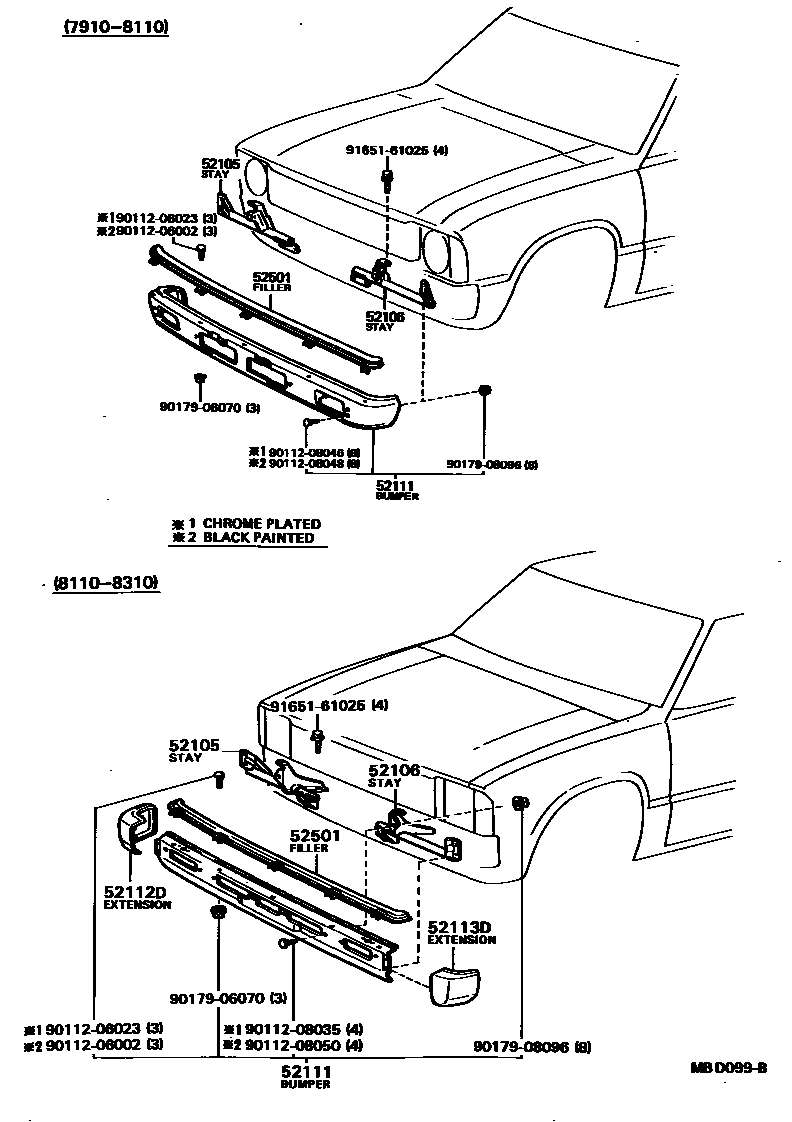

Toyota HILUX 前保险杠及附件 — Figure 5252
Toyota HILUX EPC diagram 5252, 前保险杠及附件, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52105 | Front bumper right side stay sub-assembly | 52011-89102 · 52011-89103 · 52011-95110 · 52011-95113 · 52011-95114 |
| 52106 | Front bumper left stay sub-assembly | 52012-89102 · 52012-89103 · 52012-95110 · 52012-95113 · 52012-95114 |
| 52111 | front bumper assembly | 52111-39055 · 52111-39065 · 52111-39086 · 52111-39096 · 52111-39255 · 52111-39265 · 52111-39355 · 52111-39375 |
| 52112D | Front bumper right extension | 52102-89101 · 52102-95110 · 52102-95111 |
| 52113D | Front bumper left extension | 52103-89101 · 52103-95110 · 52103-95111 |
| 52501 | Front bumper arc filler sub-assembly | 53105-95111 · 53105-95112 |
