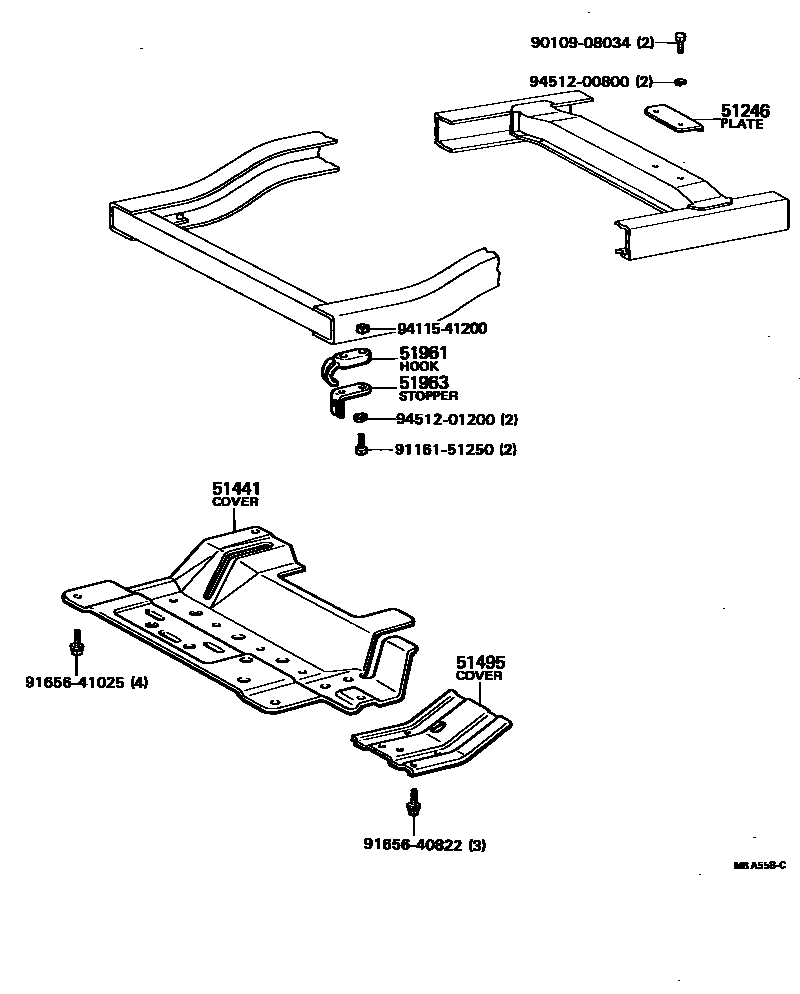

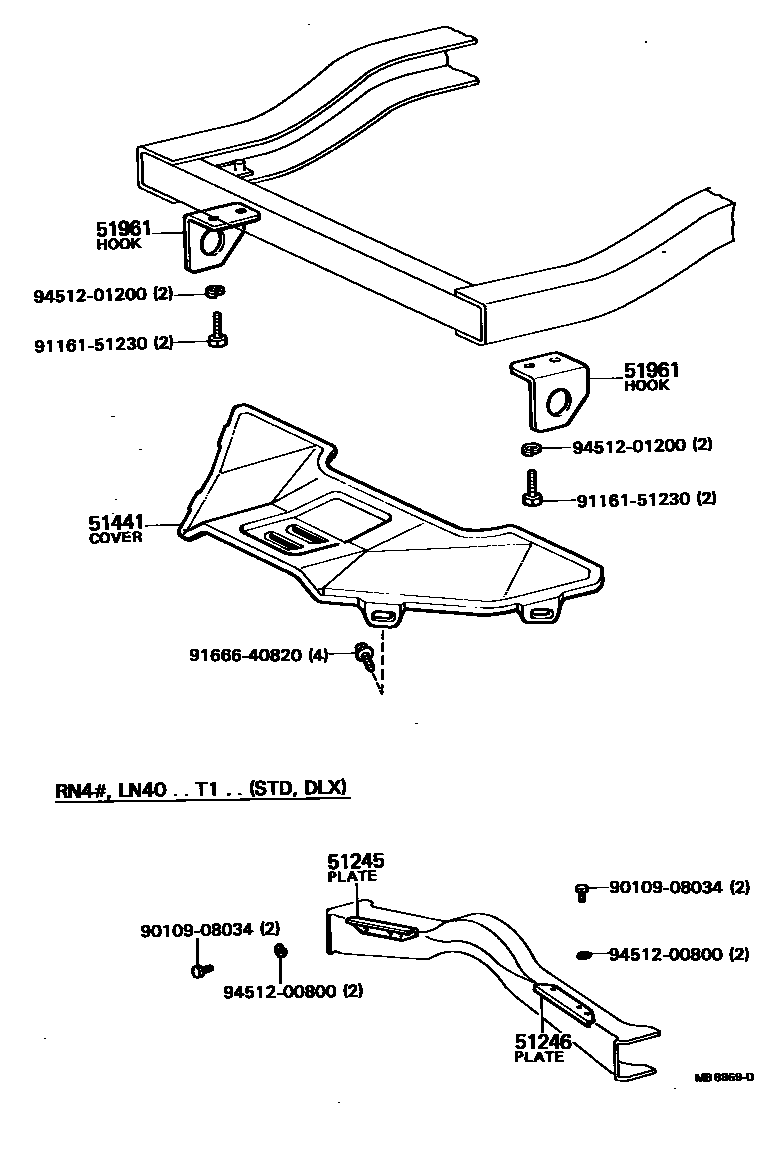

Toyota HILUX 悬架横梁和发动机底罩 — Figure 5152
Toyota HILUX EPC diagram 5152, 悬架横梁和发动机底罩, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51245 | Frame right fender | 51245-89101 |
| 51246 | Frame left fender | 51245-95110 · 51246-89101 |
| 51441 | No. 1 engine bottom cover | 51441-35060 · 51441-35080 · 51441-35081 |
| 51495 | transmission bottom cover | 51447-35010 |
| 51961 | No. 1 hook | 51961-60010 · 51963-35050 · 51964-35040 |
| 51963 | Hook wire block | 51963-35010 |
