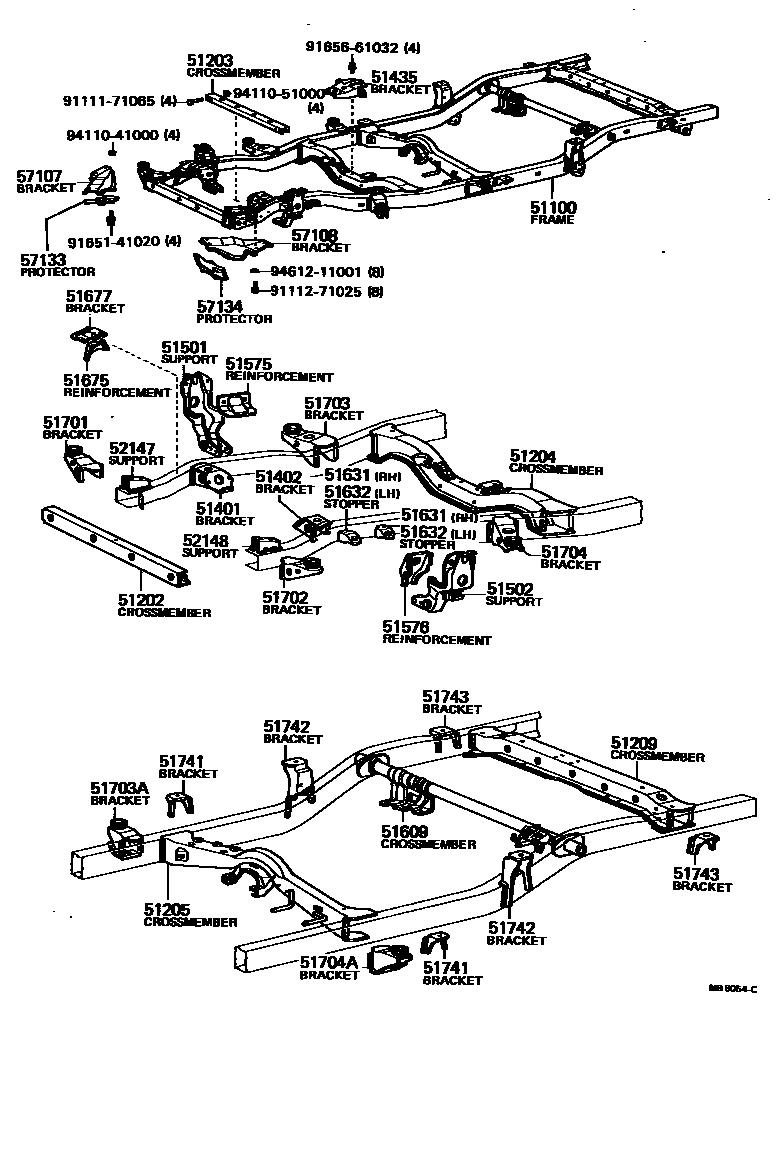

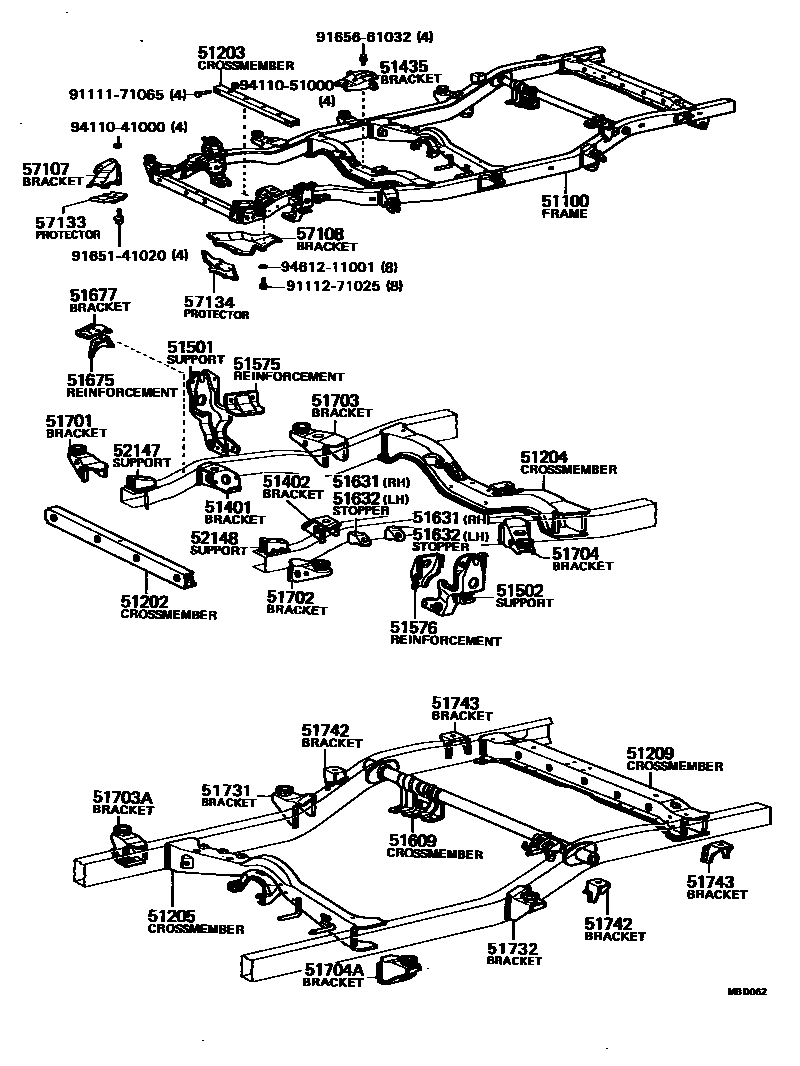

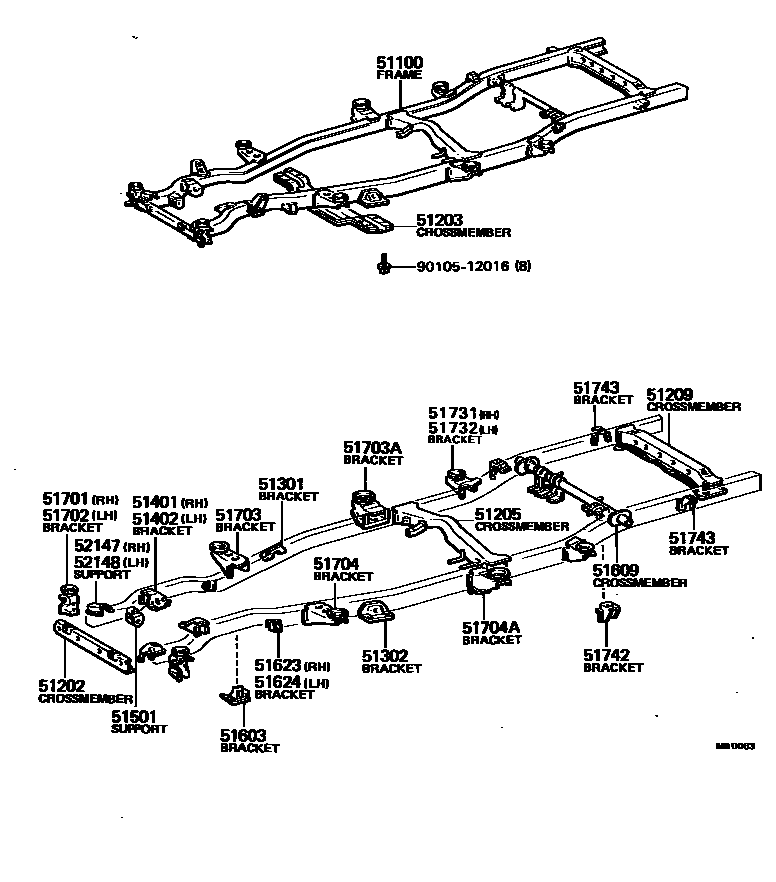

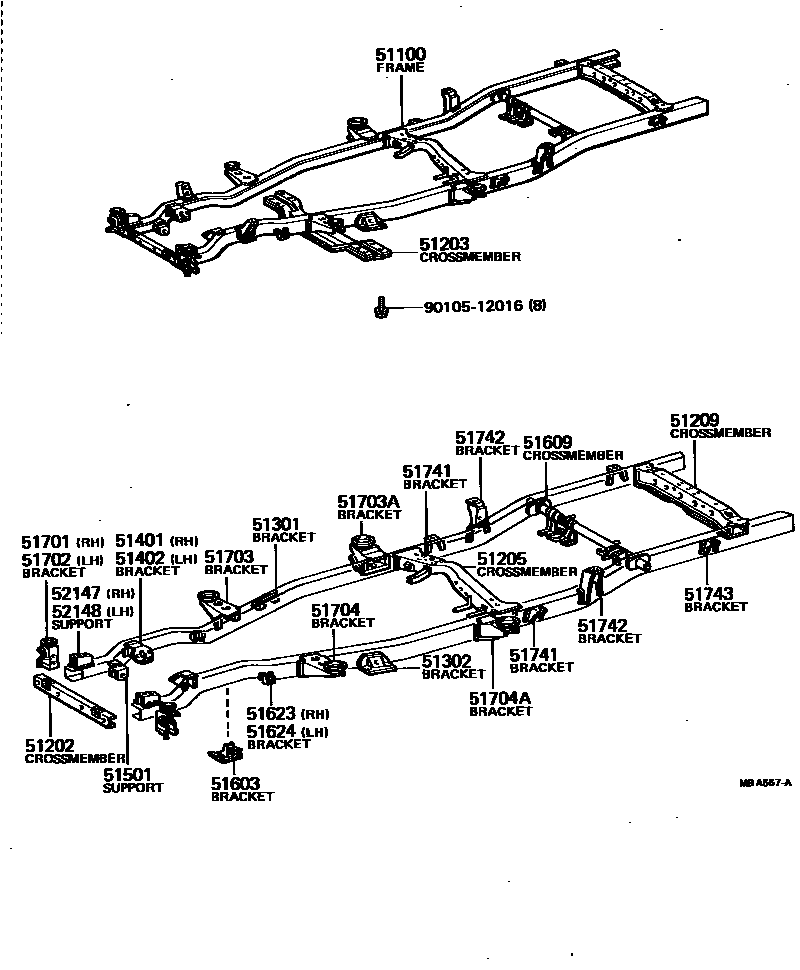

Toyota HILUX 车架 — Figure 5151
Toyota HILUX EPC diagram 5151, 车架, with 4 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51100 | Frame assembly | 51001-35660 · 51001-35661 · 51001-35662 · 51001-35663 · 51001-35710 · 51001-35711 · 51001-35712 · 51001-35713 · 51001-35720 · 51001-35721 · 51001-3D011 · 51001-3D012 · 51001-3D190 · 51001-3D191 · 51001-3D230 · 51001-3D231 · 51001-3D232 · 51001-3D233 · 51001-3D240 · 51001-3D241 · 51001-3D440 · 51001-3D460 · 51001-3D480 · 51001-3D560 · 51001-3D570 |
| 51202 | Frame No. 1 cross member sub-assembly | 51201-35070 · 51201-35080 |
| 51203 | Frame No. 2 cross member sub-assembly | 51202-35110 · 51202-35130 · 51202-35131 · 51202-35151 · 51202-35160 |
| 51204 | Frame No. 3 beam sub-assembly | 51203-35150 · 51203-35200 |
| 51205 | Frame No. 4 beam sub-assembly | 51204-35130 · 51204-35140 · 51204-35151 · 51204-35152 · 51204-35162 · 51204-35180 · 51204-35200 |
| 51209 | Frame No. 8 beam sub-assembly | 51209-35080 · 51209-35081 |
| 51301 | Frame No. 2 crossbeam right side bracket | 51321-35030 |
| 51302 | Frame No. 2 cross member left bracket | 51322-35010 |
| 51401 | Engine right front mounting bracket sub-assembly | 51401-35120 · 51401-35150 · 51401-35160 |
| 51402 | Engine left front mounting bracket sub-assembly | 51402-35120 · 51402-35150 · 51402-35160 |
| 51435 | Engine rear mounting bracket | 51431-35020 · 51431-35030 · 51431-35060 · 51431-35070 |
| 51501 | Right suspension arm bracket sub-assembly | 51501-35010 · 51505-35030 · 51505-35031 |
| 51502 | Left suspension arm bracket sub-assembly | 51502-35010 |
| 51575 | No. 1 suspension arm bracket reinforcement | 51573-35010 |
| 51576 | No. 2 suspension arm bracket reinforcement | 51575-35020 |
| 51603 | Front suspension elastic bracket sub-assembly | 51603-35010 |
| 51609 | Rear shock absorber support beam sub-assembly | 51205-35080 · 51205-35090 |
| 51623 | Right front spring-loaded stop bracket | 51623-35010 |
| 51624 | Left front spring-loaded stop bracket | 51624-35010 |
| 51631 | Right front suspension rebound limiter | 51631-35020 · 51632-35020 |
| 51632 | Left front suspension rebound limiter | 51631-35020 · 51632-35020 |
| 51675 | Steering housing bracket reinforcement | 51675-35070 |
| 51677 | Steering case bracket | 51679-35010 |
| 51701 | Cab suspension No. 1 right side bracket sub-assembly | 51701-35050 · 51701-35060 |
| 51702 | Cab suspension No. 1 left side bracket sub-assembly | 51701-35050 · 51701-35060 |
| 51703 | Cab suspension No. 2 right side bracket sub-assembly | 51703-35010 · 51703-35020 · 51703-35021 |
| 51703A | Cab rear suspension right bracket sub-assembly | 51705-35040 · 51705-35050 |
| 51704 | Cab suspension No. 2 left side bracket sub-assembly | 51703-35010 · 51704-35040 · 51704-35041 |
| 51704A | Cab rear suspension left bracket sub-assembly | 51705-35040 · 51705-35050 |
| 51731 | Cab rear suspension right bracket | 51707-35020 |
| 51732 | Cab rear suspension left bracket | 51708-35020 |
| 51741 | Rear body No. 1 mounting bracket | 51741-35050 |
| 51742 | Body No. 2 mounting bracket | 51742-35040 · 51742-35060 · 51743-35060 · 51743-35070 |
| 51743 | Body No. 3 mounting bracket | 51741-35050 |
| 52147 | Front bumper right side bracket | 52147-35010 · 52147-35020 |
| 52148 | Front bumper left bracket | 52148-35010 · 52148-35020 |
| 57107 | Right support rod bracket sub-assembly | 57107-35020 |
| 57108 | Left support rod bracket sub-assembly | 57108-35020 |
| 57133 | Right support rod bracket protective cover | 57133-35010 |
| 57134 | Left side support rod bracket protective cover | 57133-35010 |
