Toyota HILUX Front Spring & Shock Absorber — Figure 4803

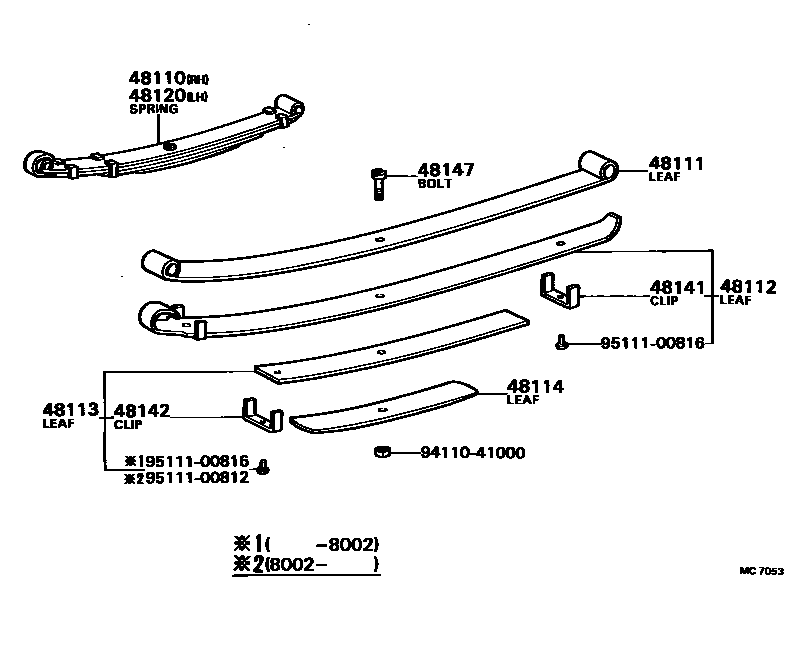

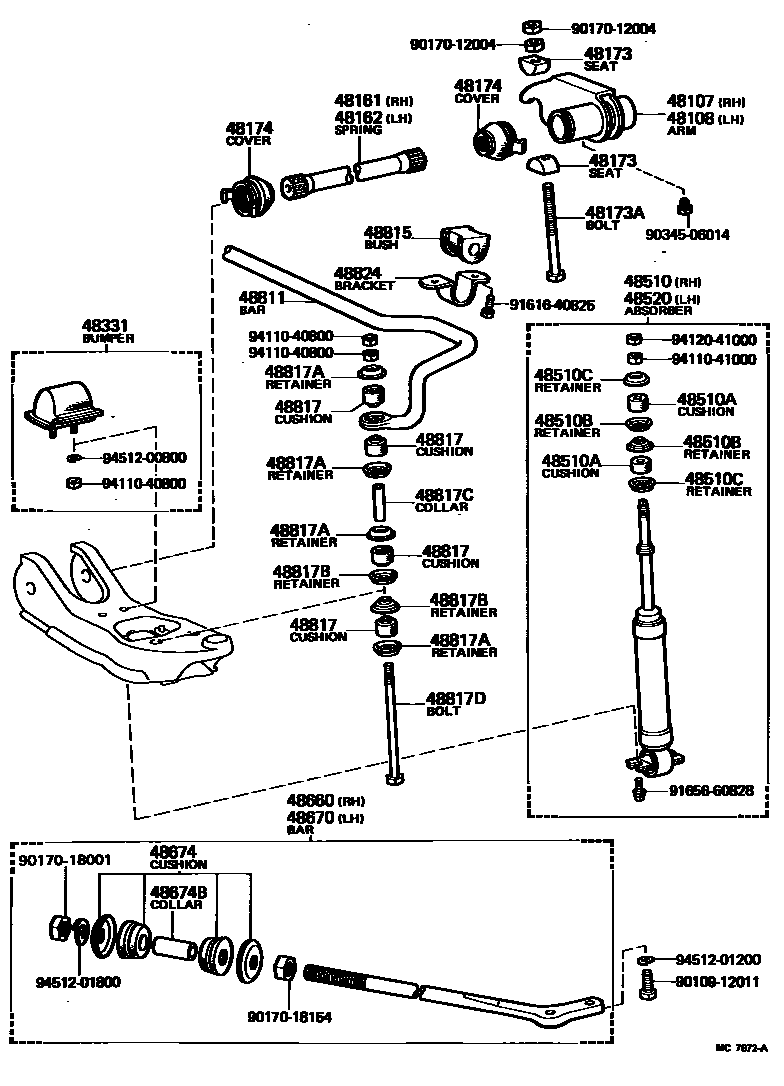

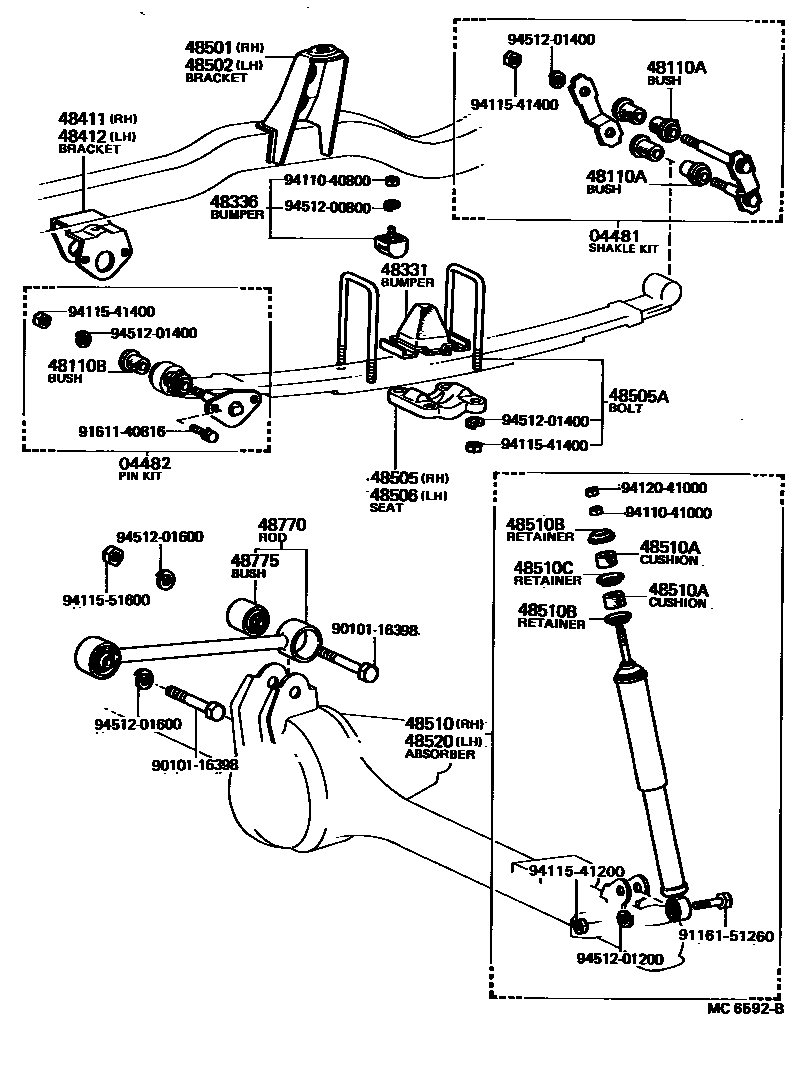

Toyota HILUX EPC diagram 4803, Front Spring & Shock Absorber, with 3 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04481 | Front spring lifting lug assembly | 04481-35040 |
| 04482 | Front spring pin assembly | 04482-35030 |
| 48107 | Right fixed arm sub-assembly | 48107-35010 · 48107-35011 · 48107-35012 |
| 48108 | Left fixed arm sub-assembly | 48108-35010 · 48108-35011 · 48108-35012 |
| 48110 | Right front spring assembly | 48110-35030 · 48110-35031 · 48110-35080 |
| 48110A | Bushing (for front spring lug) | 90385-18007 · 90385-18046 |
| 48110B | Bushing (for front spring pin) | 90385-18046 |
| 48111 | No. 1 front leaf spring | 48111-35030 · 48111-35031 · 48111-35080 · 48121-35010 · 48121-35011 · 48121-35030 |
| 48112 | No. 2 front leaf spring | 48102-35030 · 48102-35031 · 48102-35080 · 48104-35030 · 48104-35031 · 48106-35030 |
| 48113 | No. 3 front leaf spring | 48103-35030 · 48103-35031 · 48103-35080 |
| 48114 | No. 4 front leaf spring | 48114-35030 · 48114-35031 · 48114-35080 |
| 48120 | Left front spring assembly | 48110-35030 · 48120-35010 · 48120-35011 · 48120-35030 |
| 48141 | No. 1 front spring clip | 48141-35030 |
| 48142 | No. 2 front spring clip | 48142-35030 |
| 48147 | Front spring center bolt | 48147-35030 · 48147-35040 |
| 48161 | Right torsion bar spring | 48161-35010 · 48161-35030 |
| 48162 | Left torsion bar spring | 48162-35010 · 48162-35030 |
| 48173 | fixed arm adjuster seat | 48173-35010 |
| 48173A | Hexagonal bolt (for adjusting the fixed arm) | 90101-12038 |
| 48174 | Torsion bar dust cover | 48174-35010 · 48174-35020 |
| 48331 | No. 1 front spring buffer block | 48304-35040 · 48304-35070 · 48304-39045 |
| 48336 | No. 2 front spring buffer block | 48305-29045 |
| 48411 | Front spring bracket (for right front) | 48411-35020 · 48411-35021 |
| 48412 | Front spring bracket (for left front) | 48411-35020 · 48411-35021 |
| 48501 | Right front shock absorber upper bracket sub-assembly | 48512-35020 |
| 48502 | Left front shock absorber upper bracket sub-assembly | 48512-35020 |
| 48505 | Right front spring seat | 48471-35010 |
| 48505A | U-bolt (for front spring) | 90118-14173 · 90118-14174 · 90118-14175 |
| 48506 | Left front spring seat | 48472-35010 |
| 48510 | Right front shock absorber assembly | 48510-39015 · 48510-39045 · 48511-39245 · 48511-39246 · 48511-39247 · 48511-39315 |
| 48510A | Front shock absorber cushion | 90948-01002 · 90948-01003 |
| 48510B | No. 1 bumper plate (for front shock absorber) | 90948-02002 · 90948-02005 |
| 48510C | No. 2 buffer pad block (for front shock absorber) | 90948-02004 · 90948-02007 |
| 48520 | Left front shock absorber assembly | 48510-39015 · 48510-39045 · 48511-39245 · 48511-39246 · 48511-39247 · 48511-39315 |
| 48660 | Right support rod assembly | 48661-39025 · 48661-39035 |
| 48670 | Left support rod assembly | 48671-39015 · 48671-39025 |
| 48674 | Support rod cushion | 48674-29026 · 48674-39035 |
| 48674B | Collar (for support rod cushion) | 90387-18002 |
| 48770 | Torque rod sub-assembly | 48760-35010 |
| 48775 | Torque rod bushing | 48725-35010 |
| 48811 | front stabilizer bar | 48811-35080 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-16010 |
| 48817 | Front stabilizer bar cushion | 48817-30010 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02032 |
| 48817B | Crash pad block No. 2 (for front stabilizer bar) | 90948-02015 |
| 48817C | Collar (for stabilizer bar) | 90387-09004 |
| 48817D | Bolt (for front stabilizer bar) | 90101-08038 |
| 48824 | front stabilizer bar bracket | 48824-35030 |
