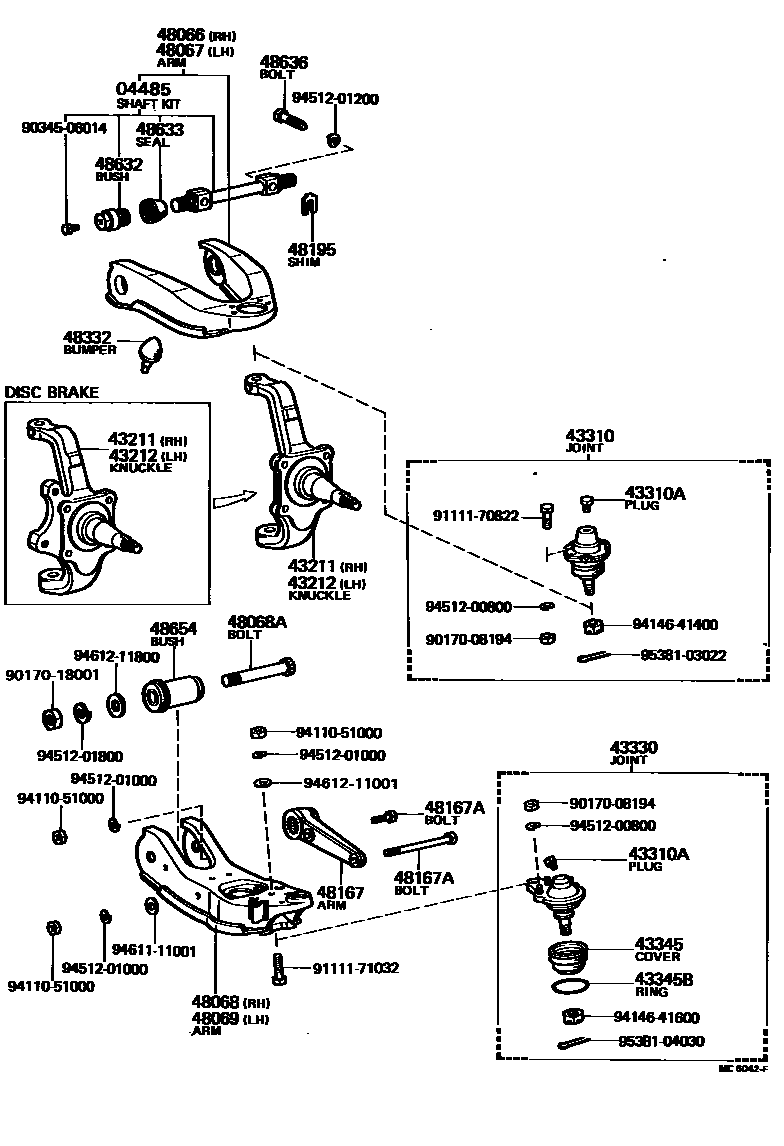

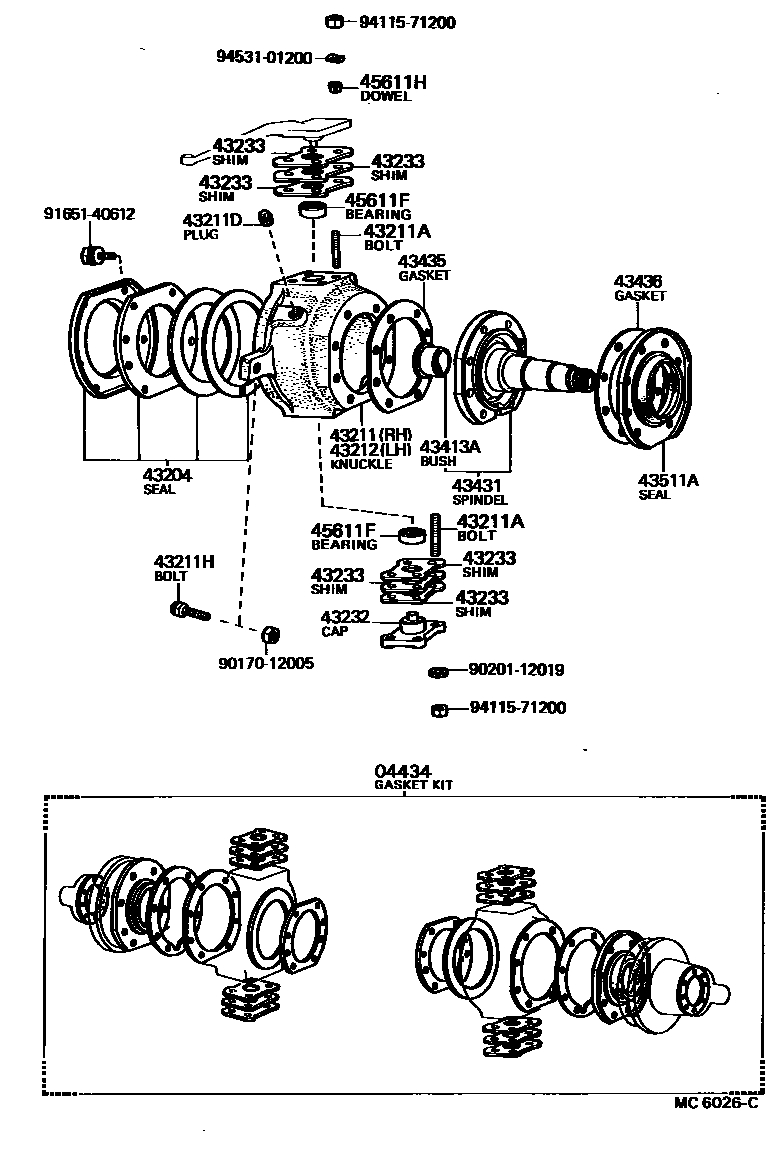

Toyota HILUX 前桥控制臂和转向节 — Figure 4802
Toyota HILUX EPC diagram 4802, 前桥控制臂和转向节, with 2 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04434 | Front axle overhaul gasket assembly | 04434-60012 |
| 04485 | Suspension upper arm shaft assembly | 04485-35020 |
| 43204 | Steering knuckle oil seal sub-assembly | 43204-60020 |
| 43211 | Right steering knuckle | 43211-26020 · 43211-26030 · 43211-35060 · 43211-60032 |
| 43211A | Stud bolts (for steering knuckle assembly) | 90116-12003 |
| 43211D | Screw plug (for steering knuckle) | 90345-53020 |
| 43211H | Round hex bolt | 90106-12022 |
| 43212 | left steering knuckle | 43211-26020 · 43212-26010 · 43212-35030 · 43212-60032 |
| 43232 | Steering knuckle bearing cap | 43232-60021 |
| 43233 | No. 1 steering knuckle adjustment washer | 43233-60011 · 43234-60011 · 43235-60010 · 43236-60010 |
| 43310 | Upper ball joint assembly | 43360-39015 · 43360-39055 |
| 43310A | Screw plug (for ball joint) | 90345-06014 |
| 43330 | Front lower ball joint assembly | 43330-39045 · 43340-39075 |
| 43345 | Lower ball joint dust cover | 43345-35010 |
| 43345B | Positioning ring (for lower ball joint dust cover) | 90522-58039 |
| 43413A | Integral bushing (for drive shaft) | 90999-70067 |
| 43431 | Steering knuckle spindle | 43401-60012 |
| 43435 | Steering knuckle spindle pad | 43435-60011 |
| 43436 | Steering knuckle spindle oil retaining ring gasket | 43436-60011 |
| 43511A | Dust seal (for front axle hub) | 90313-93011 |
| 45611F | Bearing (for knuckle arm) | 90366-17001 · 97610-30303 |
| 45611H | Separate locating pin (for knuckle arm) | 42323-60020 |
| 48066 | Right front suspension upper arm sub-assembly | 48066-35030 |
| 48067 | Left front suspension upper arm sub-assembly | 48066-35030 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48605-35030 · 48605-35031 · 48605-35040 · 48605-35041 |
| 48068A | Bolt (for front suspension lower arm) | 90114-18001 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48606-35030 · 48606-35031 · 48606-35040 · 48606-35041 |
| 48167 | torque arm | 48167-35010 |
| 48167A | Bolt (for securing torque arm) | 90101-10389 · 91111-51025 |
| 48195 | Camber angle adjustment washer | 90565-12023 · 90565-12024 · 90565-12025 |
| 48332 | No. 2 front spring buffer block | 48332-35010 |
| 48632 | Upper arm bushing | 48632-30012 |
| 48633 | Upper arm pivot dust seal | 48633-35010 |
| 48636 | Upper arm fixing bolt | 90101-12036 |
| 48654 | lower arm bushing | 48654-35010 |
