Toyota HILUX 前盘式制动器卡钳和防尘罩 — Figure 4705

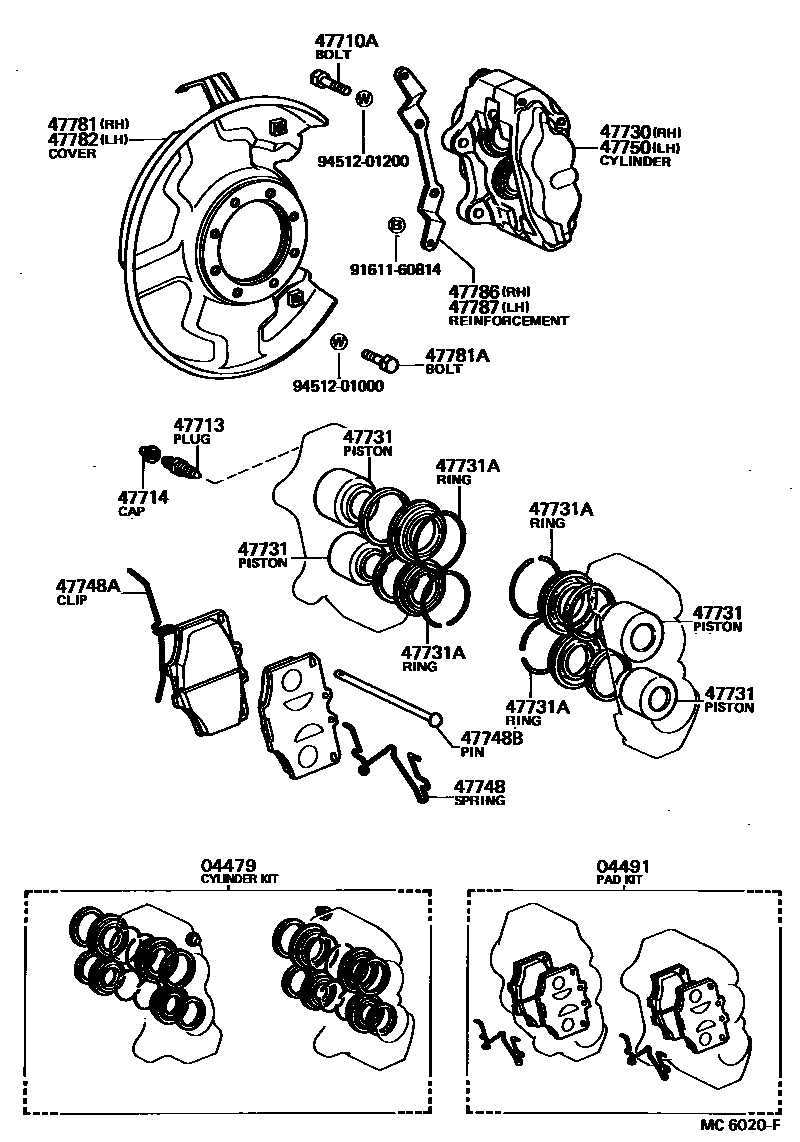

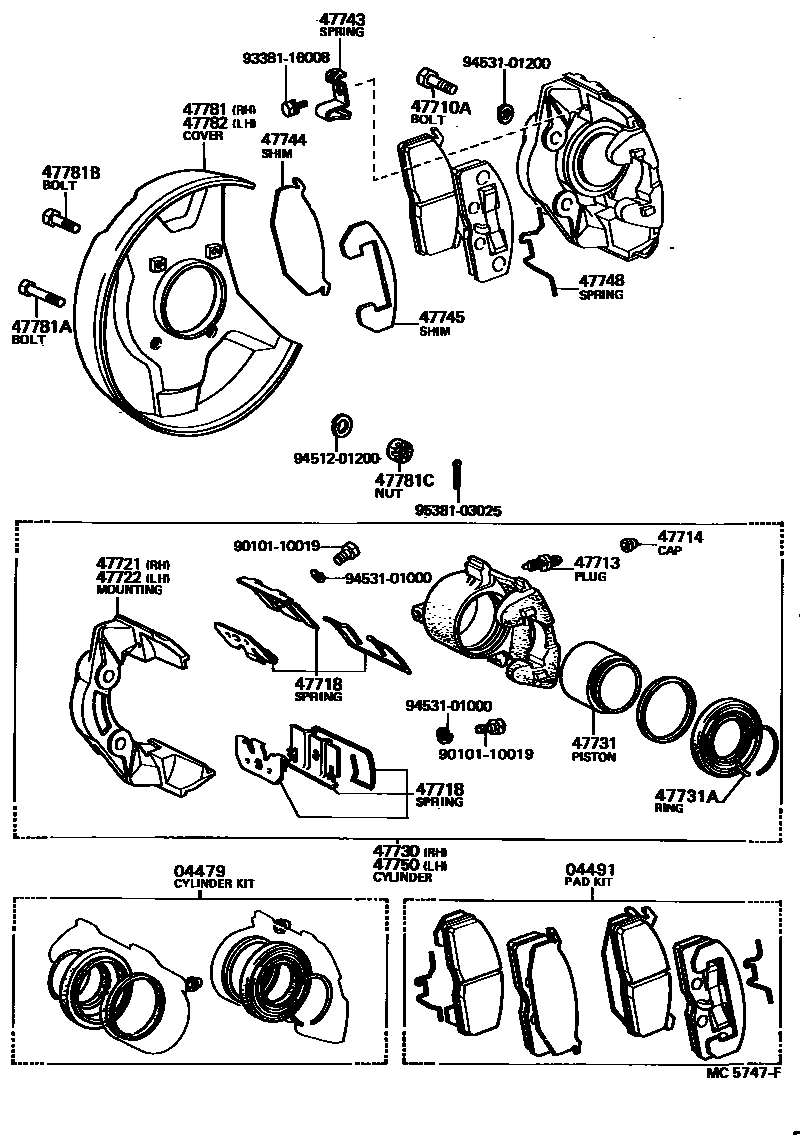

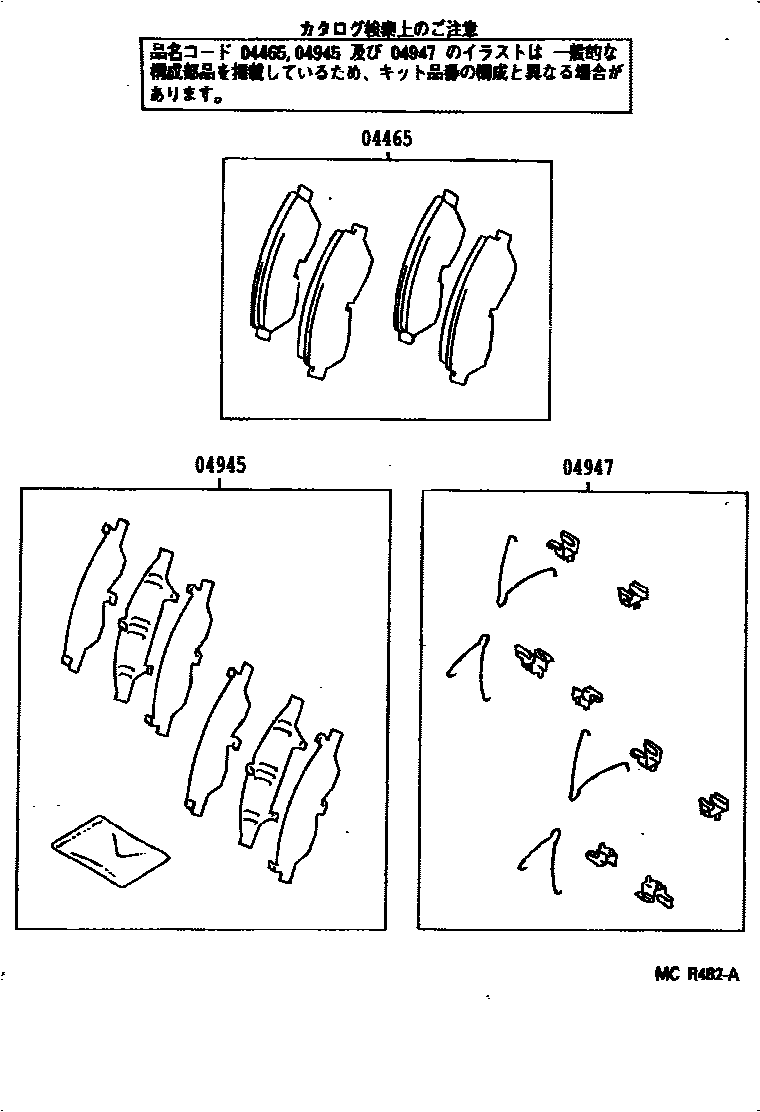

Toyota HILUX EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-26190 · 04465-35170 |
| 04479 | Front disc brake cylinder assembly | 04479-26010 · 04479-26020 · 04479-30030 |
| 04491 | Front disc brake pad assembly | 04491-26020 · 04491-26021 · 04491-26050 · 04491-60010 |
| 04945 | Front silencer gasket assembly | 04945-26050 · 04945-26080 |
| 04947 | Front disc brake mounting kit | 04947-26070 · 04947-60050 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90101-12010 · 90101-12491 |
| 47713 | Bleed plug (for front disc brake) | 47547-12010 · 47547-20030 |
| 47714 | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47718 | Front disc brake cylinder bracket spring | 47718-29015 · 47718-29025 · 47719-29015 · 47719-29025 |
| 47721 | Right front disc brake cylinder retainer | 47721-26010 |
| 47722 | Left front disc brake cylinder retainer | 47722-26010 |
| 47730 | Right front disc brake cylinder assembly | 47730-26010 · 47730-26030 · 47730-26050 · 47730-35010 |
| 47731 | Front disc brake piston | 47731-26010 · 47731-26020 · 47731-30020 · 47732-30010 |
| 47731A | retaining ring (for front disc brake piston) | 90522-40043 · 90522-48044 · 90522-65001 |
| 47743 | Anti-vibration spring No. 2 (for front disc brake) | 47736-26010 · 47738-26010 · 47743-26010 |
| 47744 | No. 1 silencer gasket (for front disc brake) | 47744-26010 · 47744-26020 · 47744-26030 |
| 47745 | No. 2 silencer gasket (for front disc brake) | 47745-26010 |
| 47748 | Anti-vibration spring No. 1 (for front disc brake) | 47748-26010 · 47748-30013 · 47748-60010 |
| 47748A | Clamp (for front disc brake vibration isolator) | 90468-12003 |
| 47748B | Pin with hole (for front disc brake vibration isolator) | 90240-06006 |
| 47750 | Left disc brake cylinder assembly | 47750-26010 · 47750-26030 · 47750-26050 · 47750-35010 |
| 47781 | Right front disc brake dust cover | 47703-35010 · 47781-26010 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90101-10439 · 90102-12004 · 90102-12065 · 90114-12138 · 91111-71028 |
| 47781B | Bolts (for securing the dust cover) | 91611-40828 |
| 47781C | Nut (used to secure dust cover to steering knuckle arm) | 94145-71200 |
| 47782 | Left front disc brake dust cover | 47704-35010 · 47782-26010 |
| 47786 | Right dust cover reinforcement | 47786-60011 |
| 47787 | Left dust cover reinforcement | 47787-60011 |
