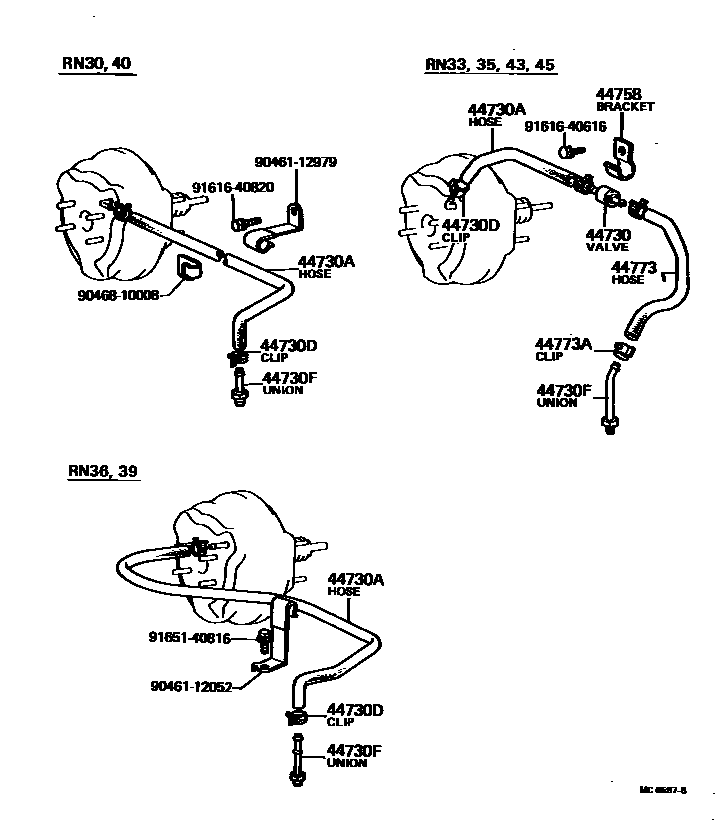

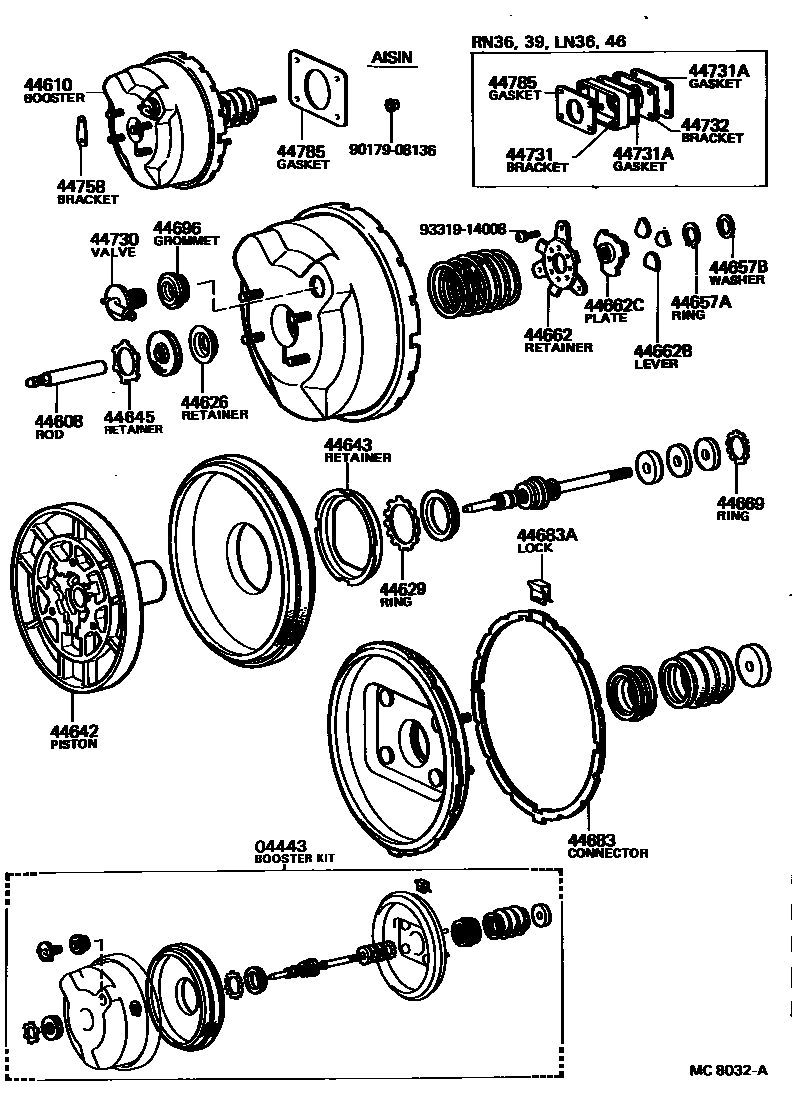

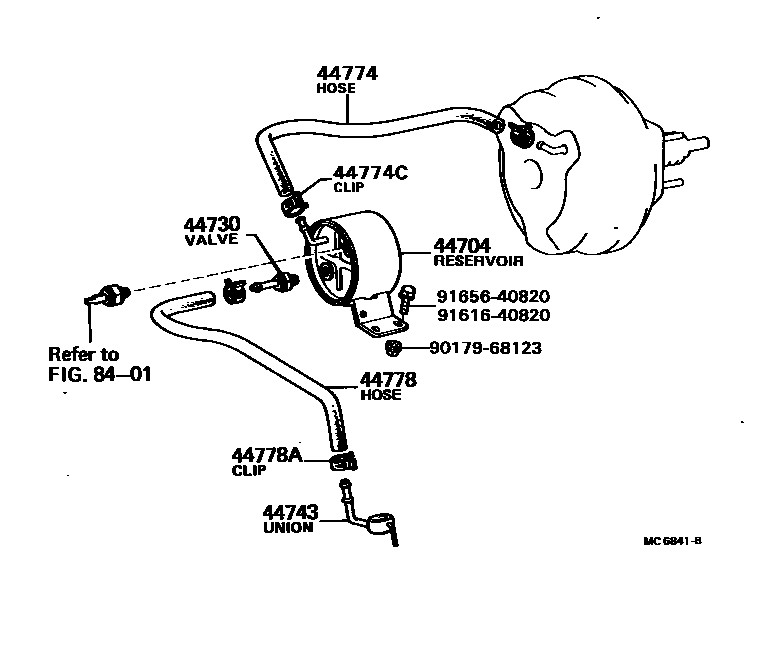

Toyota HILUX 制动助力器和真空管 — Figure 4703
Toyota HILUX EPC diagram 4703, 制动助力器和真空管, with 3 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04443 | brake booster components | 04443-35060 · 04443-35061 · 04443-35140 · 04443-35220 · 04443-35270 |
| 44608 | Booster push rod sub-assembly | 44606-35100 |
| 44610 | brake booster assembly | 44610-35100 · 44610-35101 · 44610-35110 · 44610-35111 · 44610-35250 · 44610-35290 · 44610-35410 |
| 44626 | Booster rod cup fixing piece | 44626-60010 |
| 44629 | annular inner ring | 44629-30090 |
| 44642 | brake booster piston | 44642-14170 |
| 44643 | Diaphragm retaining ring | 44643-60010 |
| 44645 | Booster push rod sealing ring | 44628-60010 |
| 44657A | Snap ring (for booster air valve stop) | 96150-01600 |
| 44657B | Flat Washer (for booster air valve stop) | 44645-20100 |
| 44662 | No. 1 reaction retaining ring | 44662-20100 · 44662-35100 |
| 44662B | reaction lever | 44661-35100 |
| 44662C | No. 1 reaction tablet | 44607-35100 · 44653-12100 · 44653-20150 |
| 44669 | Ring inner ring (for air filter element stop) | 44669-60010 |
| 44683 | Booster body connector | 44682-20150 |
| 44683A | connector lock | 44683-20100 |
| 44696 | One-way valve seal | 90480-24439 |
| 44704 | Vacuum liquid tank sub-assembly | 44704-35010 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-20010 · 44730-20030 · 44730-20060 · 44730-60040 |
| 44730A | No. 1 vacuum hose | 44772-35040 · 44773-35070 · 44773-35080 |
| 44730D | Clamp (for vacuum hose No. 1) | 90467-16141 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51007 · 90404-51032 · 90404-51237 |
| 44731 | Front brake booster bracket | 44731-35060 |
| 44731A | Brake booster bracket pad | 44785-35011 |
| 44732 | Rear brake booster bracket | 44732-35040 |
| 44743 | Connector (for vacuum pump) | 90405-09004 · 90405-09005 · 90405-09047 · 90405-09048 |
| 44758 | Vacuum check valve bracket | 44758-20060 · 44758-35060 |
| 44773 | No. 2 vacuum hose | 44773-35190 |
| 44773A | Clamp No. 1 (for vacuum hose No. 2) | 90467-16141 |
| 44774 | Hoses (joints to connector tubes) | 44774-35010 |
| 44774C | Clip (for fitting to connector tube hose) | 90467-16141 |
| 44778 | Hoses (connector to check valve) | 44773-35180 |
| 44778A | Clip (for connector to check valve hose) | 90467-16141 |
| 44785 | brake booster pad | 44785-35010 · 44785-35011 |
