Toyota HILUX 制动总泵 — Figure 4702

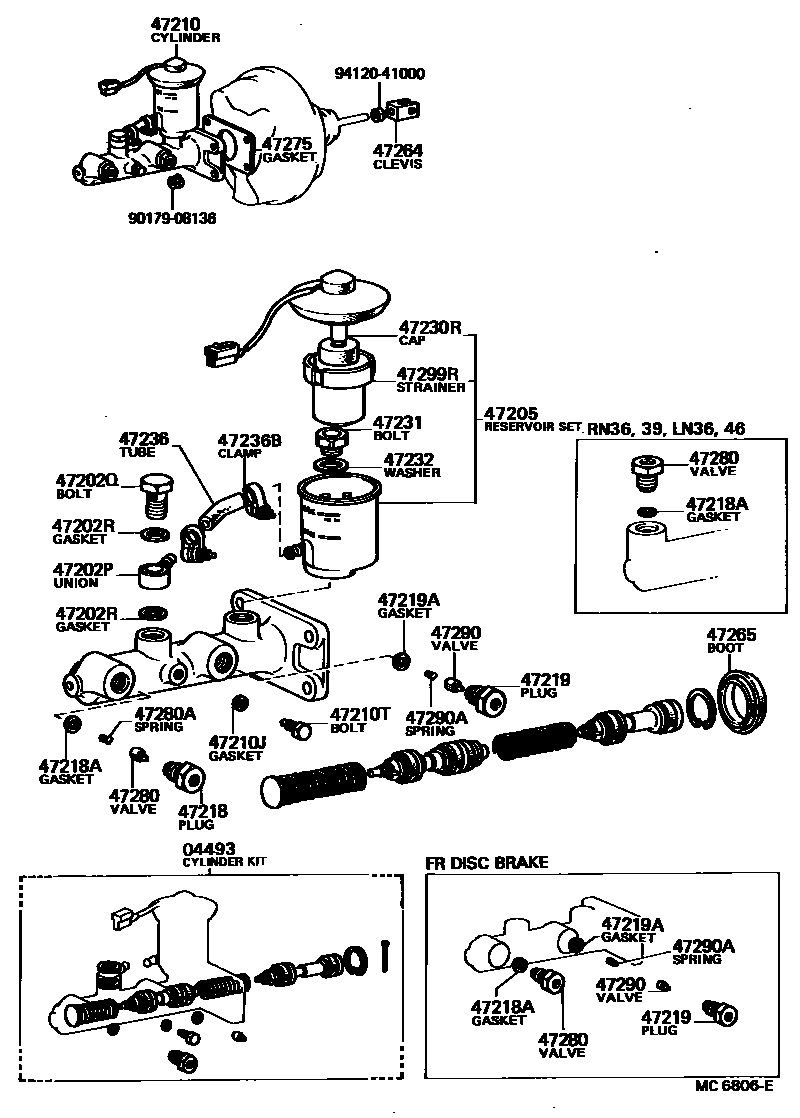

Toyota HILUX EPC diagram 4702, 制动总泵, with 1 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-14050 · 04493-35050 · 04493-35060 |
| 47202P | Reservoir tank connector (for brake master cylinder side) | 90405-10125 |
| 47202Q | Reservoir tank joint bolt (for brake master cylinder side) | 90401-16078 |
| 47202R | Reservoir joint gasket (for brake master cylinder side) | 90430-16242 |
| 47205 | Brake master cylinder reservoir assembly (for rear side) | 47202-14270 · 47202-35040 · 47202-35060 |
| 47210 | Brake master cylinder assembly without booster | 47201-35090 · 47201-35100 · 47201-35160 |
| 47210J | Gasket (for master cylinder) | 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06008 |
| 47218 | Brake master cylinder brake fluid outlet screw plug | 47218-30030 |
| 47218A | Gasket (for brake fluid outlet plug) | 90430-09253 · 90430-11001 |
| 47219 | Master cylinder brake fluid outlet screw plug (for rear side) | 47218-30030 |
| 47219A | Gasket (for rear master cylinder brake fluid outlet plug) | 90430-09253 · 90430-11001 |
| 47230R | No. 2 fluid reservoir cap assembly (for rear side) | 84460-12011 |
| 47231 | Brake master cylinder reservoir fixing bolt | 47231-30010 |
| 47232 | Brake fluid reservoir retaining bolt washer | 47232-30010 |
| 47236 | Brake fluid reservoir tube | 47234-14010 |
| 47236B | Clamp (for reservoir tube) | 90460-16069 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-12040 · 47264-20020 |
| 47265 | Master pump dust jacket | 47265-20050 |
| 47275 | brake master cylinder gasket | 47275-22010 |
| 47280 | Brake master cylinder outlet check valve assembly | 47280-30030 · 47281-30020 |
| 47280A | compression spring | 90504-05001 |
| 47290 | Master pump outlet valve assembly (for rear side) | 47280-30030 · 47281-30020 |
| 47290A | Compression spring (for rear master pump outlet) | 90504-05001 |
| 47299R | Rear master cylinder reservoir filter | 47299-14010 · 47299-20010 |
