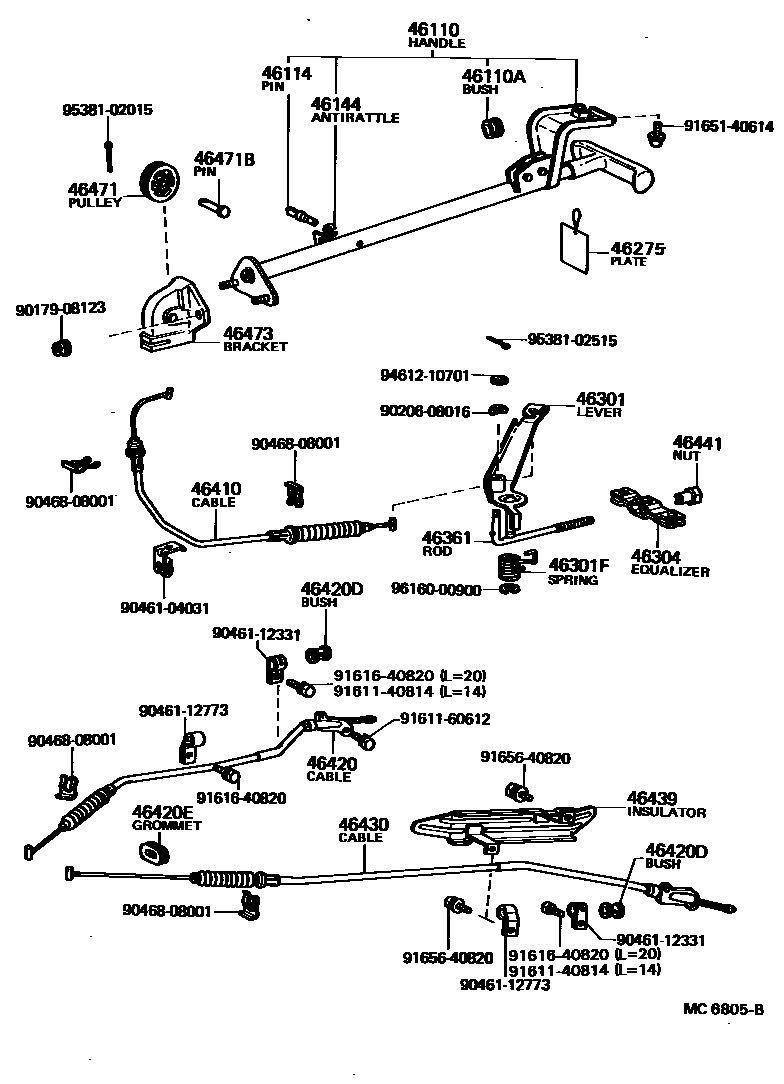

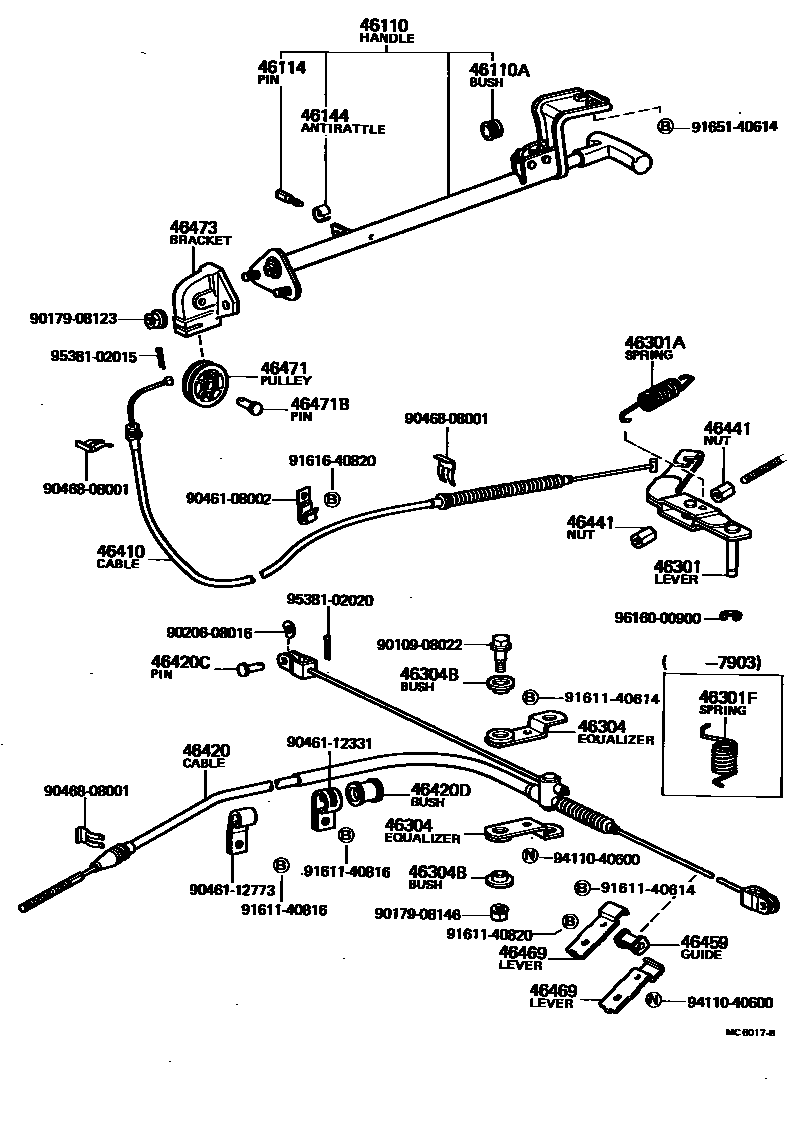

Toyota HILUX Parking Brake & Cable — Figure 4601
Toyota HILUX EPC diagram 4601, Parking Brake & Cable, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46110 | Parking brake control handle assembly | 46110-35090 · 46110-35200 |
| 46110A | Bushing or O-ring (for parking brake plunger) | 90386-12048 |
| 46114 | Parking brake plunger pin | 46114-20010 |
| 46144 | Parking brake plunger vibration isolator | 46144-20010 |
| 46275 | Parking brake release warning plate | 46275-26010 · 46275-35020 |
| 46301 | Parking brake intermediate lever sub-assembly | 46301-35080 · 46301-35101 |
| 46301A | Tension spring (for middle lever) | 90506-20027 |
| 46301F | Torsion spring (for parking brake intermediate lever) | 90508-32008 |
| 46304 | Parking brake balancer sub-assembly | 46304-22020 · 46341-30040 · 46341-35020 |
| 46304B | Bushing (for parking brake balancer) | 90385-12029 |
| 46361 | Parking brake lever | 46361-35040 |
| 46410 | Parking brake cable assembly No. 1 | 46410-35151 · 46410-35161 · 46410-35162 · 46410-35172 · 46410-35220 |
| 46420 | Parking brake No. 2 cable assembly | 46420-35111 · 46420-35112 · 46420-35121 · 46420-35122 · 46420-35150 · 46420-35151 · 46420-35152 · 46420-35162 |
| 46420C | Pin with hole (for parking brake cable) | 90240-08028 |
| 46420D | Seal or bushing (for parking brake cable clip) | 90385-13051 |
| 46420E | Seal (for parking brake cable clip) | 90480-01019 |
| 46430 | Parking brake No. 3 cable assembly | 46430-35121 · 46430-35122 · 46430-35131 · 46430-35132 |
| 46439 | Parking brake cable insulation pad | 46439-35020 |
| 46441 | No. 1 cable adjustment nut | 46441-22010 · 46441-30030 |
| 46459 | cable catheter | 46459-30010 |
| 46469 | Cable conduit support rod | 46469-35010 |
| 46471 | Wiring harness pulley | 46471-20010 |
| 46471B | Holed pin (for harness pulley assembly) | 90240-08070 |
| 46473 | pulley bracket | 46473-35020 |
