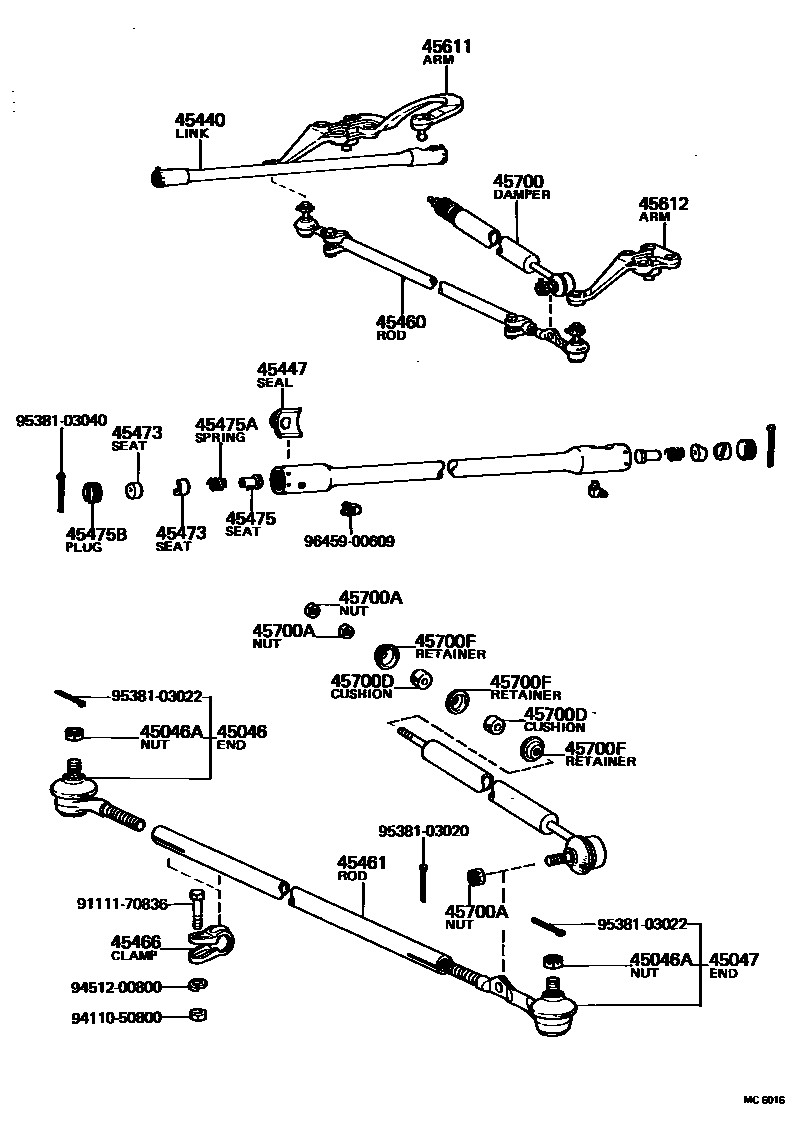

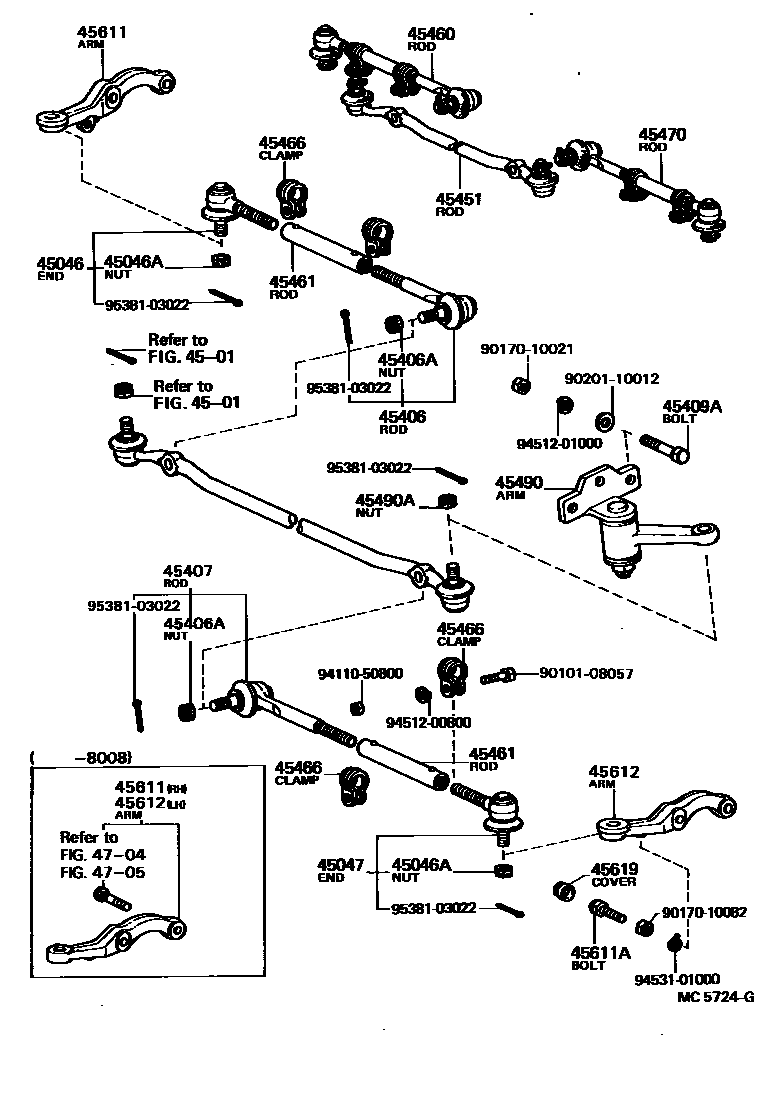

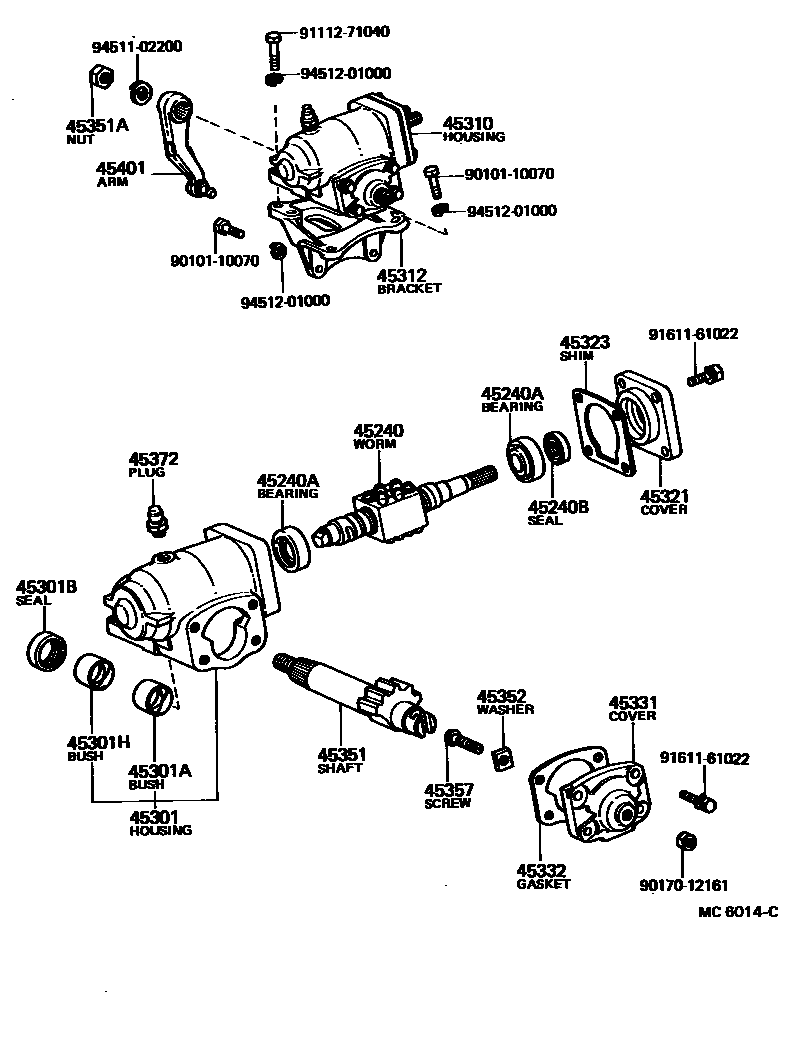

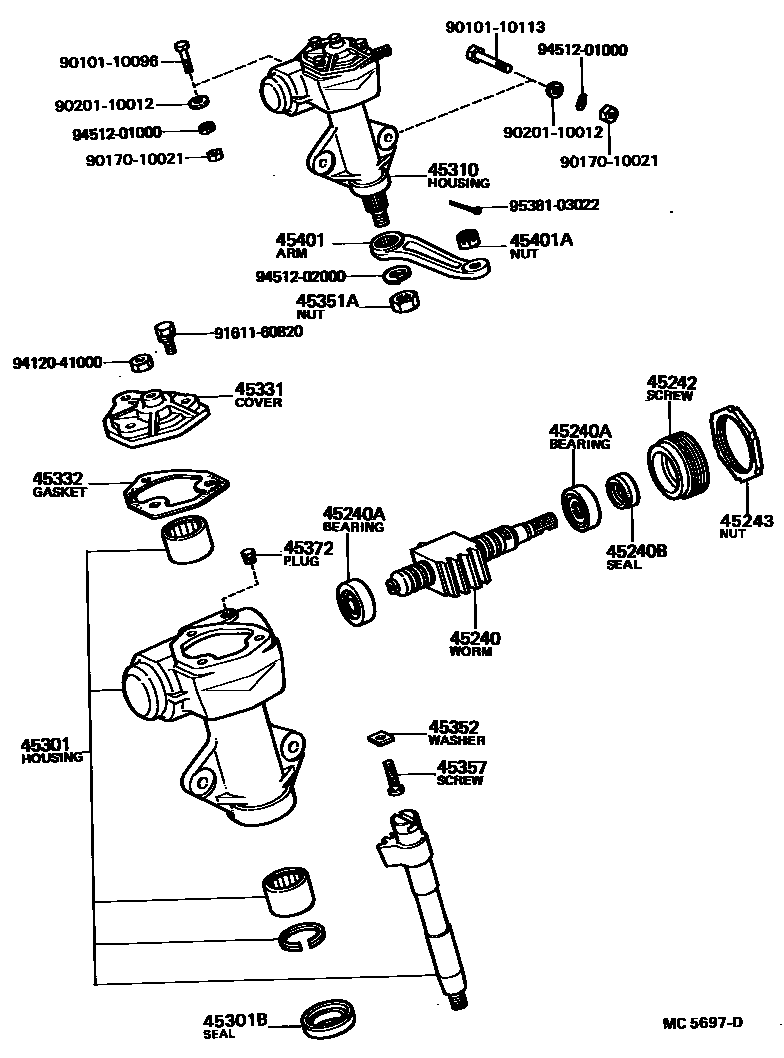

Toyota HILUX 前转向齿轮和连杆 — Figure 4505
Toyota HILUX EPC diagram 4505, 前转向齿轮和连杆, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45046 | Right tie rod end sub-assembly | 45046-29115 · 45046-39105 · 45046-39106 · 45046-39125 |
| 45046A | Castle nuts (for tie rod ends) | 90171-14042 |
| 45047 | Left tie rod end sub-assembly | 45046-29115 · 45046-39105 · 45046-39106 · 45046-39125 · 45047-39075 · 45047-39076 · 45047-39085 |
| 45406 | Right tie rod sub-assembly | 45406-29115 · 45406-39085 · 45406-39086 · 45406-39095 |
| 45406A | Castle nuts (for tie rods) | 90171-14042 |
| 45407 | Left tie rod sub-assembly | 45406-29115 · 45406-39085 · 45406-39086 · 45406-39095 |
| 45409A | Hexagonal bolts (used to secure the follower arm bracket) | 90101-10053 · 90101-10113 |
| 45440 | Steering straight tie rod assembly | 45440-35030 |
| 45447 | Straight pull rod dust seal | 45447-60010 |
| 45451 | Steering intermediate tie rod | 45450-39015 · 45450-39016 · 45450-39055 · 45450-39065 |
| 45460 | Right tie rod assembly | 45460-29215 · 45460-39095 · 45460-39096 · 45460-39115 · 45460-39116 · 45460-39145 · 45460-39155 |
| 45461 | steering tie rod | 45461-35060 · 45461-35061 · 45465-35020 |
| 45466 | Tie rod end clamp | 45466-30020 |
| 45470 | Left tie rod assembly | 45460-29215 · 45460-39095 · 45460-39096 · 45460-39155 |
| 45473 | Ball stud seat | 45473-35010 |
| 45475 | Steering rod joint spring seat | 45475-35010 |
| 45475A | Compression spring (for steering tie rod joint) | 90501-45114 |
| 45475B | Straight thread plug (for steering tie rod joint) | 90340-25001 |
| 45490 | Steering follower arm assembly | 45490-35080 · 45490-35110 |
| 45490A | Castle nut (for follower arm) | 90171-12028 |
| 45611 | Right steering knuckle arm | 45601-35060 · 45601-35070 · 45611-35061 |
| 45611A | Steering knuckle limit bolt | 90106-10032 |
| 45612 | Left steering knuckle arm | 45606-35040 · 45612-35061 · 45612-35070 |
| 45619 | Steering knuckle stop cover | 45619-14020 |
| 45700 | Steering damper assembly | 45700-39025 |
| 45700A | Nut (for steering damper) | 90171-12028 · 94110-40800 |
| 45700D | steering damper cushion | 90948-01001 |
| 45700F | steering damper cushion | 90948-02003 · 90948-02006 |
