Toyota HILUX Front Axle Hub — Figure 4303

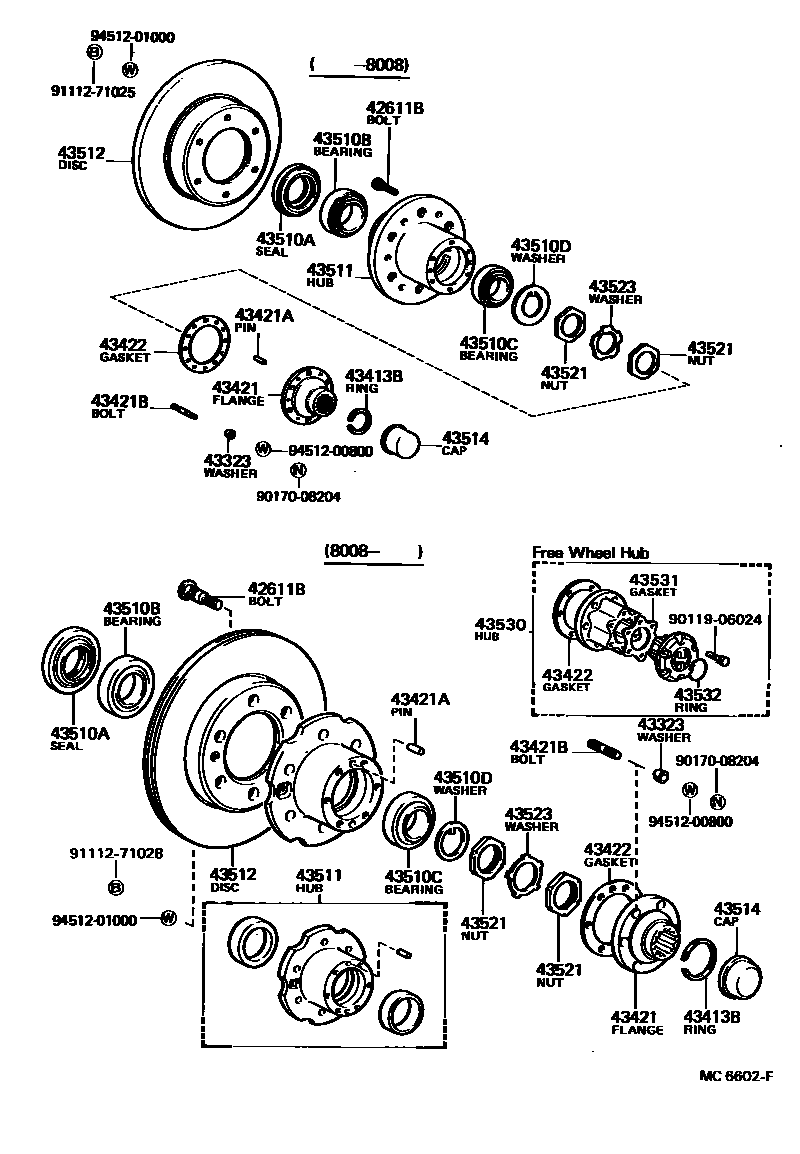

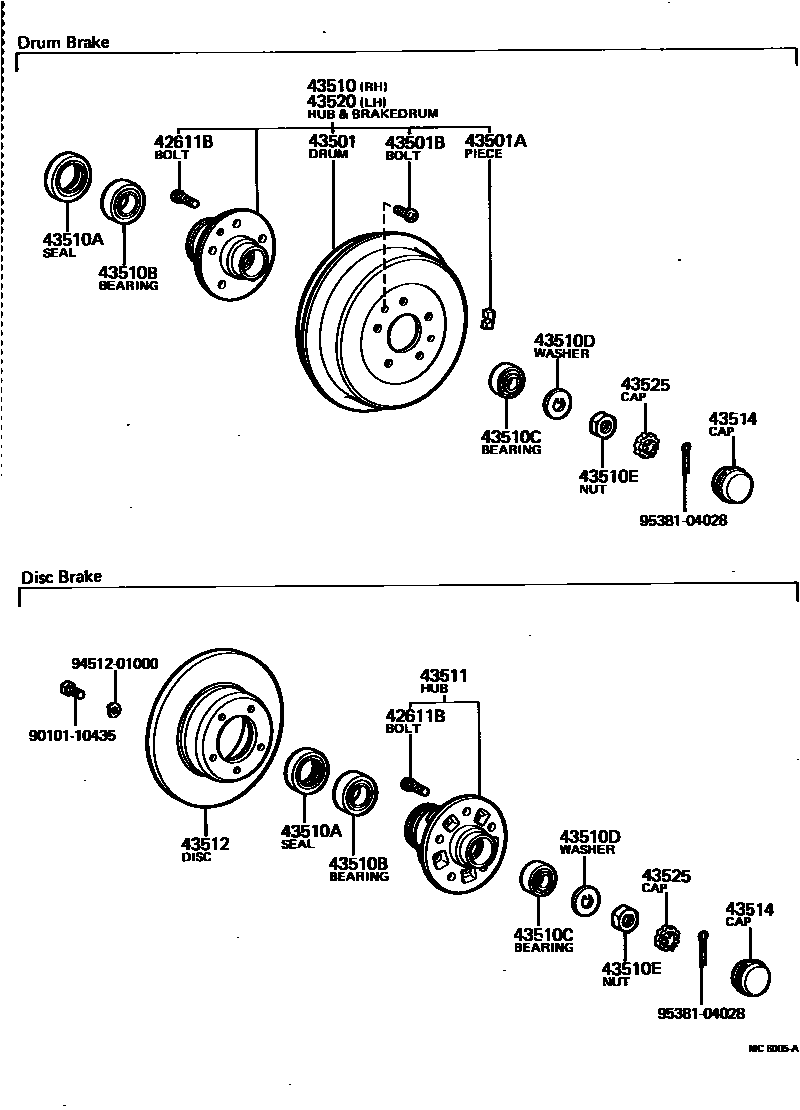

Toyota HILUX EPC diagram 4303, Front Axle Hub, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42611B | Hub bolts (for front axle) | 90942-02014 · 90942-02035 · 90942-02037 · 90942-02044 |
| 43323 | Taper washer (for front driveshaft) | 42323-60010 |
| 43413B | drive shaft snap ring | 90520-31001 |
| 43421 | Front axle outer shaft flange | 43421-60013 |
| 43421A | Direct sales (for front axle outer shaft flange) | 90250-07057 |
| 43421B | Stud bolts (for front axle outer shaft flange) | 90116-08325 |
| 43422 | Front axle outer shaft flange gasket | 43422-60010 |
| 43501 | Front brake drum sub-assembly | 43512-35030 |
| 43501A | Balance weight (for front brake drum) | 90937-01100 · 90937-01117 · 90937-01118 · 90937-01119 · 90937-01146 |
| 43501B | Fixing bolt (for fixing front brake drum) | 90113-10035 |
| 43510 | Right front axle hub and brake drum assembly | 43510-35050 |
| 43510A | Oil seal (for front axle hub) | 90311-50136 · 90311-62001 |
| 43510B | Roller tapered bearing (for front axle inner bearing) | 90368-34039 · 90368-49084 |
| 43510C | Roller tapered bearing (for front axle outer bearing) | 90368-21065 · 90368-45087 |
| 43510D | Jaw washer (for steering knuckle washer) | 90214-20007 · 90214-42030 |
| 43510E | Nut (for steering knuckle) | 90170-19185 |
| 43511 | Front Axle Hub | 43502-26010 · 43502-60020 · 43511-60021 |
| 43512 | front brake disc | 43512-26030 · 43512-26031 · 43512-35040 · 43512-35070 |
| 43514 | Front hub grease cap | 43423-60011 · 43514-35010 |
| 43520 | Left front axle hub and brake drum assembly | 43510-35050 |
| 43521 | Front wheel adjustment nut | 43521-60011 |
| 43523 | Front wheel adjustment lock washer | 90215-42025 |
| 43525 | Front wheel adjustment lock cover | 43525-22010 |
| 43530 | Free hub assembly | 43530-39025 · 43530-39026 · 43530-39027 |
| 43531 | free wheel hub liner | 43531-60010 |
| 43532 | free hub ring | 43532-60010 |
