Toyota HILUX Transfer Case & Extension Housing — Figure 3609

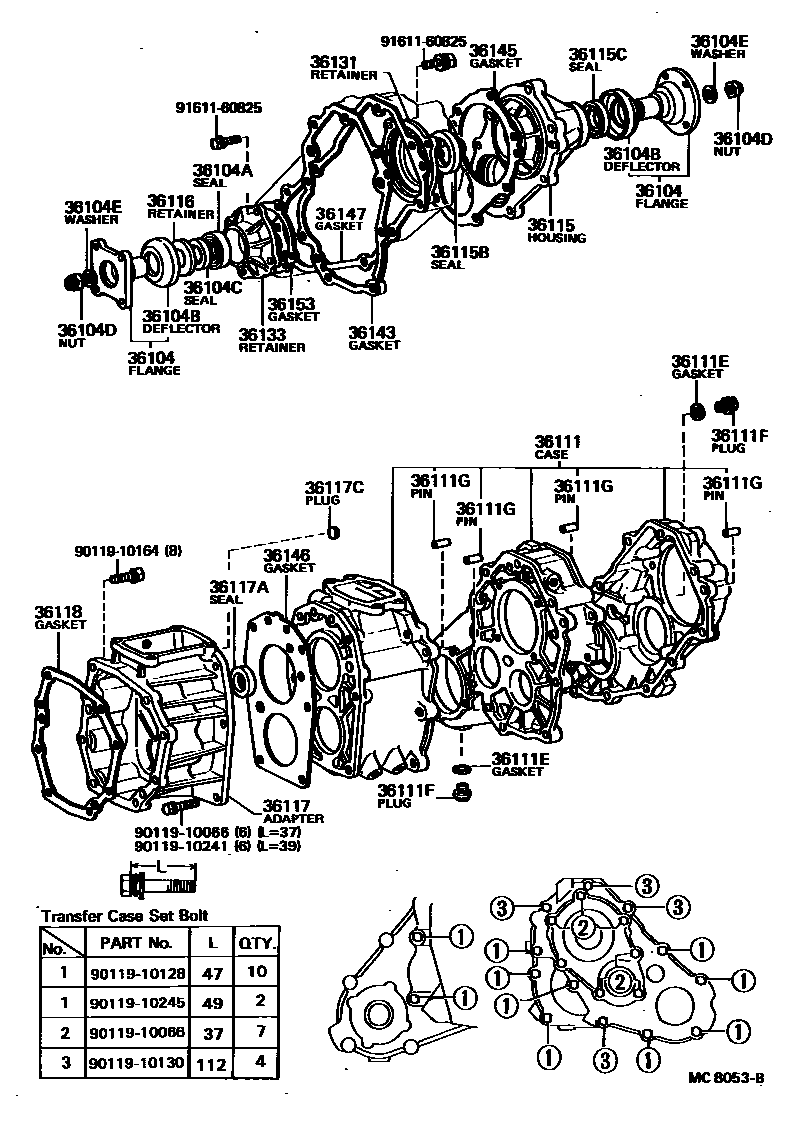

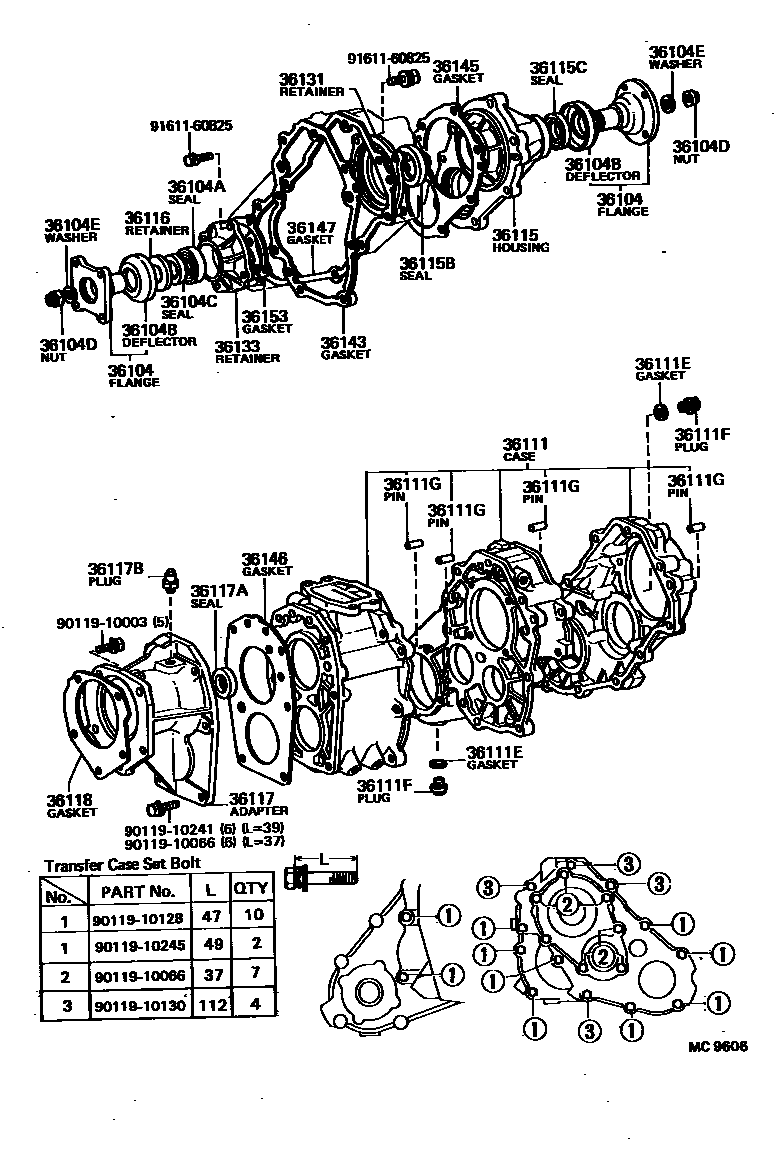

Toyota HILUX EPC diagram 3609, Transfer Case & Extension Housing, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 36104 | Combination flange (for transfer case output shaft) | 33309-35011 · 33309-35021 |
| 36104A | T-type oil seal (for transfer case output shaft) | 90311-38016 |
| 36104B | Dust cover (for transfer case output shaft) | 33325-35020 |
| 36104C | Dust seal (for transfer case output shaft) | 90303-38010 |
| 36104D | Nut (for transfer case output shaft) | 90179-20001 |
| 36104E | Flat washer (for transfer case output shaft) | 90201-20005 |
| 36111 | transfer case | 36103-35010 · 36103-35011 · 36103-35012 |
| 36111E | Gasket (for transfer case) | 12157-10010 · 90430-18007 |
| 36111F | Screw plug (for transfer case) | 90341-18002 · 90341-18006 · 90341-18081 |
| 36111G | Direct sales (for transfer case) | 90250-10113 · 90250-10232 |
| 36115 | Transfer case extension housing | 36115-35010 |
| 36115B | V-shaped oil seal (for transfer case extension case) | 90312-48001 |
| 36115C | T-type oil seal (for transfer case extension case) | 90311-38140 |
| 36116 | Transfer case extension housing dust seal retainer | 33145-30010 |
| 36117 | Transfer case clutch | 36117-35010 · 36117-35011 · 36117-35020 |
| 36117A | Oil seal (for transfer case clutch) | 90310-32001 · 90311-32009 |
| 36117B | Breather plug (for transfer case clutch) | 90930-03031 |
| 36117C | Sealing plug (for transfer case clutch) | 96411-11200 |
| 36118 | Transfer case clutch gasket | 33142-35030 · 33142-35040 |
| 36131 | Transfer case output shaft front bearing retainer | 36131-35010 |
| 36133 | Transfer case front drive gear bearing retainer | 36133-35010 |
| 36143 | Front transfer case gasket | 36143-35010 |
| 36145 | Transfer case extension housing gasket | 36145-35010 |
| 36146 | Transfer gearbox gasket | 36146-35010 |
| 36147 | Transfer case gasket | 36141-35010 |
| 36153 | Front driving gear bearing retainer gasket | 36153-35010 |
