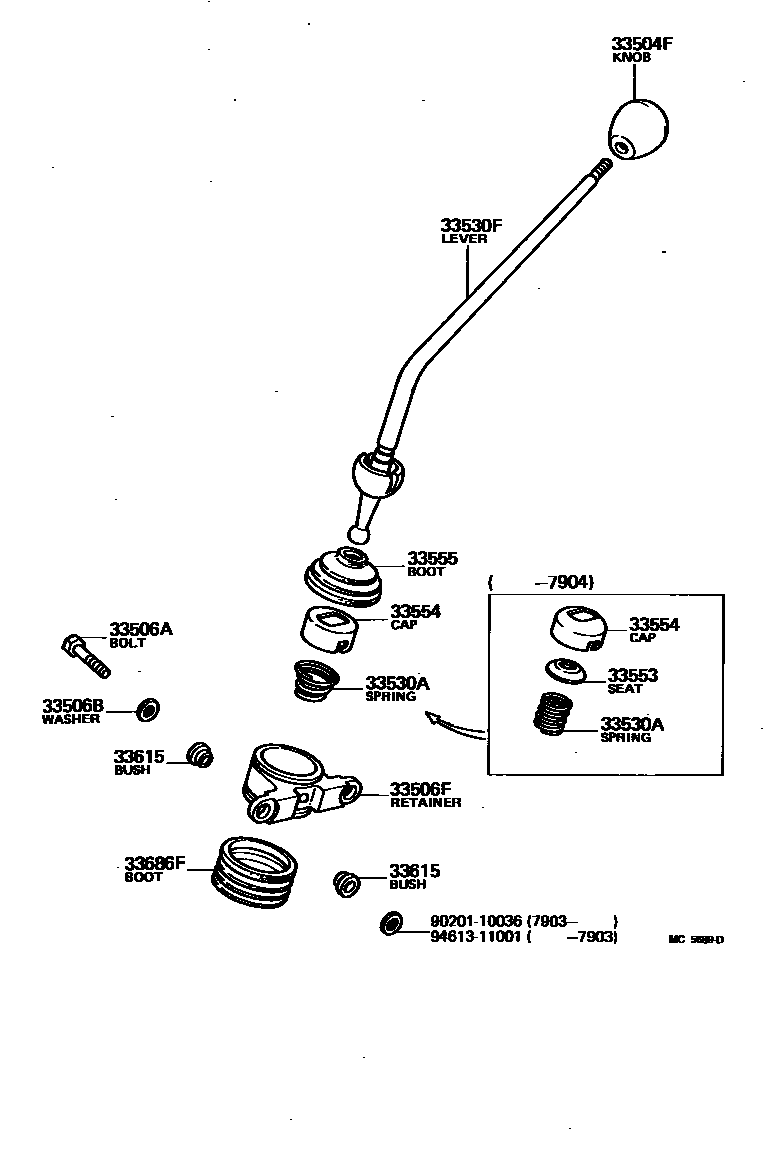

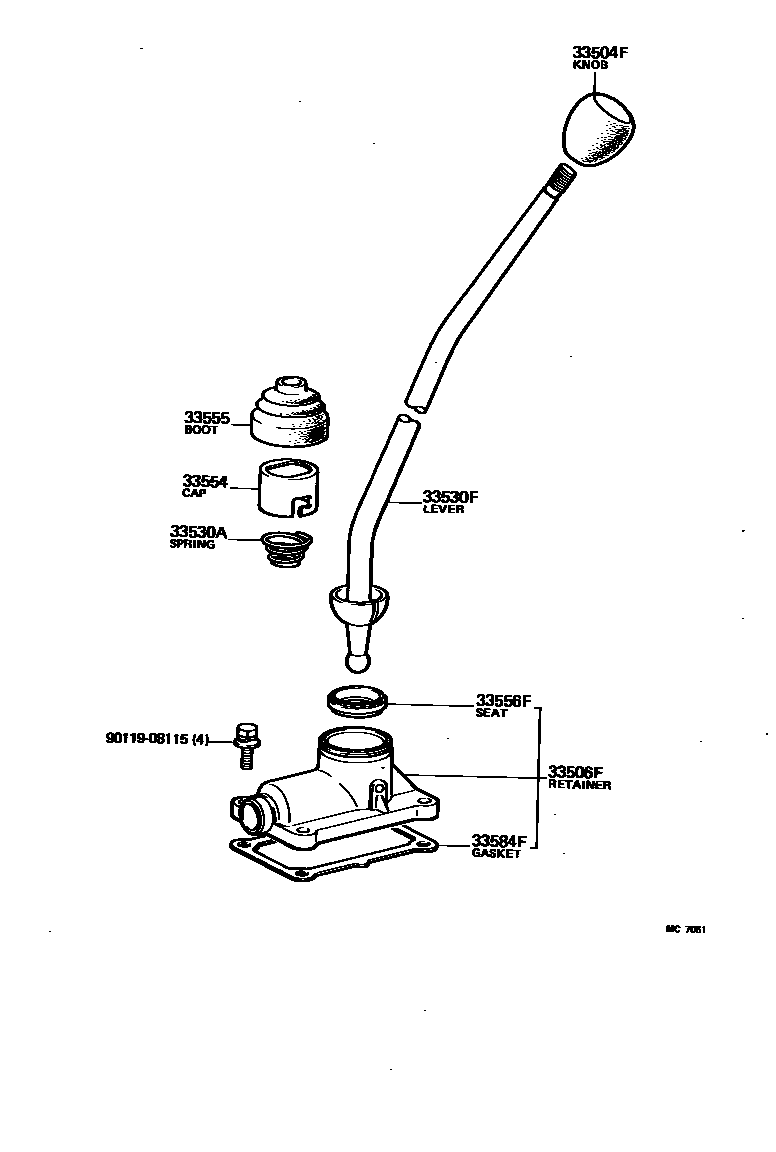

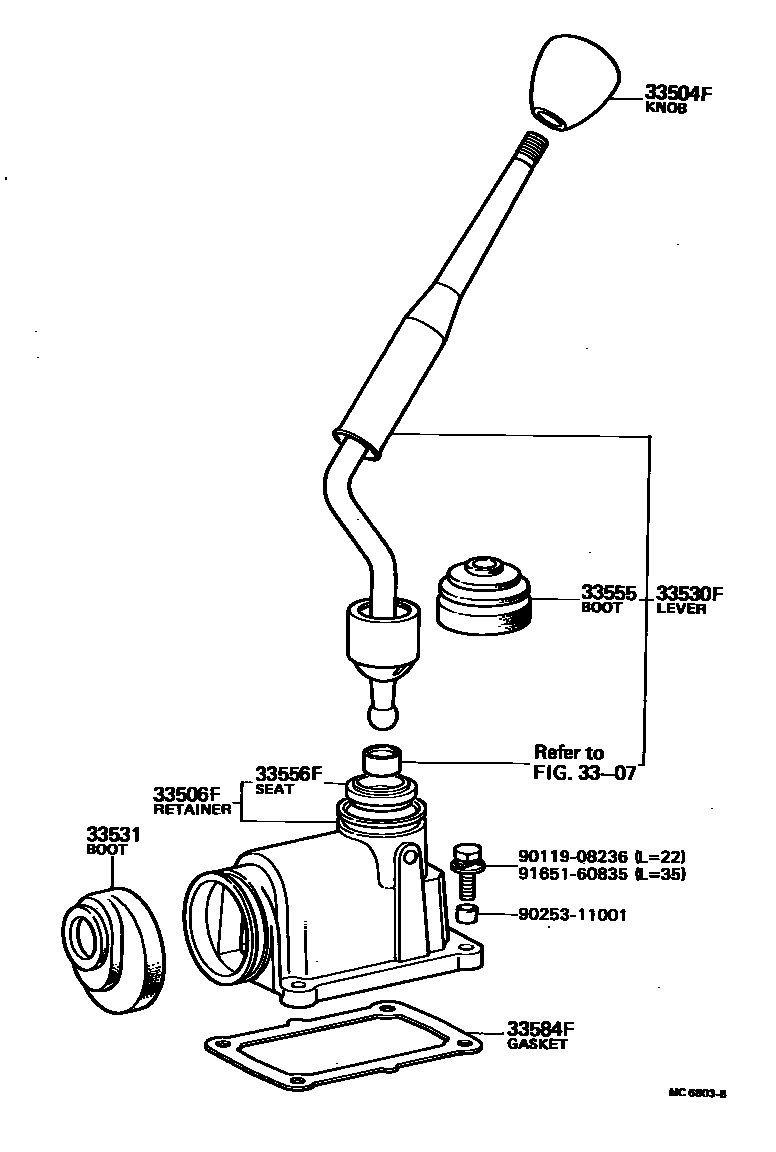

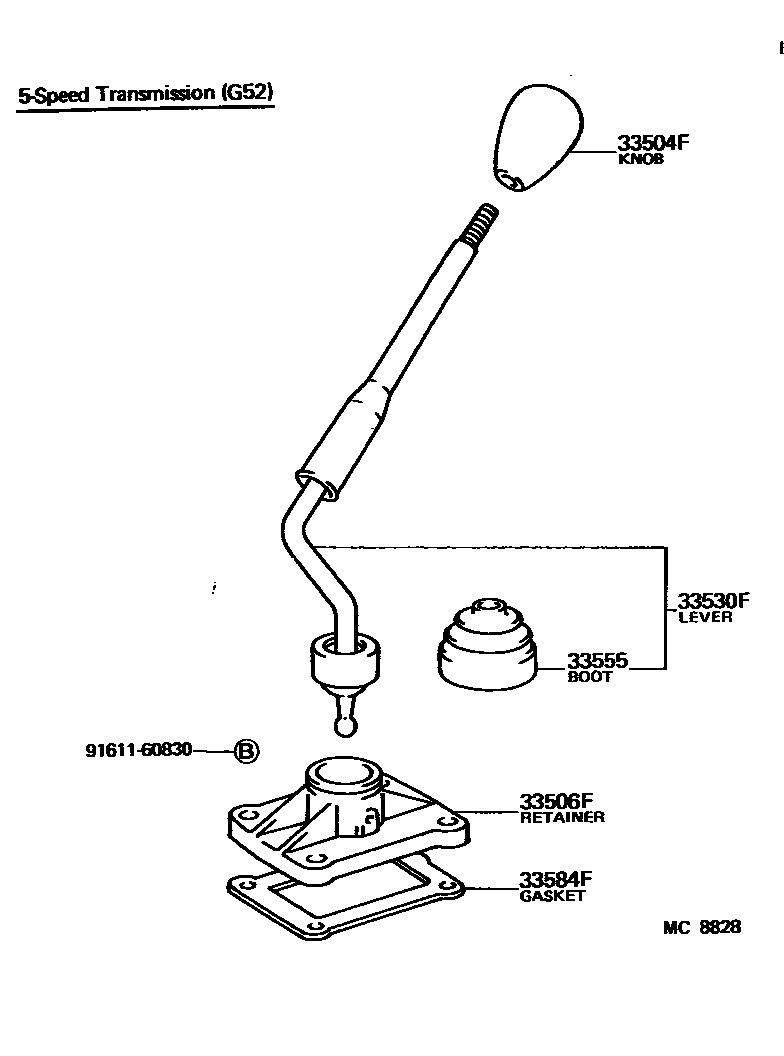

Toyota HILUX Shift Lever & Retainer — Figure 3312
Toyota HILUX EPC diagram 3312, Shift Lever & Retainer, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33504F | Shift lever handle sub-assembly | 33504-22110 |
| 33506A | Bolt (for shift lever stop) | 90109-10020 · 90109-10042 |
| 33506B | Flat washer (for shift lever stop) | 90201-11257 · 90201-13012 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33506-20030 · 33506-20031 · 33506-35010 · 33506-35020 · 33506-35040 · 33506-35060 |
| 33530A | Compression spring (for gear selector) | 90501-26629 · 90502-26001 |
| 33530F | Shift lever assembly (for floor shift) | 33530-35060 · 33541-35082 · 33541-35083 · 33541-35120 · 33541-35210 |
| 33531 | Dust boot (for shift lever) | 33531-35010 |
| 33553 | Shift lever spring seat | 33553-30010 |
| 33554 | shift lever cover | 33554-30011 · 33554-30012 |
| 33555 | Gear shift lever dust cover | 33555-30030 · 33555-35020 · 33555-35040 |
| 33556F | Transmission shift lever ball seat | 33505-35010 |
| 33584F | Shift lever stop pad (for floor shift) | 33584-35030 · 33584-35031 · 33584-35040 · 33584-35050 · 33584-60010 |
| 33615 | Shift control lever stopper bushing | 33615-20011 · 33615-20012 |
| 33686F | Control shaft boot (for floor mounted shift stop) | 33555-30020 |
