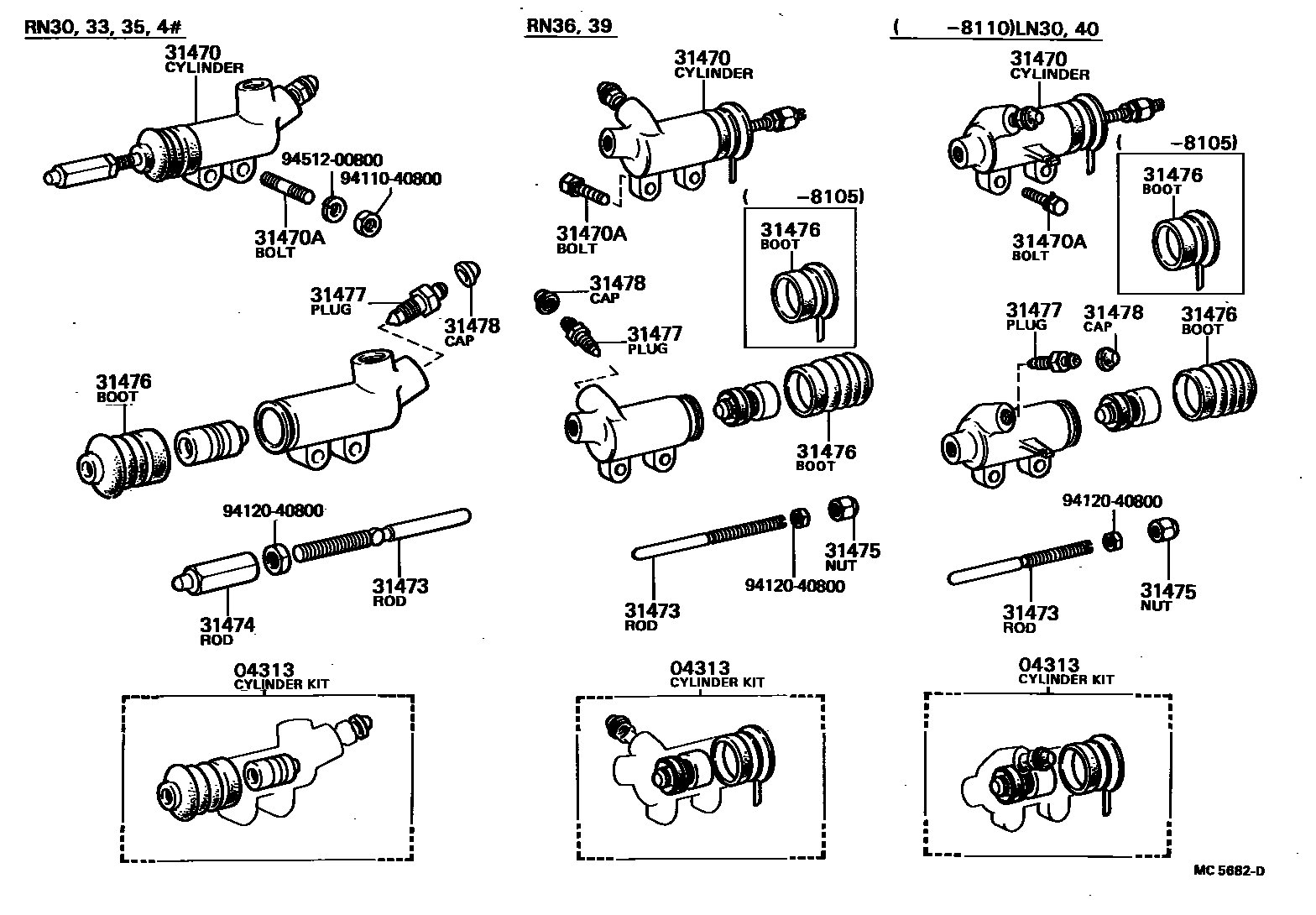

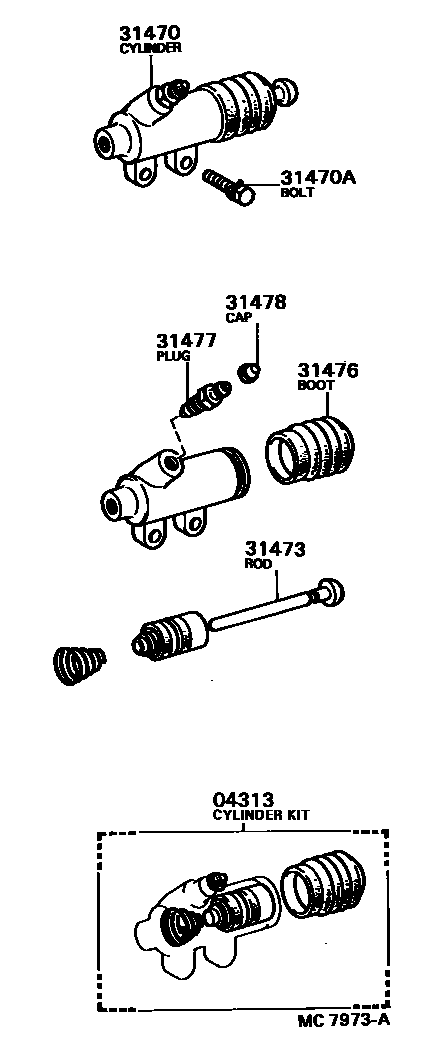

Toyota HILUX 离合器分离缸 — Figure 3105
Toyota HILUX EPC diagram 3105, 离合器分离缸, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04313 | Clutch release cylinder assembly | 04313-22020 · 04313-25010 · 04313-30054 · 04313-35030 · 04313-35040 |
| 31470 | Clutch release cylinder assembly | 31470-20091 · 31470-26020 · 31470-26030 · 31470-30120 · 31470-30220 · 31470-35030 · 31470-35060 · 31470-35080 |
| 31470A | Bolt (for securing clutch release cylinder) | 90116-08018 · 90116-08043 · 91611-60825 |
| 31473 | No. 1 clutch release cylinder push rod | 31473-22010 · 31473-25010 · 31473-30021 · 31473-35030 · 31473-35040 |
| 31474 | No. 2 clutch release cylinder push rod | 31475-35010 |
| 31475 | Clutch release cylinder push rod nut | 31475-30020 |
| 31476 | Clutch release cylinder dust boot | 31476-20040 · 31476-22010 · 31476-35020 |
| 31477 | Bleed plug (for separation cylinder) | 47547-12010 |
| 31478 | Bleed plug cap (for separator cylinder) | 31478-30010 |
