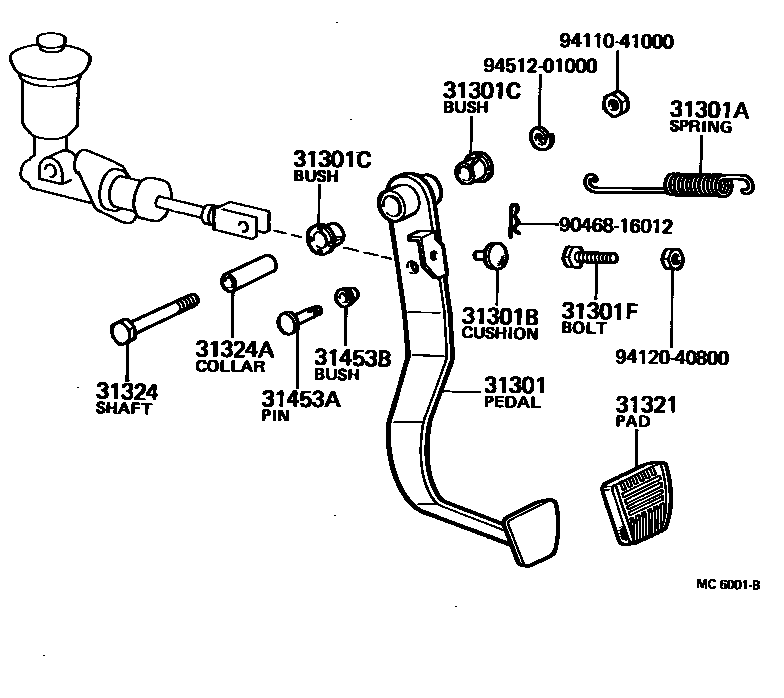

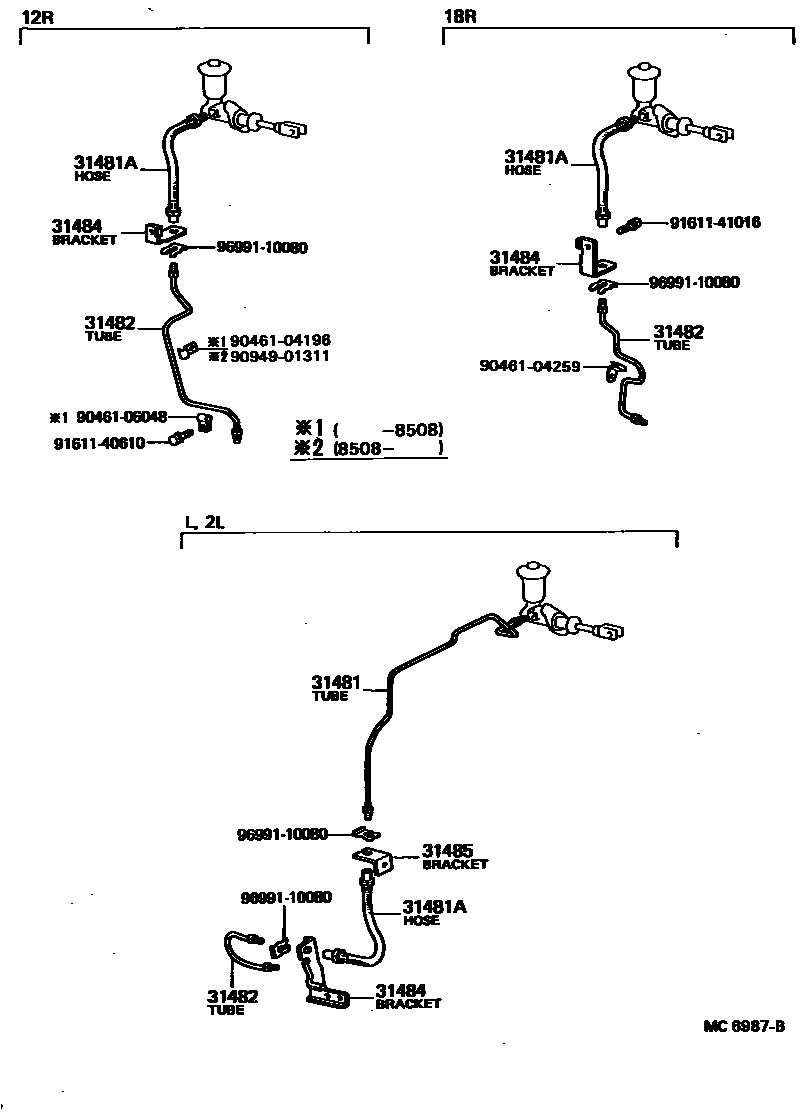

Toyota HILUX 离合器踏板和挠性软管 — Figure 3102
Toyota HILUX EPC diagram 3102, 离合器踏板和挠性软管, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-35100 |
| 31301A | Spring (for clutch pedal) | 90506-14019 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06008 |
| 31301C | Bushing (for clutch pedal) | 90386-13007 |
| 31301F | Bolt (for clutch pedal stop) | 90101-08052 · 90109-08001 |
| 31321 | clutch pedal pad | 31321-14010 · 31321-14020 |
| 31324 | clutch pedal shaft | 91121-51060 |
| 31324A | clutch pedal collar | 90387-10003 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08018 · 90249-08028 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-35150 · 31481-35151 |
| 31481A | No. 1 clutch hose | 90947-02410 · 96910-31263 · 96910-32605 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-35061 · 31482-35070 · 31482-35071 · 31482-35130 · 31482-35141 · 31482-35150 · 31482-35190 |
| 31484 | Flexible hose bracket (for clutch) | 31484-35060 · 31484-35070 · 31484-35110 · 31484-35121 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31485-35090 · 31485-35100 |
