Toyota HILUX 废气再循环系统 — Figure 2501

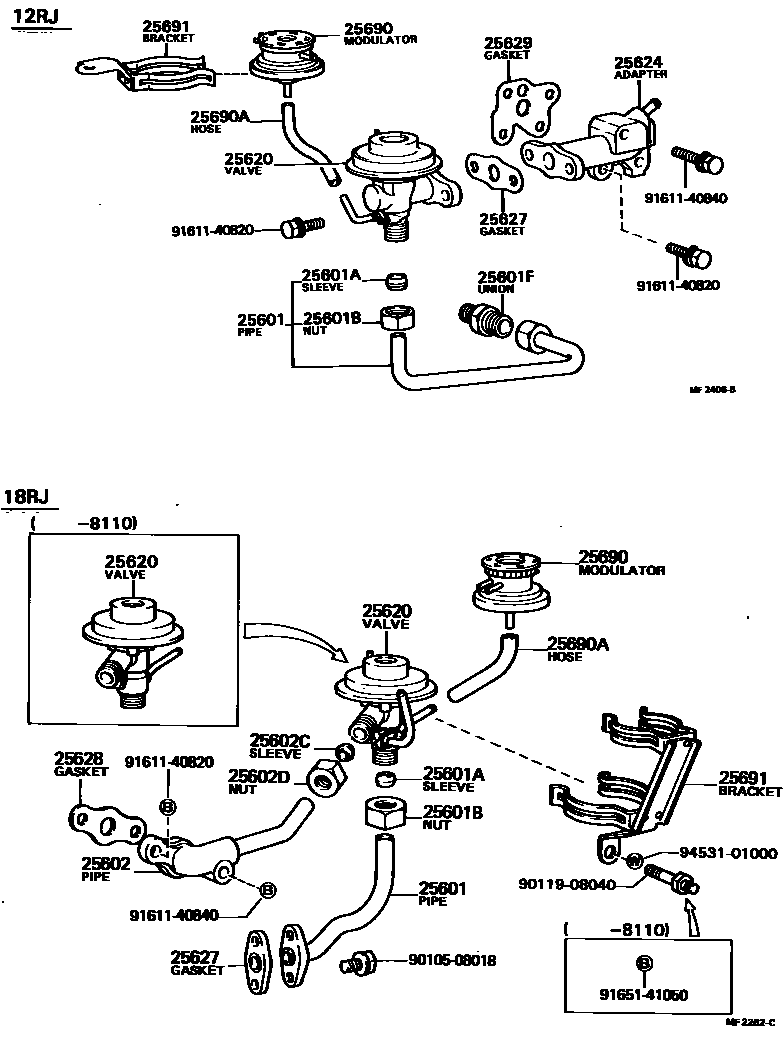

Toyota HILUX EPC diagram 2501, 废气再循环系统, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-31030 · 25601-34050 |
| 25601A | No. 1 EGR tube ball sleeve | 90410-12042 · 90410-14003 |
| 25601B | No. 1 EGR pipe connecting nut | 90402-20007 · 90402-20073 |
| 25601F | Connector (for No. 1 EGR tube) | 90404-20001 |
| 25602 | No. 2 EGR pipe assembly | 25602-34020 |
| 25602C | Ball sleeve (for No. 2 EGR tube) | 90410-12042 |
| 25602D | Connecting nut (for No. 2 EGR tube) | 96315-12009 |
| 25620 | EGR valve assembly | 25620-31040 · 25620-31050 · 25620-34180 · 25620-34210 |
| 25624 | EGR valve adapter | 25607-31030 |
| 25627 | EGR valve gasket | 25627-31020 · 90923-05012 |
| 25628 | EGR air intake gasket | 25628-34010 |
| 25629 | EGR valve adapter gasket | 25629-31020 |
| 25690 | EGR vacuum regulator assembly | 25870-31010 · 25870-34010 |
| 25690A | Hoses (for EGR vacuum regulator) | 90445-11020 · 90445-11051 |
| 25691 | EGR vacuum regulator bracket | 25691-31010 · 25691-34010 |
