Toyota HILUX fuel filter — Figure 2302

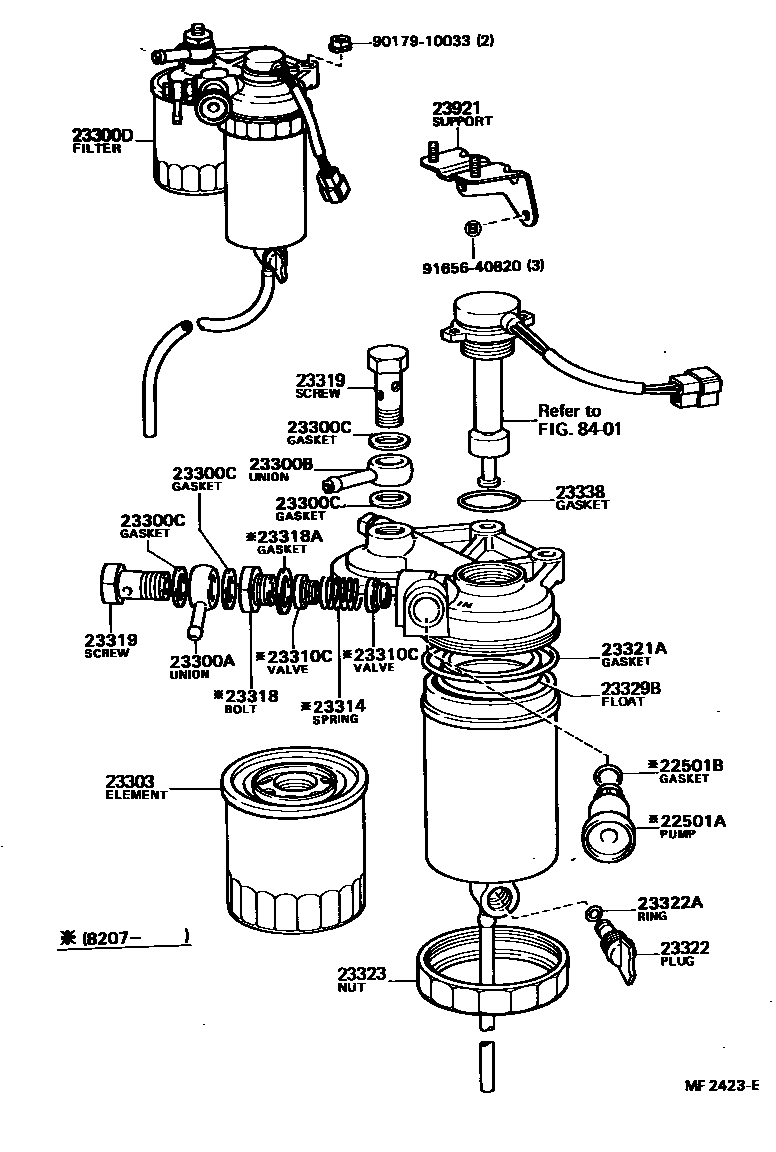

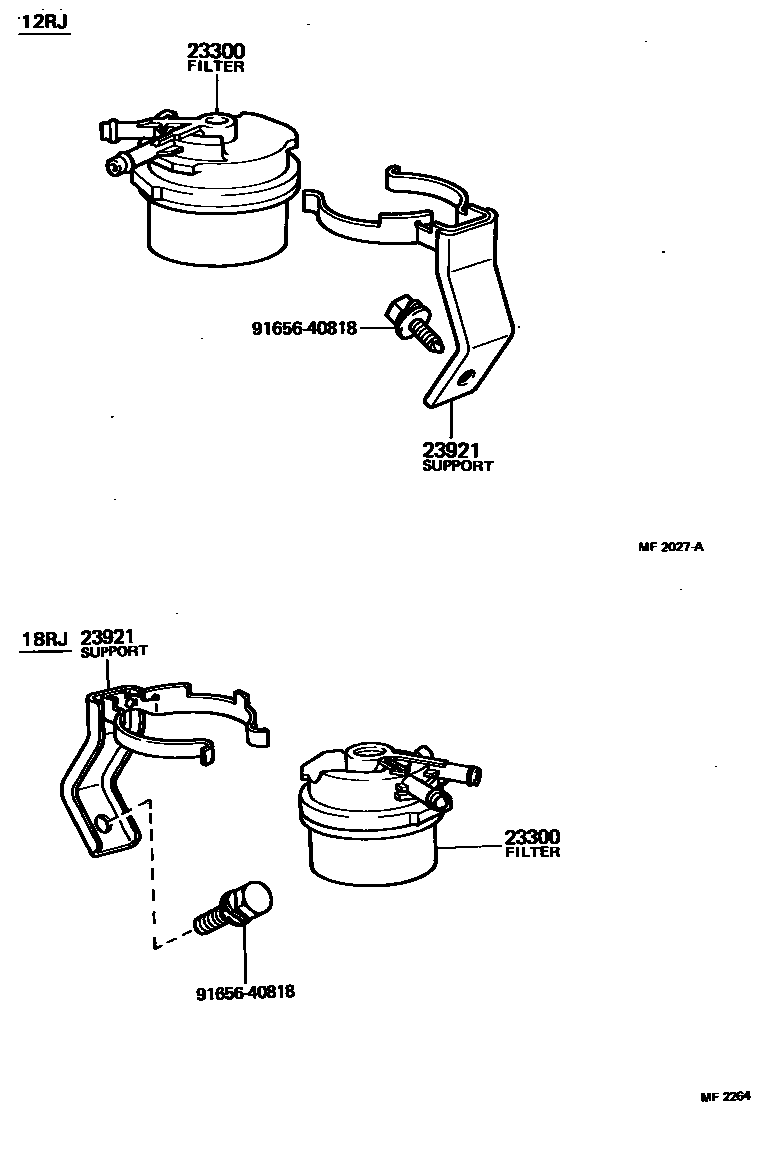

Toyota HILUX EPC diagram 2302, fuel filter, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22501A | Starting oil injection pump sub-assembly | 22501-54010 |
| 22501B | Gasket (for priming pump) | 23344-54020 |
| 23300 | fuel filter assembly | 23300-34100 |
| 23300A | Oil pipe joint (for fuel filter inlet) | 90405-08016 · 90405-08160 |
| 23300B | Oil pipe joint (for fuel filter outlet) | 90405-08016 · 90405-08160 |
| 23300C | Gasket (for fuel pipe joint) | 22447-47030 |
| 23300D | Fuel filter assembly (for diesel engine) | 23300-54040 · 23300-54041 · 23300-54042 · 23300-54043 · 23300-54080 |
| 23303 | Fuel filter element sub-assembly | 23303-54010 · 23303-54011 · 23303-54071 |
| 23310C | Fuel filter valve sub-assembly | 23316-54010 |
| 23314 | fuel filter spring | 23314-54010 |
| 23318 | Joint bolts | 23323-54020 |
| 23318A | Gasket (for joint bolts) | 15318-44010 |
| 23319 | Fuel pipe hollow screw | 90099-18011 |
| 23321A | fuel filter cover gasket | 23312-54010 |
| 23322 | Drain plug (for fuel filter) | 23322-54010 |
| 23322A | O-ring (for drain plug) | 23344-54010 |
| 23323 | Nut (for fuel filter housing bracket) | 23323-54010 |
| 23329B | Liquid level warning float | 23329-54010 |
| 23338 | Gasket (for warning switch) | 23338-54010 |
| 23921 | Fuel filter support | 23921-54030 · 23921-54031 · 90461-10340 · 90461-10396 |
