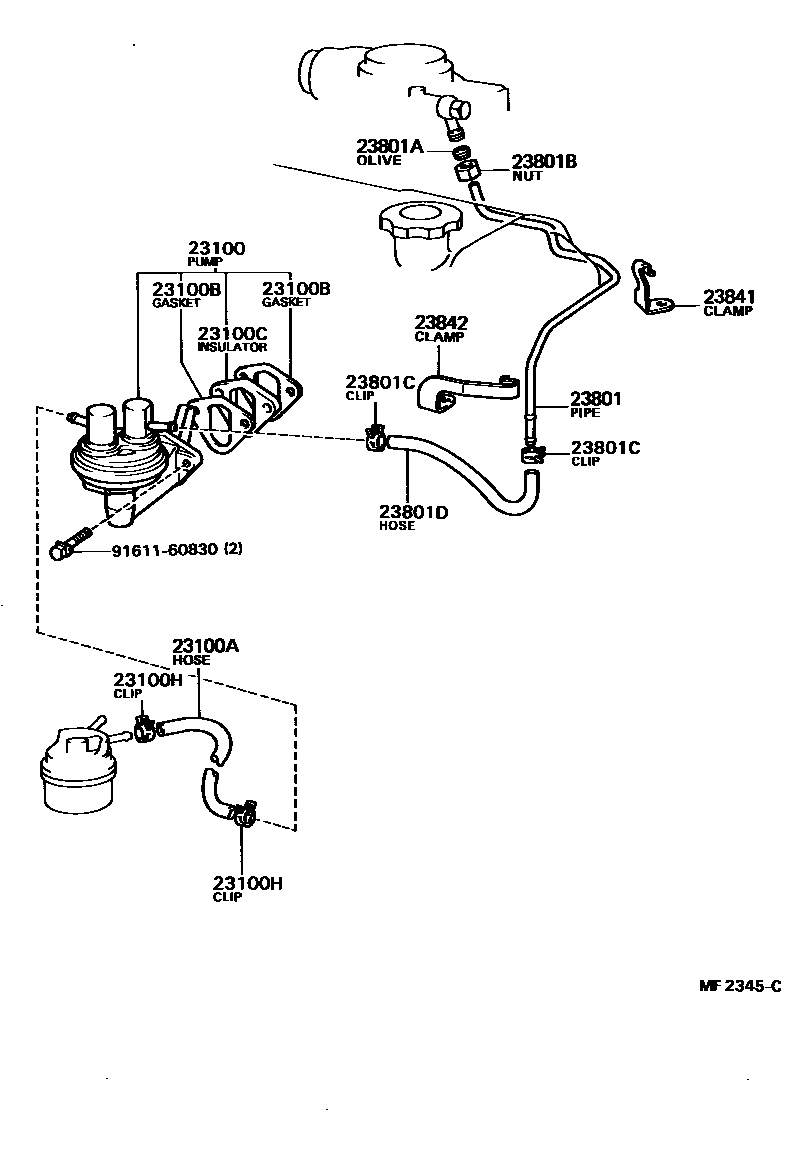

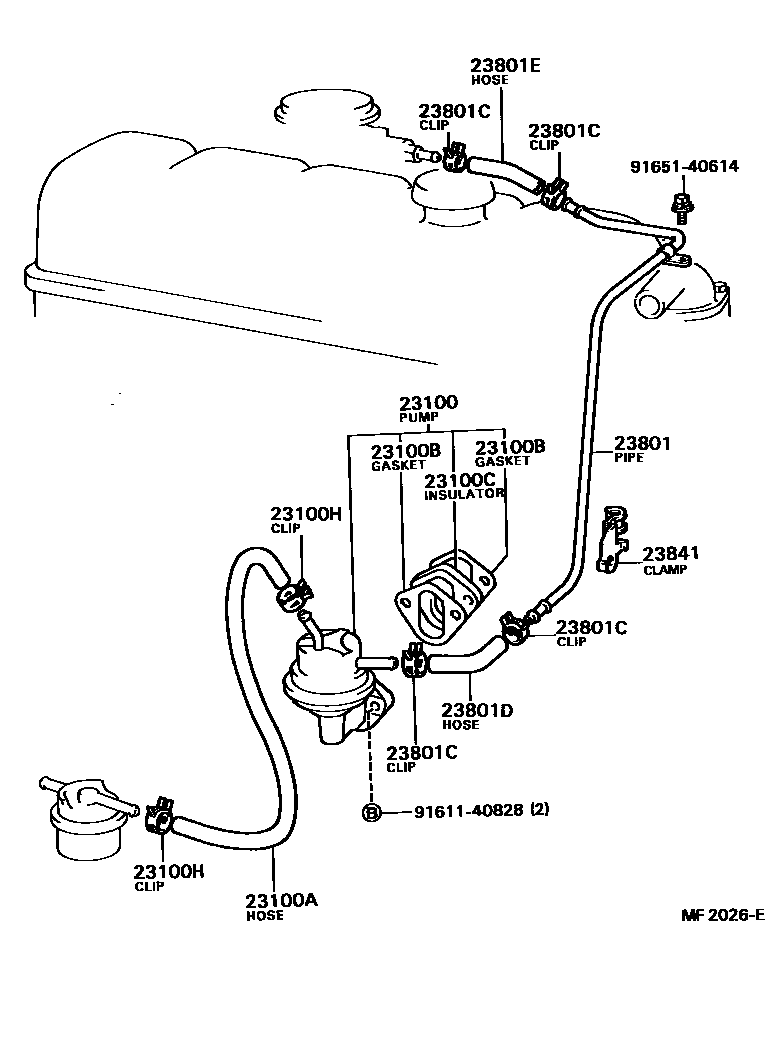

Toyota HILUX 燃油泵和燃油管 — Figure 2301
Toyota HILUX EPC diagram 2301, 燃油泵和燃油管, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23100 | fuel pump assembly | 23100-39255 · 23100-39256 · 23100-39295 · 23100-39296 |
| 23100B | fuel pump gasket | 90923-05005 |
| 23100C | Fuel pump vibration isolation pad | 90923-06001 |
