Toyota HILUX 喷油泵总成 — Figure 2202

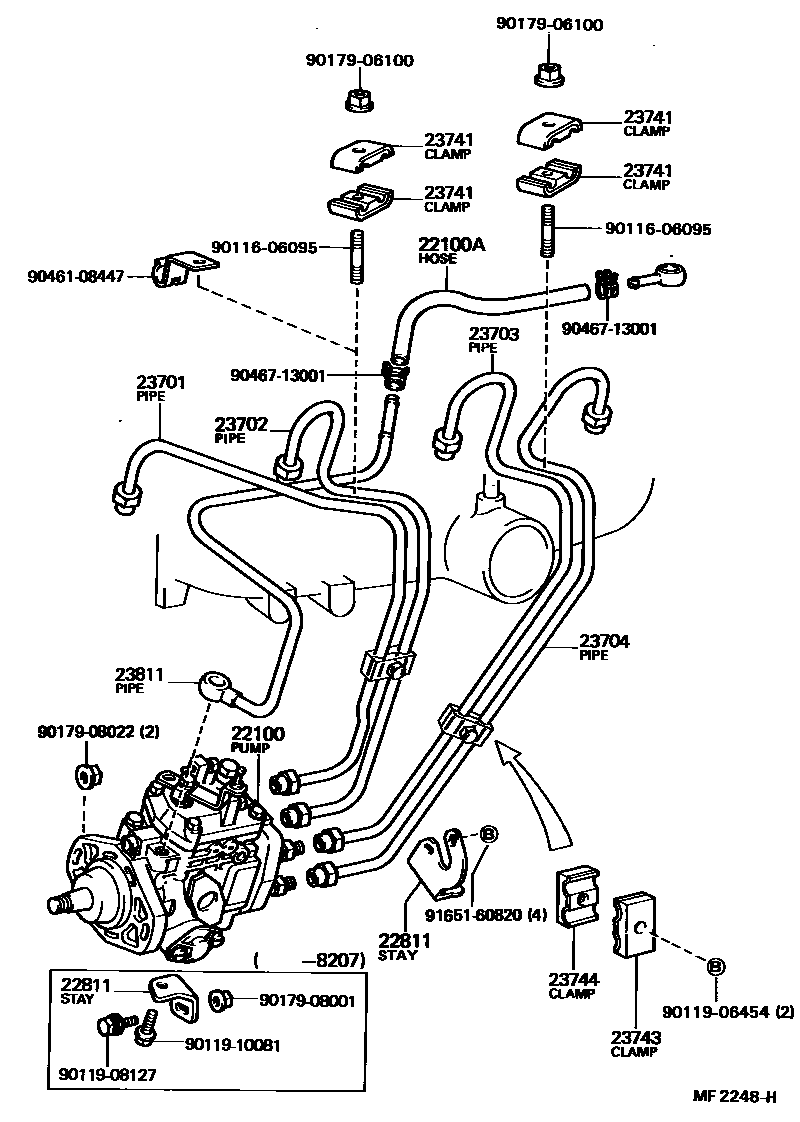

Toyota HILUX EPC diagram 2202, 喷油泵总成, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-54060 · 22100-54070 · 22100-54130 · 22100-54131 · 22100-54132 · 22100-54160 · 22100-54230 · 22100-54310 · 22100-54311 |
| 22811 | No. 1 fuel injection pump bracket | 22811-54020 · 22811-54030 · 22811-54040 · 22811-54041 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-54030 · 23701-54051 · 23701-54082 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23702-54030 · 23702-54050 · 23702-54081 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23703-54030 · 23703-54050 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23704-54030 · 23704-54050 |
| 23741 | No. 1 fuel injection pipe clamp | 23741-56010 |
| 23743 | No. 3 fuel injection pipe clamp | 23741-54010 |
| 23744 | No. 4 fuel injection pipe clamp | 23742-54010 |
| 23811 | Fuel pipe (for fuel filter to injection pump) | 23811-54040 · 23811-54050 · 23811-54051 |
