Toyota HILUX carburetor assembly — Figure 2102

Toyota HILUX EPC diagram 2102, carburetor assembly, with 1 images and 5 PNC and OE references.

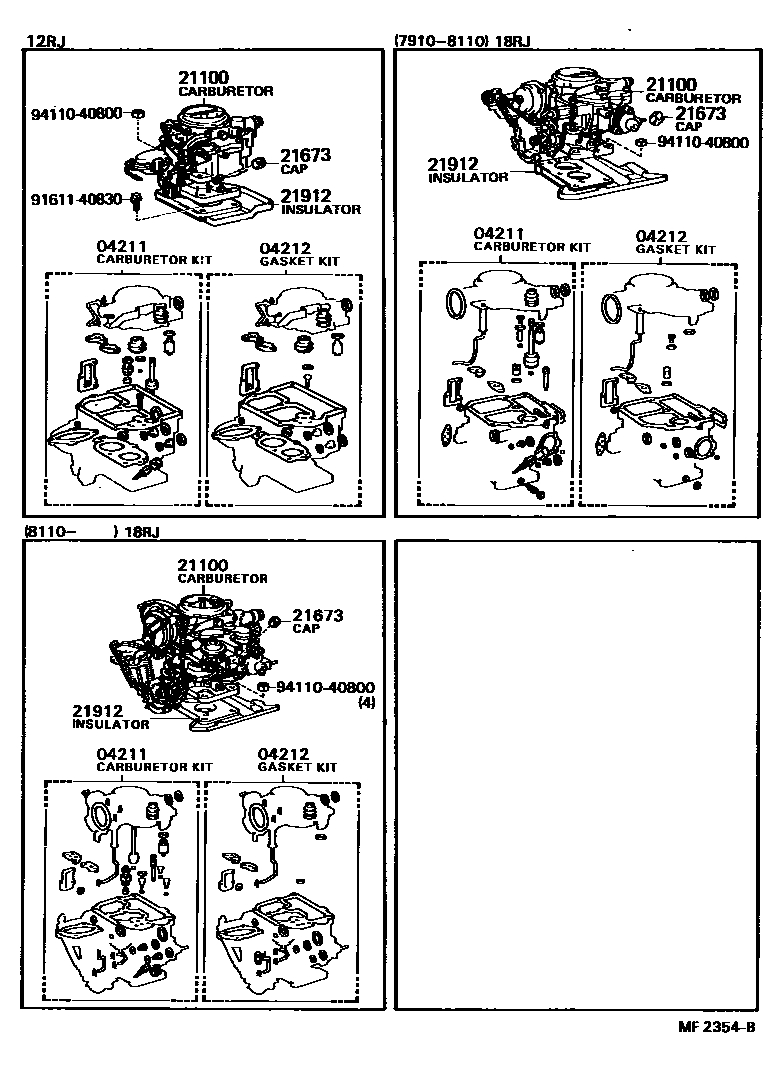

Toyota HILUX carburetor assembly EPC diagram — MF2354B
carburetor assembly — MF2354B (197808 – 999999)

PNC and OE references

PNCPart nameOE numbers
04211carburetor components04211-31280 · 04211-31370 · 04211-31390 · 04211-31450 · 04211-34270 · 04211-34290
04212carburetor gasket assembly04212-31070 · 04212-31080 · 04212-34071 · 04212-34072 · 04212-36010
21100carburetor assembly21100-31400 · 21100-31570 · 21100-31590 · 21100-31591 · 21100-34630 · 21100-34700
21673Idle speed limit cap21673-13280 · 21673-38020
21912Carburetor insulation pad21912-31061 · 21912-34070
