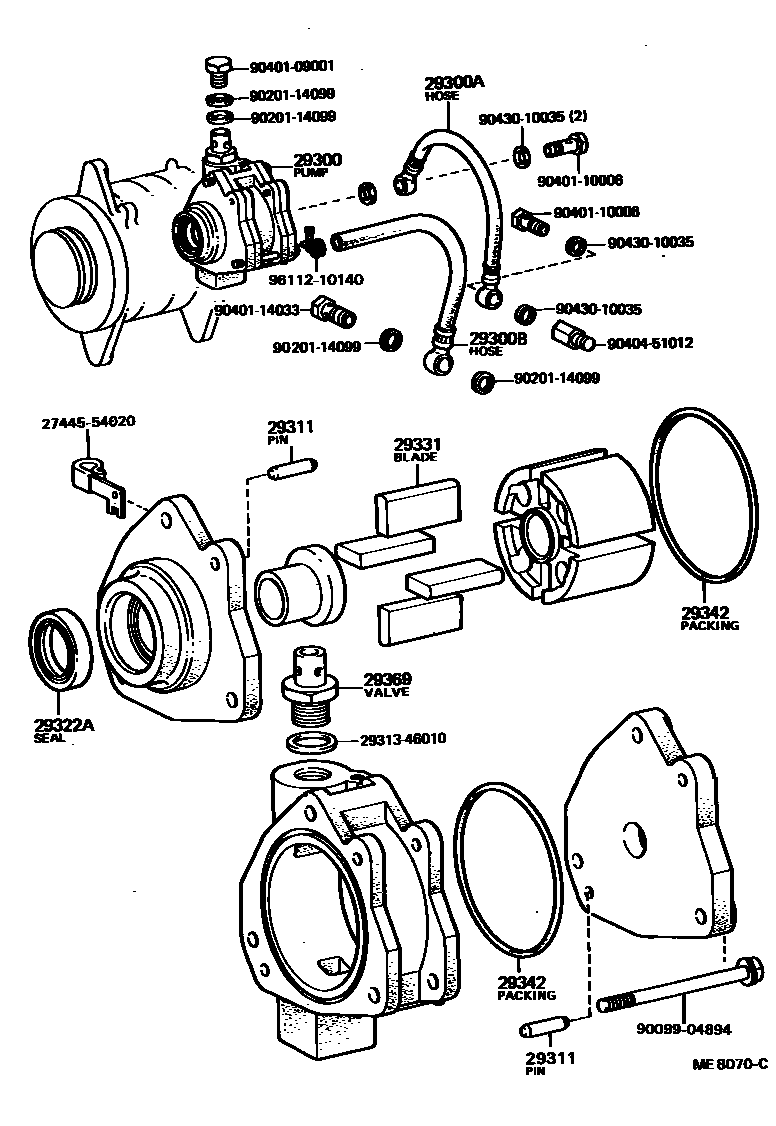

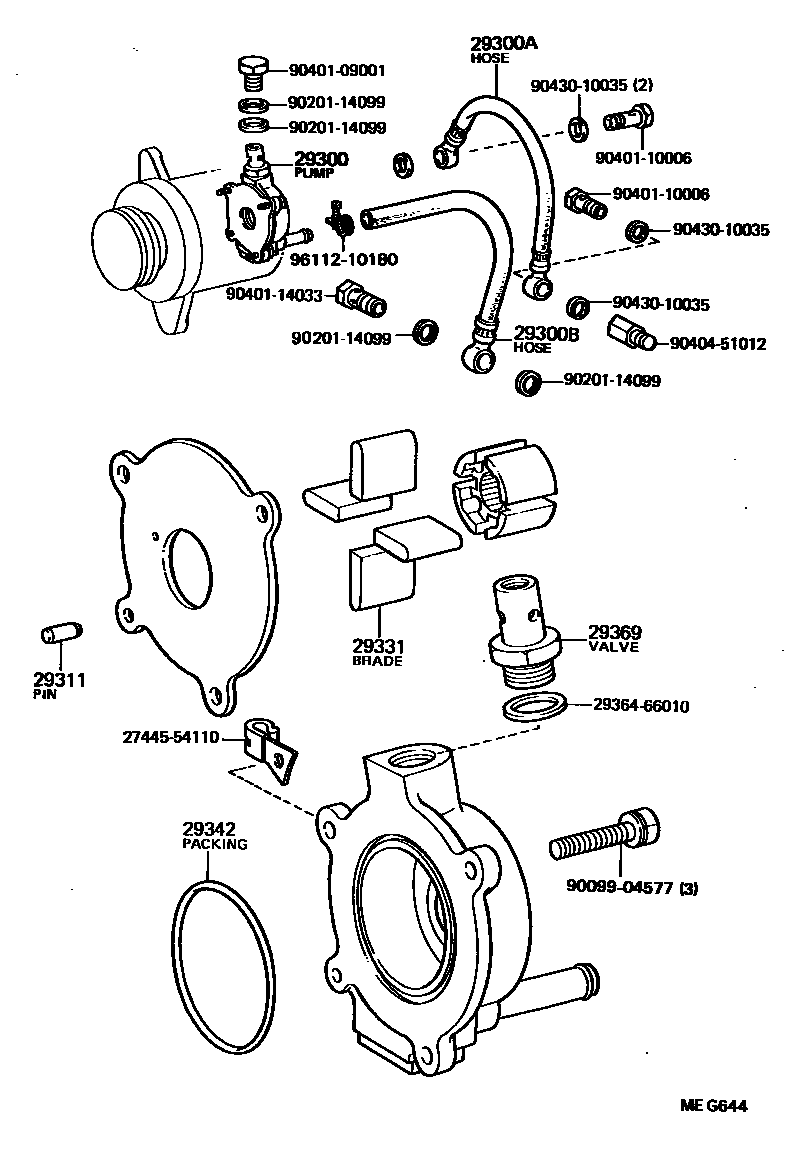

Toyota HILUX 真空泵 — Figure 1905
Toyota HILUX EPC diagram 1905, 真空泵, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 29300 | Vacuum pump assembly | 29300-54021 · 29300-54050 |
| 29300A | Vacuum pump oil inlet hose | 90923-02056 · 90923-02077 |
| 29300B | Vacuum pump oil hose | 90923-02052 · 90923-02089 |
| 29311 | No. 1 vacuum pump positioning pin | 29311-76010 · 90099-08082 |
| 29322A | Vacuum pump oil seal | 90099-15017 |
| 29331 | Vacuum pump A blade | 29331-56010 · 29331-56070 |
| 29342 | Vacuum pump seals | 96740-02063 |
| 29369 | One-way valve sub-assembly | 29369-54010 · 29369-56070 · 29369-68030 |
