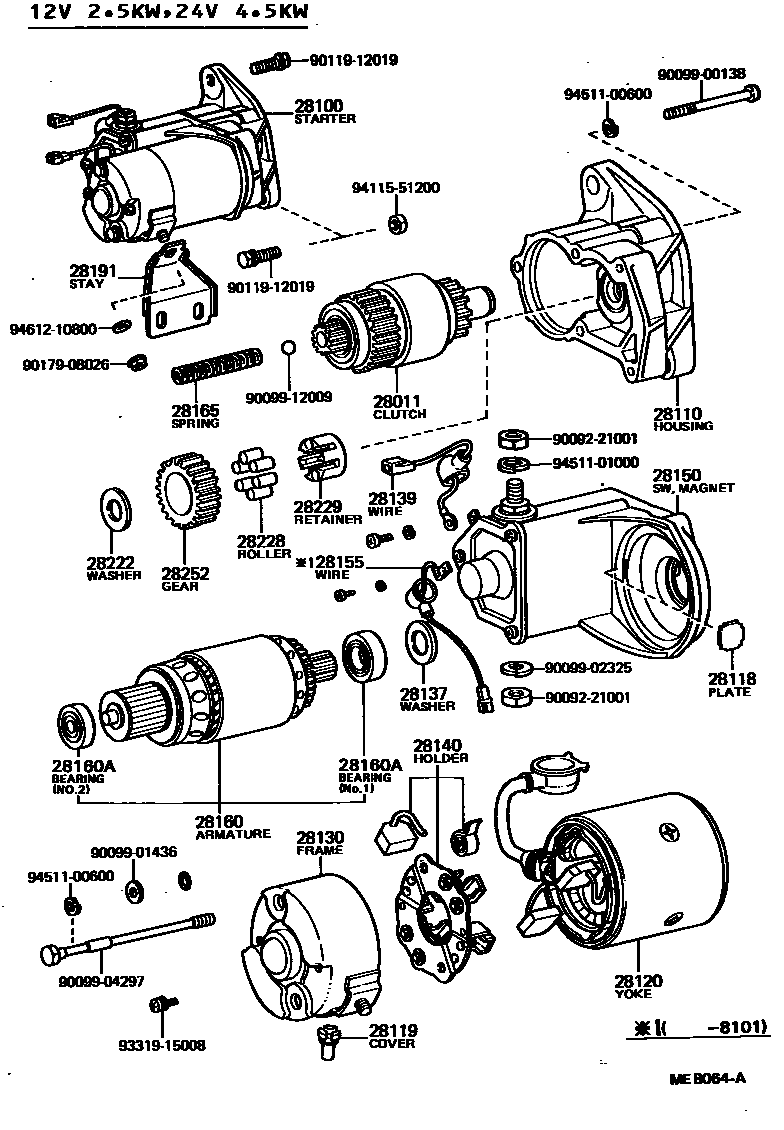

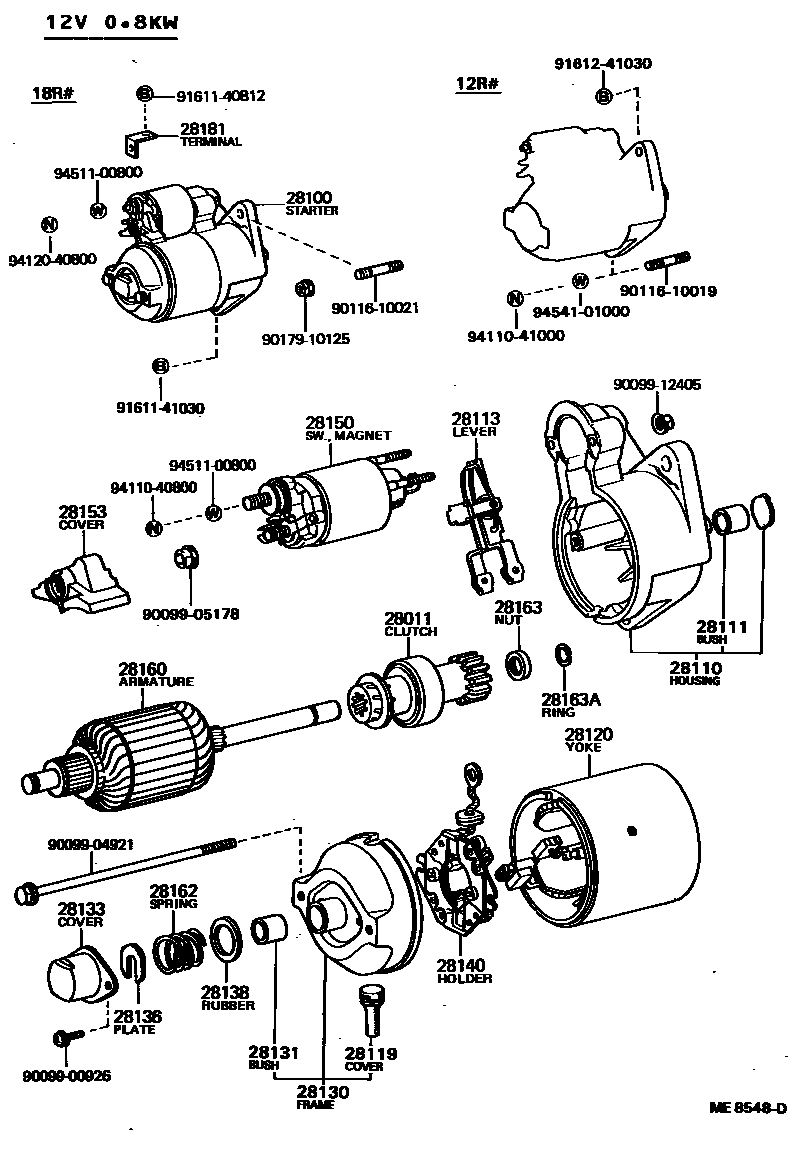

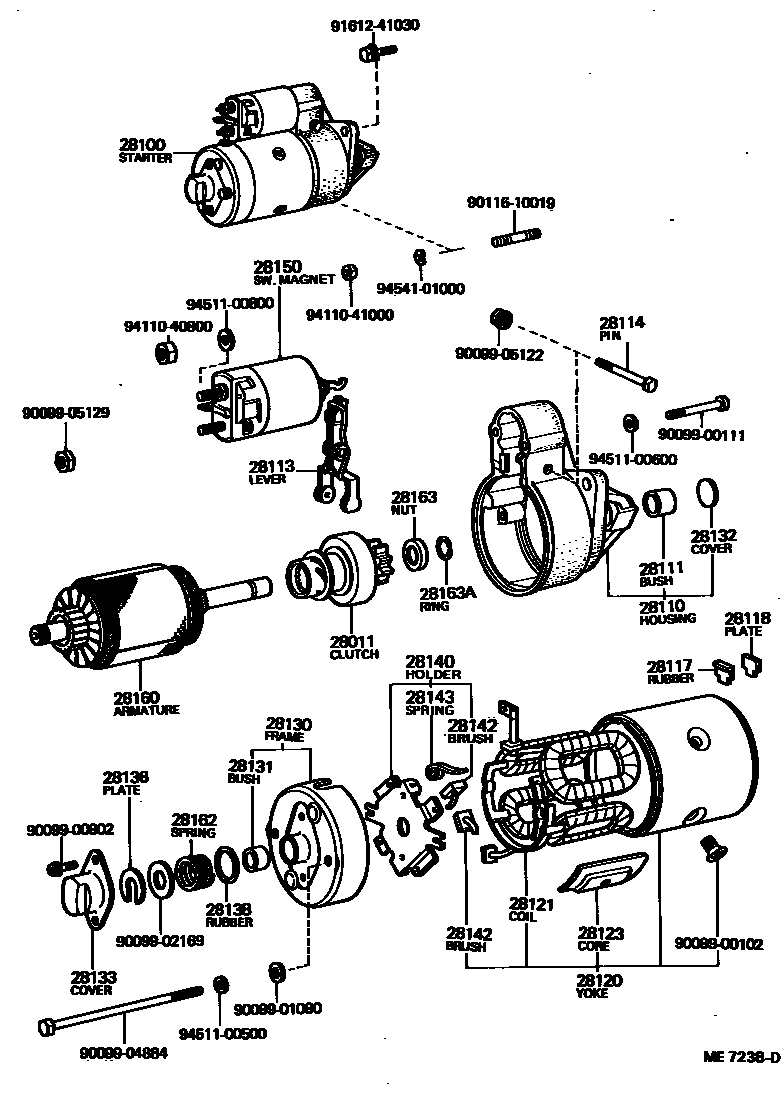

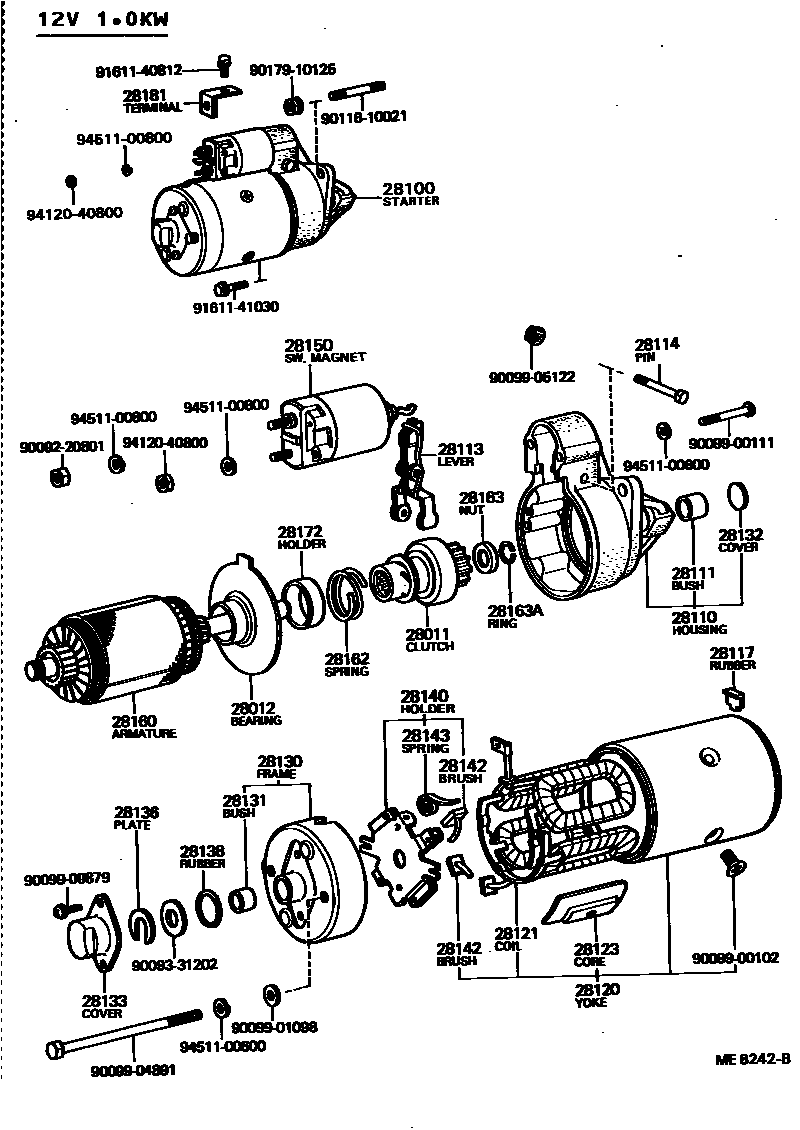

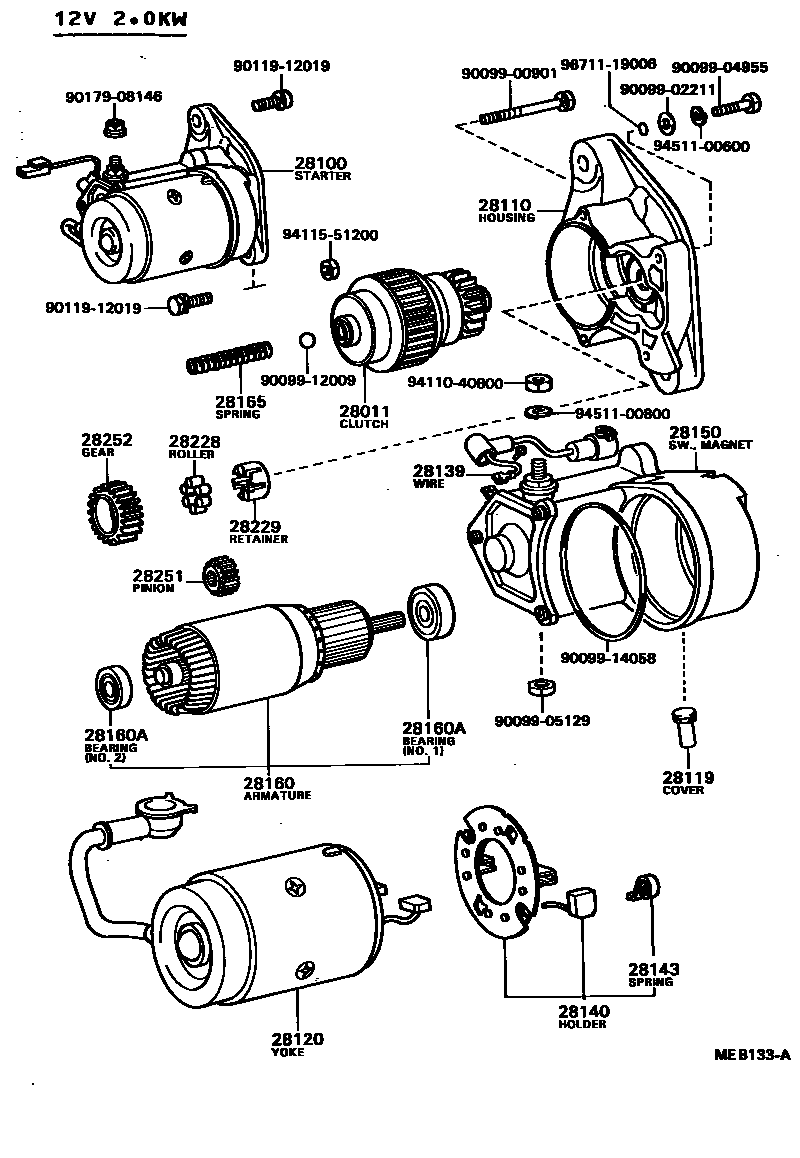

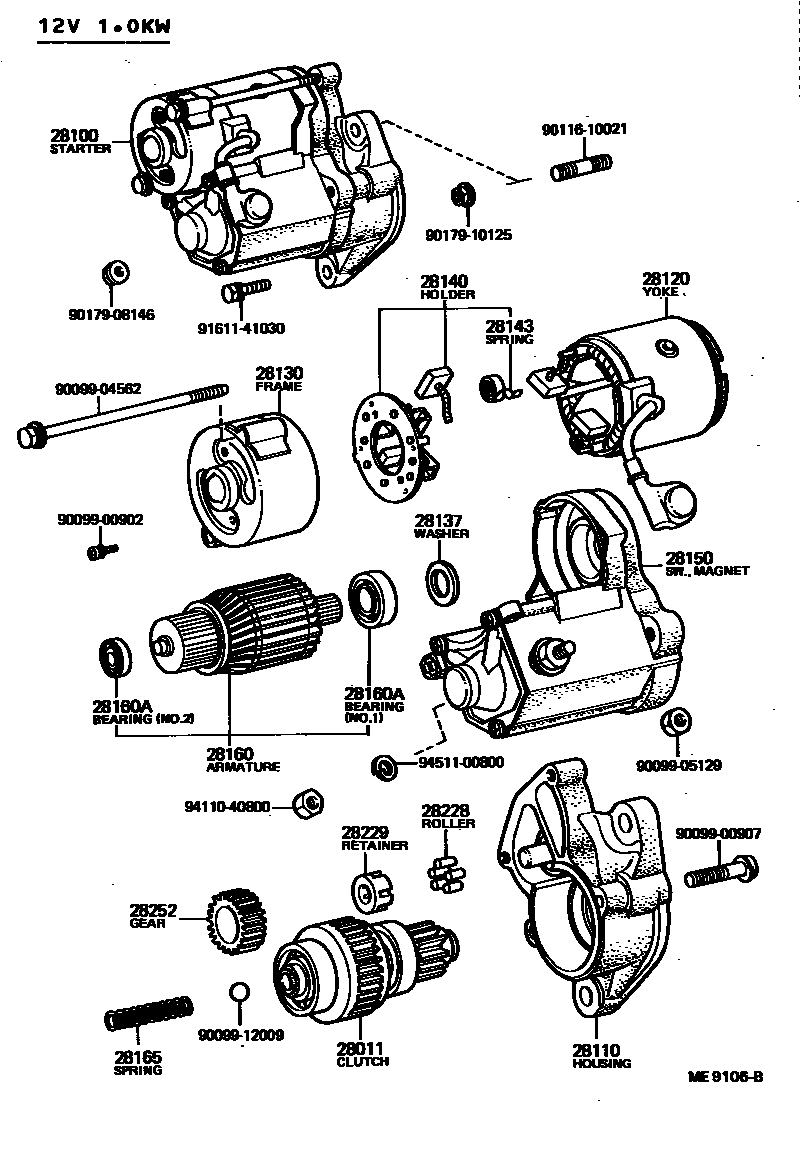

Toyota HILUX 起动机 — Figure 1904
Toyota HILUX EPC diagram 1904, 起动机, with 6 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-15010 · 28011-26042 · 28011-41011 · 28011-41020 · 28011-54010 · 28011-54070 |
| 28012 | Intermediate bearing sub-assembly | 28126-33021 |
| 28100 | Starter assembly | 28100-31020 · 28100-31021 · 28100-34070 · 28100-34080 · 28100-37010 · 28100-37011 · 28100-40015 · 28100-54023 · 28100-54032 · 28100-54042 · 28100-54061 · 28100-54090 · 28100-54100 |
| 28110 | Starter drive end housing assembly | 28110-31020 · 28110-34080 · 28110-37010 · 28110-40030 · 28110-40061 · 28115-54010 · 28115-54011 · 28115-54070 |
| 28111 | Bushing (for starter housing) | 28111-51011 |
| 28113 | starter pinion drive rod | 28113-15011 · 28113-41011 |
| 28114 | starter drive lever | 28114-41011 |
| 28117 | Rubber sheet (for starter yoke) | 28117-41013 · 28117-41020 |
| 28118 | Plate (for starter yoke) | 28118-41013 · 28118-77090 |
| 28119 | Starter end frame cover | 28119-54070 · 28199-77090 |
| 28120 | Starter yoke assembly | 28120-15010 · 28120-26070 · 28120-26071 · 28120-34070 · 28120-36040 · 28120-47040 · 28120-54070 · 28120-77090 |
| 28121 | starter excitation coil | 28121-34070 · 28121-36040 · 28121-42020 |
| 28123 | Starter pole core | 28123-40012 · 28123-41020 |
| 28130 | Starter commutator end frame assembly | 28130-13020 · 28130-21011 · 28130-34060 · 28130-37010 · 28130-41020 · 28130-54060 |
| 28131 | Commutator end frame bushing | 28131-20010 · 90099-10039 · 90099-10040 · 90099-10134 |
| 28132 | Starter bearing cap (for drive end housing) | 28166-41011 |
| 28133 | Bearing caps (for end frame caps) | 28132-15010 · 28132-40010 · 28132-41011 |
| 28136 | starter lock plate | 28136-15010 · 28136-40010 · 28136-41011 |
| 28137 | Starter felt pad gasket | 90099-02205 · 90099-02323 |
| 28138 | Rubber sheet (for starter bearing cap) | 28138-15010 · 28138-40010 · 28138-41011 |
| 28139 | Lead No. 1 (for starter) | 28139-54023 · 28139-54090 · 28139-54100 · 28139-77090 |
| 28140 | Starter brush holder assembly | 28140-15010 · 28140-25020 · 28140-26070 · 28140-41012 · 28140-54070 · 28140-77090 |
| 28142 | starter brush | 28142-21010 · 28142-25020 · 28142-25021 |
| 28143 | starter brush spring | 28143-40010 · 90099-17112 · 90099-17115 |
| 28150 | Starter electromagnetic switch assembly | 28150-15012 · 28150-33020 · 28150-33021 · 28150-34070 · 28150-34080 · 28150-37010 · 28150-54011 · 28150-54022 · 28150-54031 · 28150-54041 · 28150-54051 · 28150-54070 |
| 28153 | Electromagnetic switch cover | 28159-15010 |
| 28155 | Switch connection leads | 28139-54030 |
| 28160 | Starter armature assembly | 28160-15010 · 28160-26070 · 28160-40014 · 28160-41020 · 28160-47040 · 28160-54070 · 28160-77090 |
| 28160A | starter armature bearing | 28253-45020 · 28253-54070 · 90099-10107 · 90099-10113 · 90099-10119 · 90099-10131 |
| 28162 | starter brake spring | 28162-15010 · 28162-41011 |
| 28163 | Starter pinion snap nut or snap ring | 28163-40011 |
| 28163A | Snap ring (for starter pinion stop nut) | 90099-07047 |
| 28165 | Starter solenoid switch return spring | 28165-26040 · 28165-77090 |
| 28172 | Starter spring retainer | 28172-41021 |
| 28181 | starter terminal | 28181-20011 |
| 28191 | starter bracket | 28191-54010 |
| 28222 | Starter idler clutch washer | 28222-77090 |
| 28228 | Starter idler clutch roller | 28228-26040 · 28228-56080 |
| 28229 | Starter idler gear fixing | 28229-26040 · 28229-56080 |
| 28251 | Starter drive pinion | 28251-54070 |
| 28252 | starter idler gear | 28254-45020 · 28254-54070 · 28254-77090 |
