Toyota HILUX 分电器 — Figure 1902

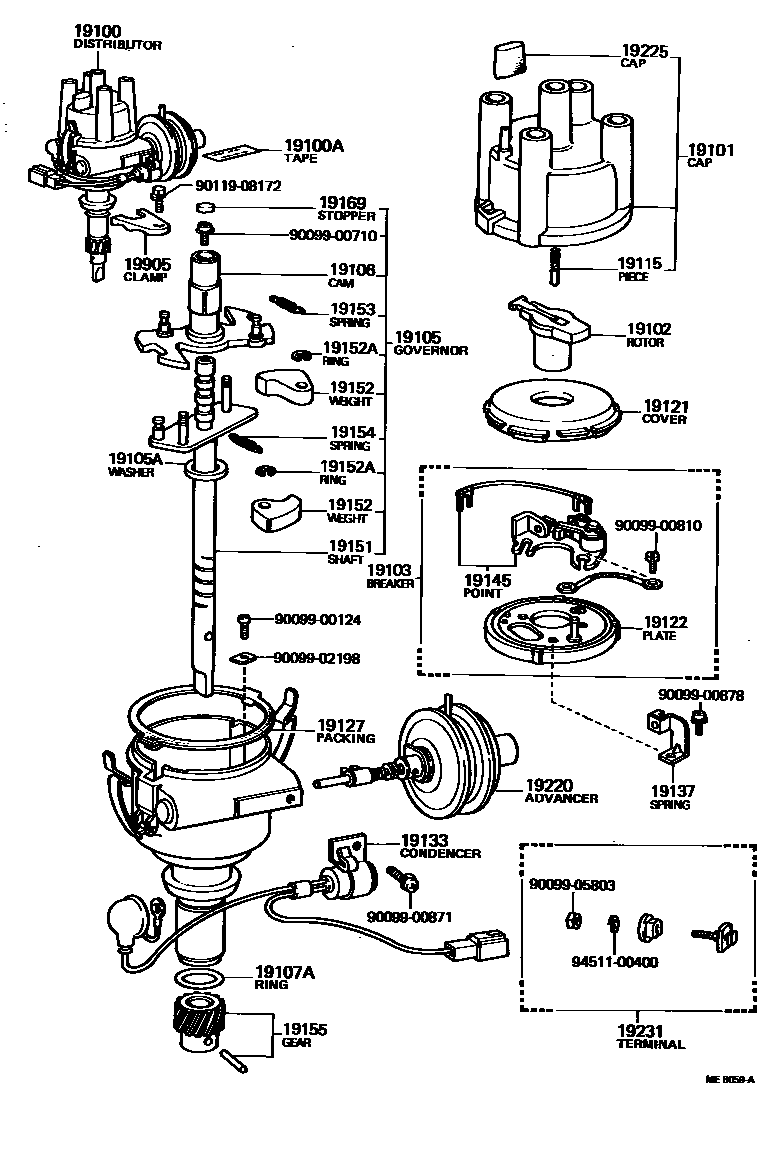

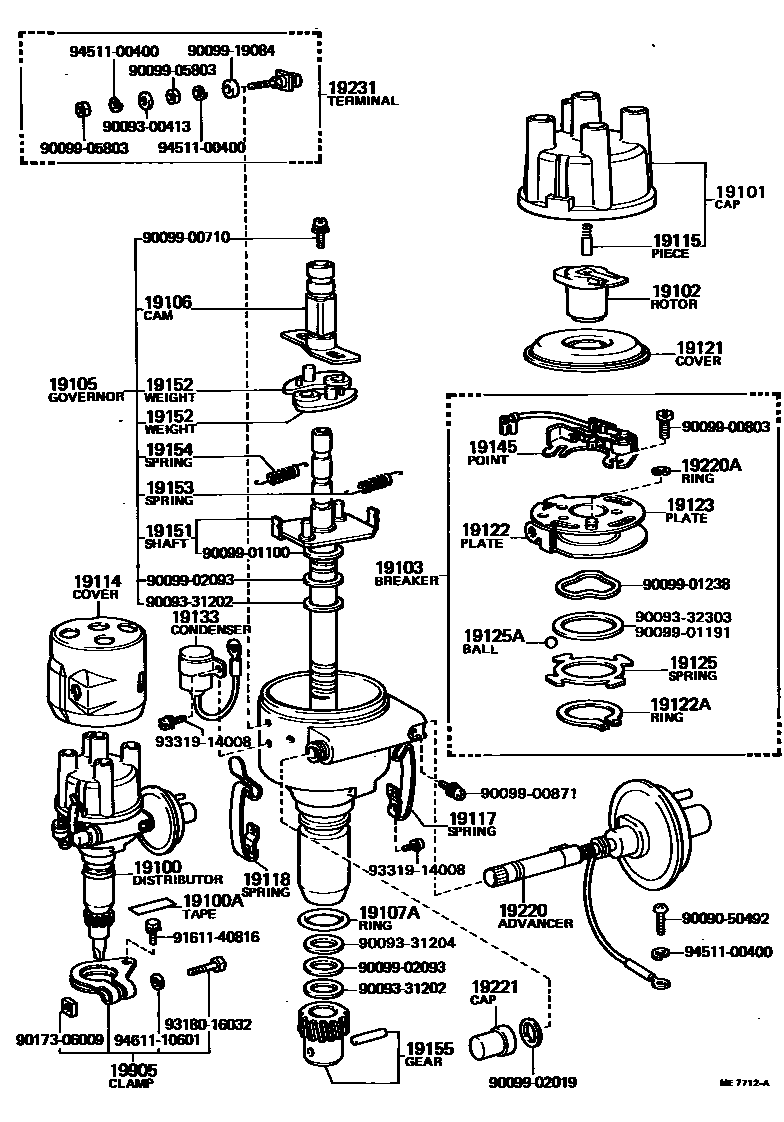

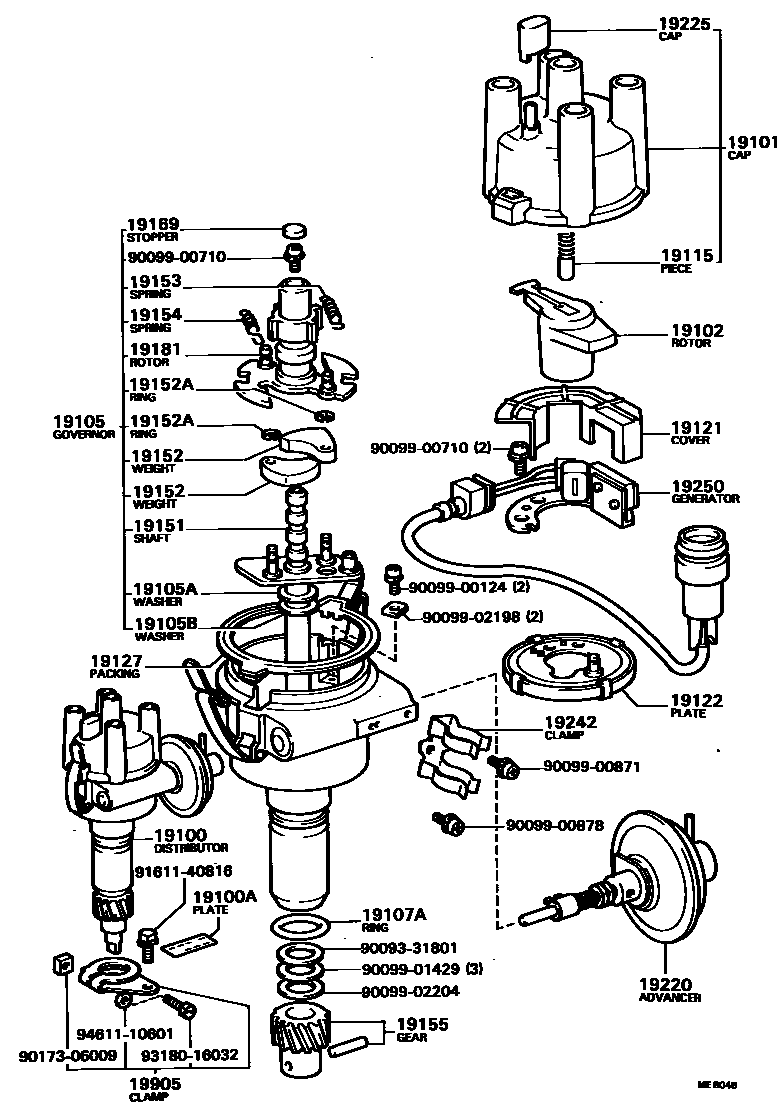

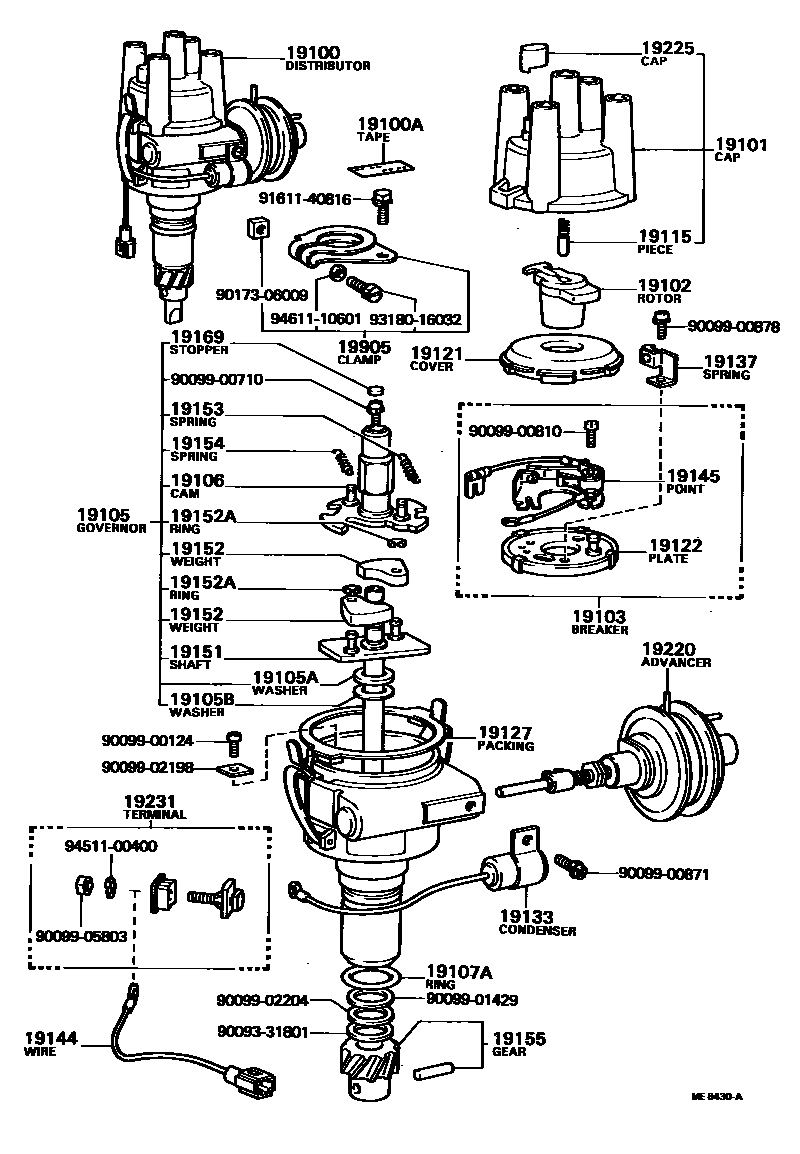

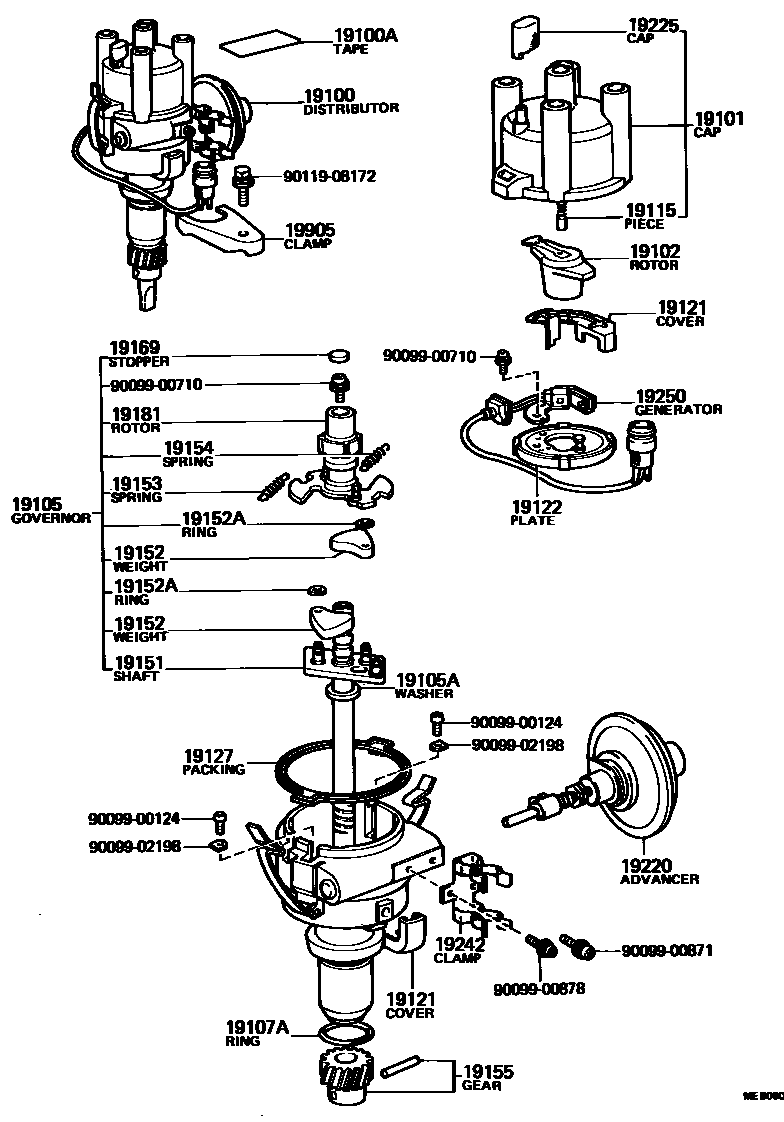

Toyota HILUX EPC diagram 1902, 分电器, with 5 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19100-31021 · 19100-31120 · 19100-31160 · 19100-34280 · 19100-34340 |
| 19100A | sealing tape | 90919-24004 |
| 19101 | Distributor cover sub-assembly | 19101-25070 · 19101-31013 |
| 19102 | Distributor flame head sub-assembly | 19102-22010 · 19102-22012 · 19102-33012 |
| 19103 | Distributor breaker sub-assembly | 19103-22011 · 19103-33013 |
| 19105 | Speed governor sub-assembly | 19105-31021 · 19105-31120 · 19105-31160 · 19105-34190 · 19105-34340 |
| 19105A | Thrust washer (for governor shaft) | 90099-01385 · 90099-01386 · 90099-01387 · 90099-01412 |
| 19105B | Thrust Washer No. 2 (for governor shaft) | 90099-01429 |
| 19106 | Distributor cam sub-assembly | 19106-31010 · 19106-31030 · 19106-34120 |
| 19107A | Distributor housing O-ring | 90099-14020 |
| 19114 | Waterproof cover (for distributor) | 19114-31010 |
| 19115 | Distributor cover center piece | 19115-50010 |
| 19117 | Distributor cover spring A | 19117-30030 |
| 19118 | Distributor cover spring B | 19118-30030 |
| 19121 | dust cover | 19121-10010 · 19121-38030 · 19121-38210 · 19121-44170 |
| 19122 | Distributor fixing plate | 19122-29021 · 19122-33013 · 19122-45070 |
| 19122A | Snap ring (for distributor fixing plate) | 90099-07081 |
| 19123 | Distributor breaker board | 19123-41011 |
| 19125 | Spring (for distributor fixing plate) | 19125-30010 |
| 19125A | Distributor fixing plate steel ball | 90099-12003 |
| 19127 | Dust seal | 19127-15010 · 19127-88251 |
| 19133 | Distributor capacitor | 90099-52059 · 90099-52060 · 90099-52062 |
| 19137 | Shock absorber spring sub-assembly | 19137-33012 |
| 19144 | Distributor breaker lead | 19144-34180 |
| 19145 | Distributor contacts | 19145-26060 |
| 19151 | governor shaft | 19151-22031 · 19151-24081 · 19151-31070 · 19151-33011 · 19151-44170 |
| 19152 | Speed regulator weight | 19152-44170 · 19152-45060 · 19152-87104 |
| 19152A | Snap ring (for governor weight) | 90099-07104 · 90099-07109 |
| 19153 | A governor spring | 19153-31021 · 19153-31120 · 19153-31160 · 19153-34190 · 19153-34340 |
| 19154 | B governor spring | 19154-31021 · 19154-31120 · 19154-31160 · 19154-34190 · 19154-34340 |
| 19155 | Distributor spiral gear | 19195-31020 · 19195-31031 · 19195-33011 |
| 19169 | Cam grease stop | 19169-32010 |
| 19181 | Distributor signal distributor | 19181-26231 · 19181-31160 |
| 19220 | Distributor vacuum advance device assembly | 19220-31020 · 19220-31120 · 19220-31160 · 19220-34280 · 19220-34340 |
| 19220A | Snap ring (for distributor vacuum advance device) | 90099-07104 |
| 19221 | Distributor regulator cover | 19221-30030 |
| 19225 | rubber cap | 19225-25070 |
| 19231 | Distributor terminals | 19231-22010 · 19231-24140 |
| 19242 | Cable clip | 19242-34340 · 19242-88272 |
| 19250 | Signal generator assembly | 19250-13150 · 19250-34340 |
| 19905 | Distributor clip sub-assembly | 19905-40010 · 19955-33010 |
