Toyota HILUX 点火线圈和火花塞 — Figure 1901
Toyota HILUX EPC diagram 1901, 点火线圈和火花塞, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

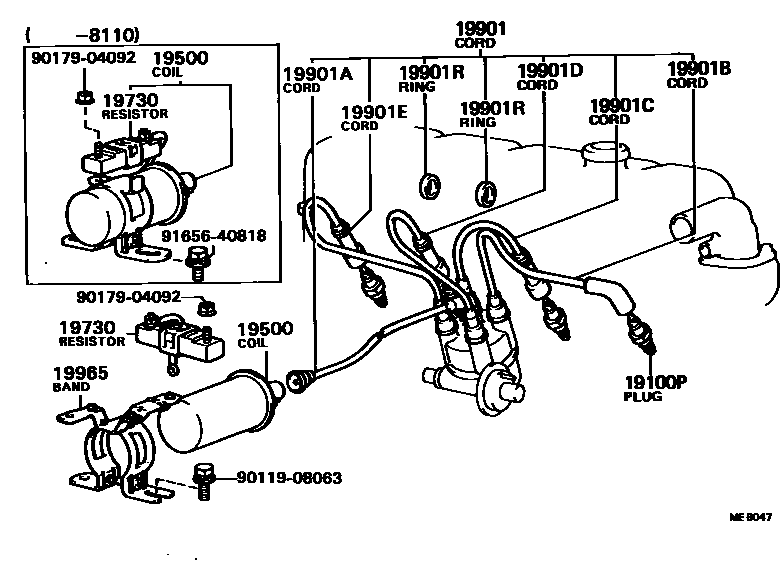

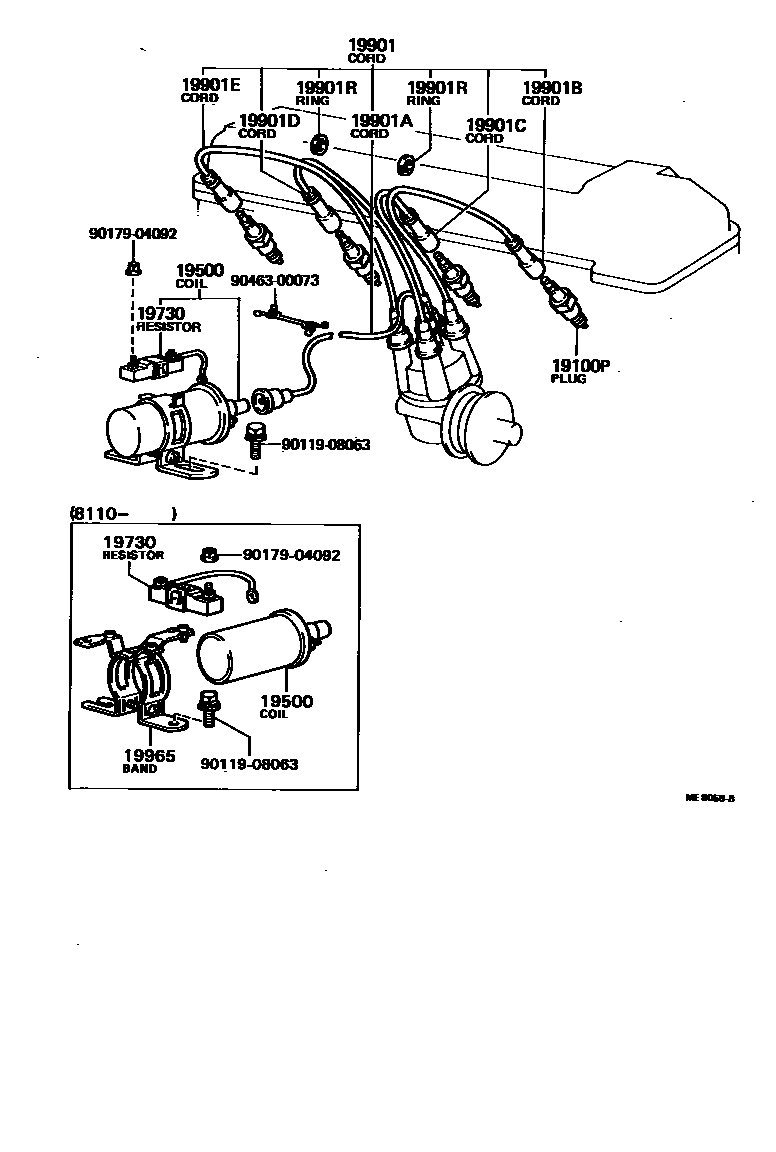

| 19100P | spark plug | 90919-01056 · 90919-01059 |
| 19500 | Ignition coil assembly | 90919-02083 · 90919-02098 |
| 19730 | Ignition coil resistor | 90919-04027 · 90919-04030 |

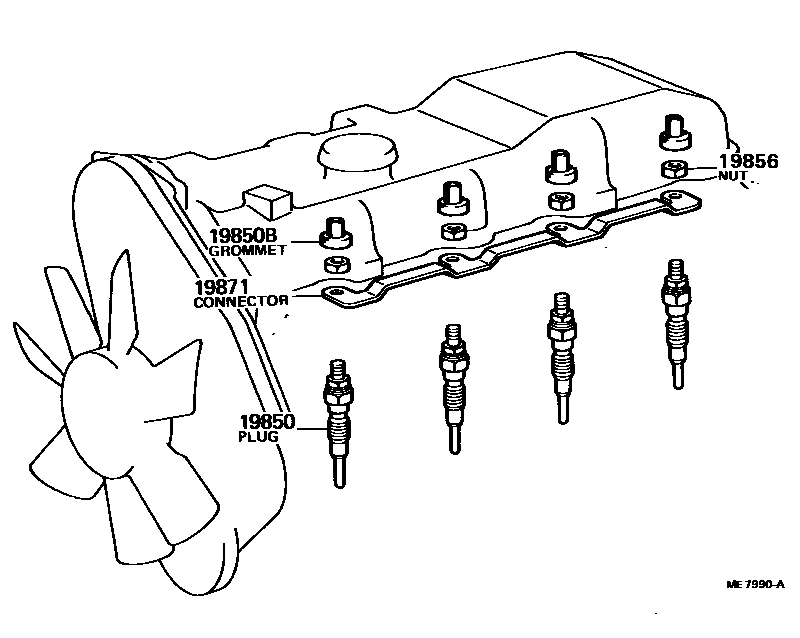

| 19850 | Glow plug assembly | 19850-54030 · 19850-54040 · 19850-54050 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19856 | Connecting nut (for glow plug) | 90170-04001 · 90170-04002 |
| 19871 | Glow plug connector No. 1 | 19871-54010 · 19871-54011 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21162 · 90919-21239 · 90919-21245 |
| 19901A | coil damping line | 90919-13025 · 90919-13128 · 90919-13146 |
| 19901B | No. 1 spark plug damper wire | 90919-12082 · 90919-12298 · 90919-12308 |
| 19901C | No. 2 spark plug damper wire | 90919-12145 · 90919-12298 · 90919-12310 |
| 19901D | No. 3 spark plug damper wire | 90919-12145 · 90919-12298 · 90919-12310 |
| 19901E | No. 4 spark plug damper wire | 90919-12146 · 90919-12298 · 90919-12311 |
| 19901R | Rubber spark plug damping wire ring | 90202-11067 |
| 19965 | No. 1 ignition coil band | 90919-03075 |
