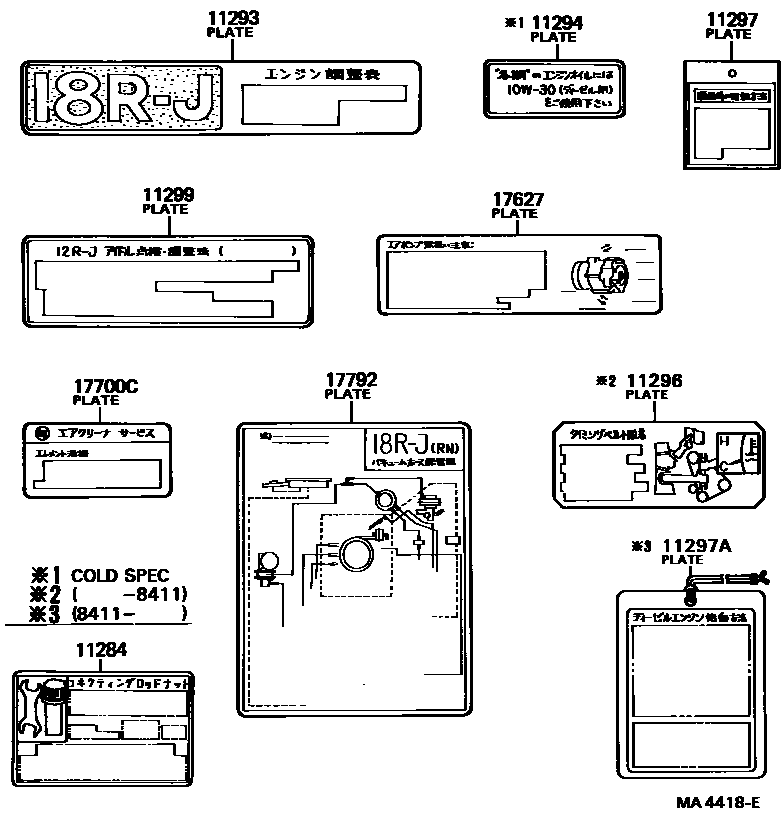

Toyota HILUX 警示铭牌和名称铭牌(发动机) — Figure 1709
Toyota HILUX EPC diagram 1709, 警示铭牌和名称铭牌(发动机), with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11284 | Engine bolt information plate | 11284-54010 |
| 11293 | Engine warning and engine name plate | 11293-31090 · 11293-31110 · 11293-34130 · 11293-34140 · 11293-54010 · 11293-54030 |
| 11294 | Engine No. 2 warning plate | 11294-54040 · 11294-56010 |
| 11296 | Timing belt warning plate | 11296-54010 |
| 11297 | Engine No. 3 warning plate | 11297-13010 |
| 11297A | Engine start warning plate | 11297-64010 |
| 11299 | Idle speed adjustment warning nameplate | 11299-31030 · 11299-31050 · 11299-34060 |
| 17627 | No. 1 air pump warning nameplate | 90917-07066 |
| 17700C | Air filter warning plate (for engine models) | 17791-64020 · 90917-07053 · 90917-07078 · 90917-07079 · 90917-07087 · 90917-07095 |
| 17792 | Engine vacuum hose information plate | 17792-31101 · 17792-31110 · 17792-31120 · 17792-34110 · 17792-34112 |
