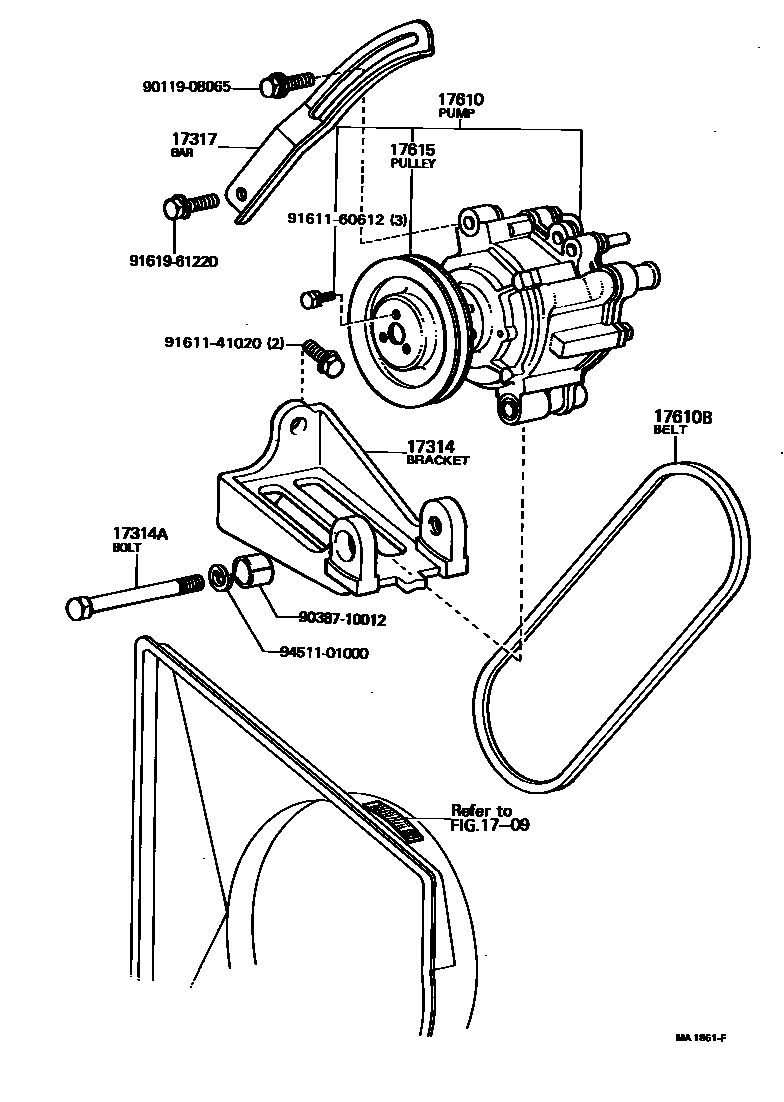

Toyota HILUX 空气泵 — Figure 1705
Toyota HILUX EPC diagram 1705, 空气泵, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17314 | air pump bracket | 17314-34020 |
| 17314A | Hexagonal bolts (used to secure the air pump bracket) | 90101-10080 |
| 17317 | No. 1 air pump adjustment lever | 17317-34020 |
| 17610 | air pump assembly | 17610-34020 |
| 17610B | V-belt (for air pump) | 99321-50780 |
| 17615 | Pulley (for air pump) | 17615-34010 |
