Toyota HILUX Exhaust Pipe — Figure 1702

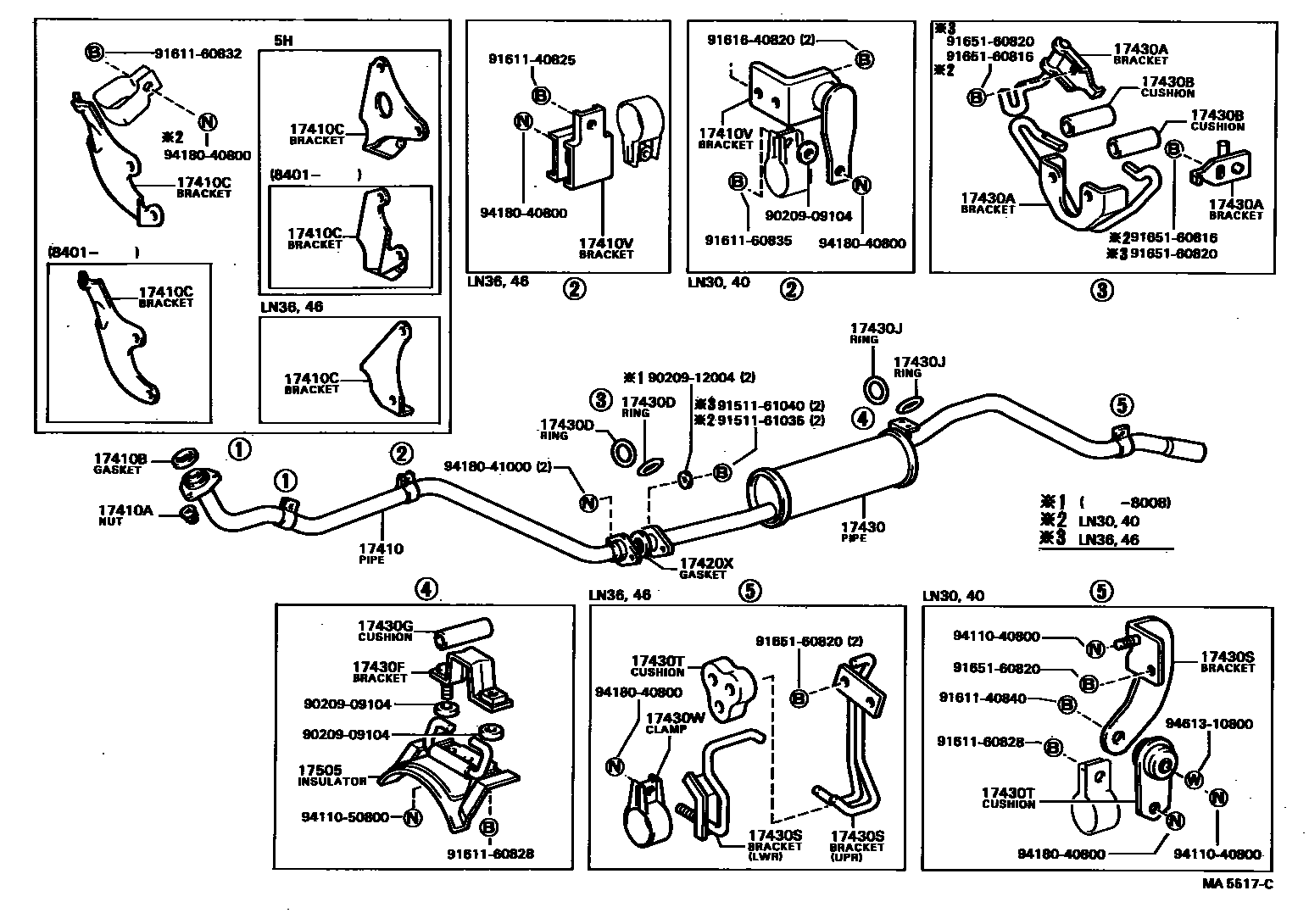

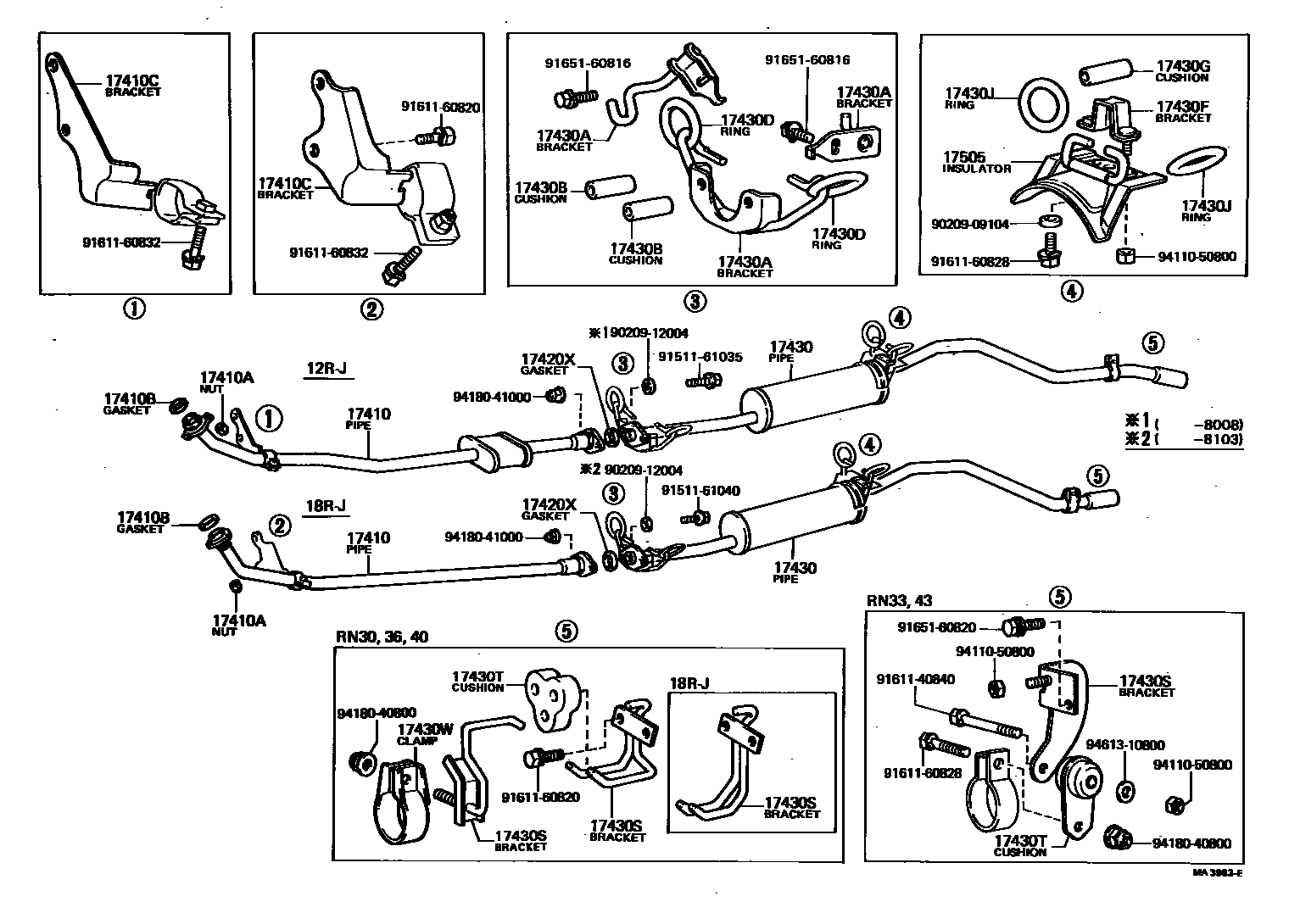

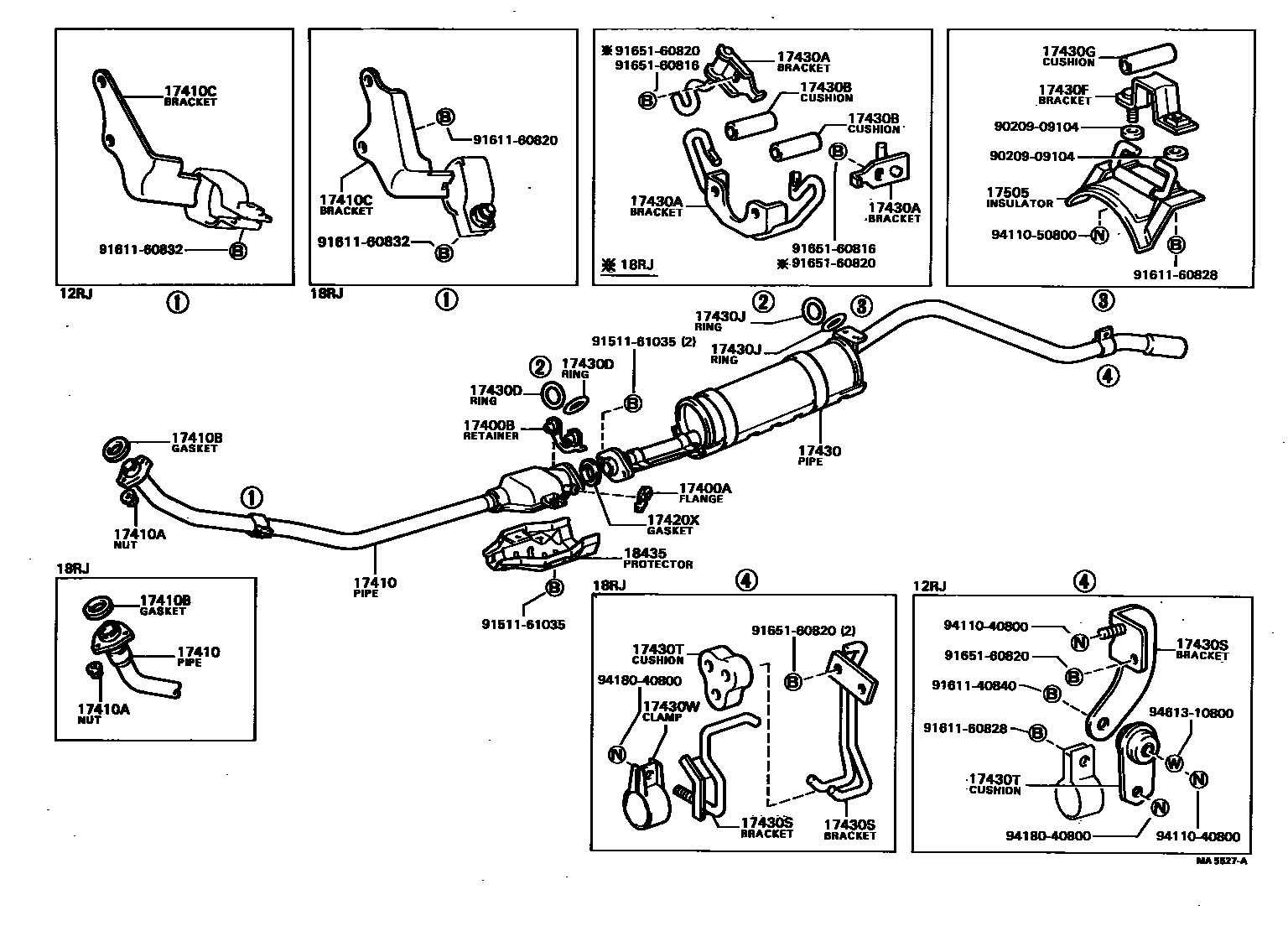

Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400A | Thermal sensor air inlet flange | 18491-18010 |
| 17400B | exhaust pipe fixings | 18495-38020 |
| 17410 | Front exhaust pipe assembly | 17410-31290 · 17410-31360 · 17410-34320 · 17410-34321 · 17410-34460 · 17410-54070 · 17410-54080 · 17410-54150 · 17410-54400 |
| 17410A | Exhaust pipe fixing studs and nuts | 90170-10199 · 90179-10010 |
| 17410B | Exhaust pipe gasket | 90917-06004 · 90917-06005 |
| 17410C | Front exhaust pipe bracket (for front) | 17571-31140 · 17571-31141 · 17571-34200 · 17571-54050 · 17571-54060 · 17571-54100 · 17571-54130 · 17571-54180 |
| 17410V | Front exhaust pipe bracket (for rear) | 17562-54031 · 17572-54030 |
| 17420X | Center exhaust pipe liner | 90917-06004 · 90917-06008 · 90917-06012 |
| 17430 | Exhaust tailpipe assembly | 17430-31161 · 17430-31171 · 17430-31320 · 17430-31330 · 17430-31350 · 17430-31360 · 17430-34440 · 17430-34480 · 17430-54220 · 17430-54230 · 17430-54240 |
| 17430A | Exhaust tailpipe bracket (for front) | 17503-31021 · 17503-31030 · 17503-31031 · 17503-31050 · 17503-34020 · 17503-38101 · 17503-54010 · 17503-54020 · 17504-31010 · 17507-31060 |
| 17430B | Exhaust tailpipe bumper (for front) | 90540-09003 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 90301-33001 |
| 17430F | Exhaust tailpipe bracket (for center) | 17576-31050 |
| 17430G | Exhaust tailpipe cushion (for center) | 90540-09003 |
| 17430J | Exhaust tailpipe bolt or ring (for center) | 90301-33001 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17566-31020 · 17566-54010 · 17575-31070 · 17577-34040 |
| 17430T | Exhaust tailpipe cushion (for rear) | 17563-31090 · 90917-08004 |
| 17430W | No. 2 exhaust tailpipe clip (for rear) | 90461-23018 · 90461-23020 |
| 17505 | No. 1 exhaust pipe heat insulation pad sub-assembly | 17505-31010 |
| 18435 | Three-way catalytic converter protection device | 18407-31020 |
