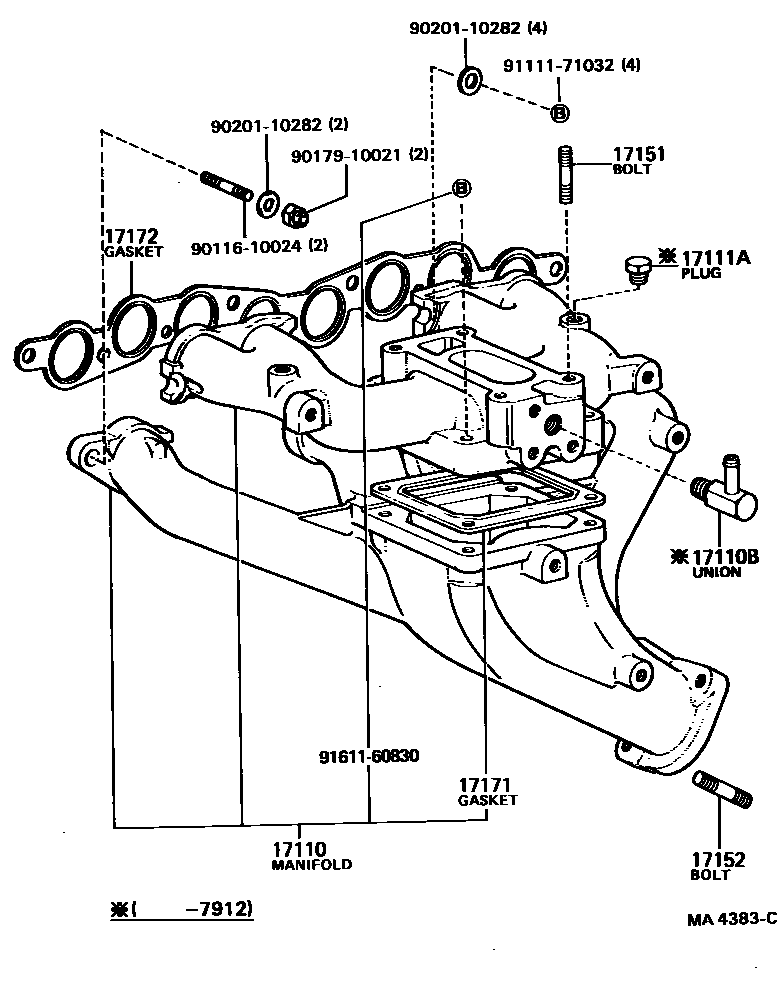

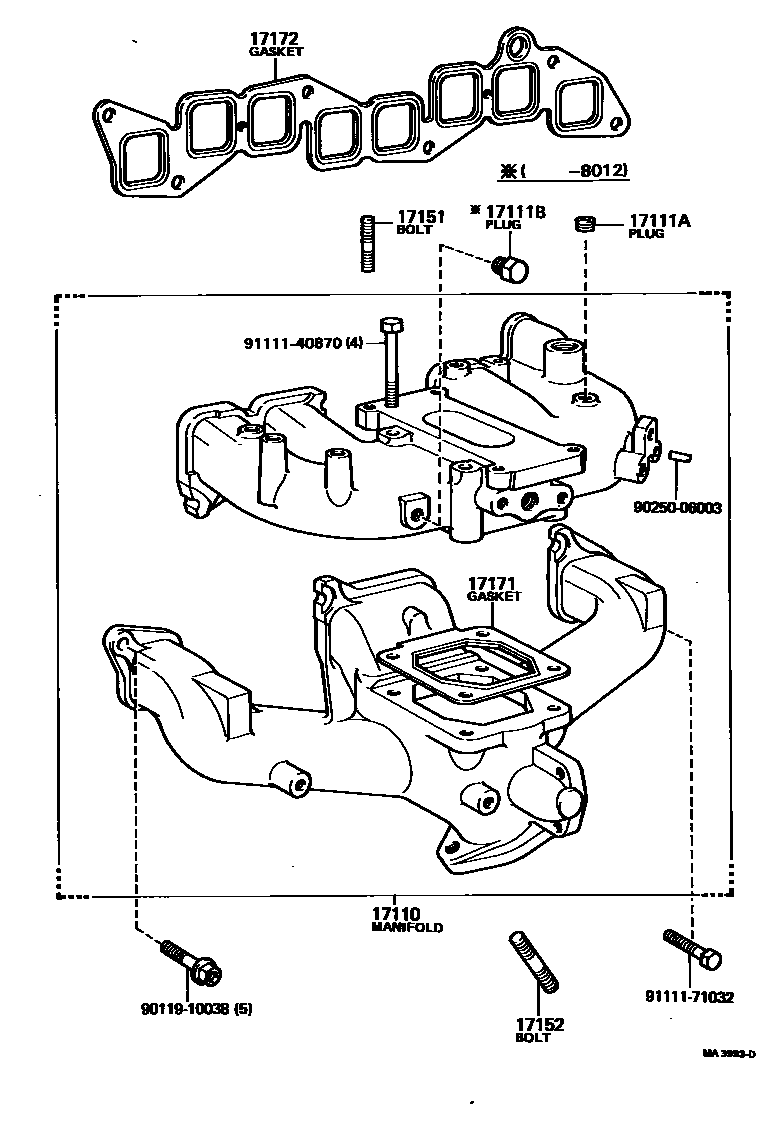

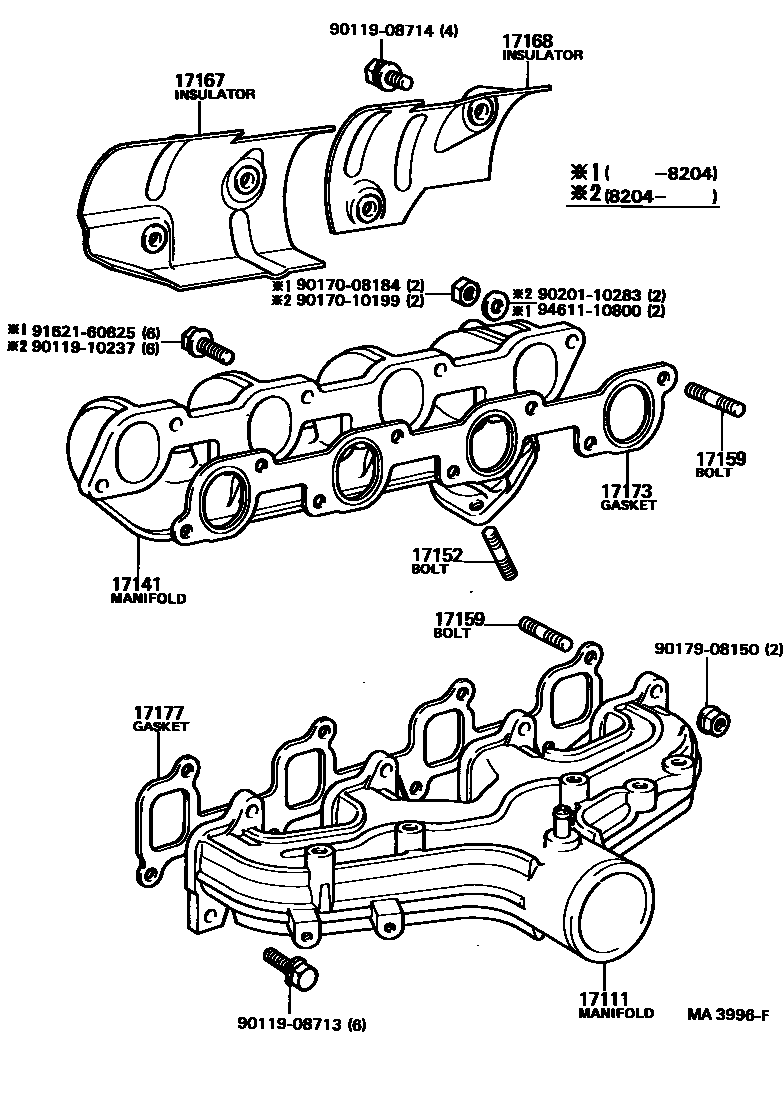

Toyota HILUX Manifold — Figure 1701
Toyota HILUX EPC diagram 1701, Manifold, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17110 | Manifold assembly | 17110-31090 · 17110-31120 · 17110-34120 · 17110-34121 |
| 17110B | Fitting (for vent hose to manifold) | 90407-09002 |
| 17111 | Intake Manifold | 17101-54011 · 17101-54030 · 17101-54040 |
| 17111A | No. 1 screw plug | 90344-51001 · 90344-51010 · 90344-51014 · 90345-51005 |
| 17111B | No. 2 screw plug | 90072-34107 |
| 17141 | exhaust manifold | 17141-54011 · 17141-54012 · 17141-54040 |
| 17151 | Studs (for manifold to carburetor) | 90116-08052 · 90116-08320 |
| 17152 | Studs (for manifold to exhaust) | 90116-10017 · 90116-10027 · 90116-10042 · 90116-10071 · 90116-10088 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08053 · 90116-08220 · 90116-10027 · 90116-10071 · 90116-10088 · 90116-10091 · 90116-10141 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-54010 · 17167-54011 · 17167-54040 · 17167-54041 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-54010 · 17168-54011 |
| 17171 | Gasket (intake manifold to exhaust manifold) | 17171-31020 · 17171-34021 |
| 17172 | Gasket (manifold to cylinder head) | 17172-31021 · 17172-34010 · 17172-34020 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-54010 · 17173-54011 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-54010 · 17177-54011 · 17177-54012 |
