Toyota HILUX RADIATOR & WATER OUTLET — Figure 1603

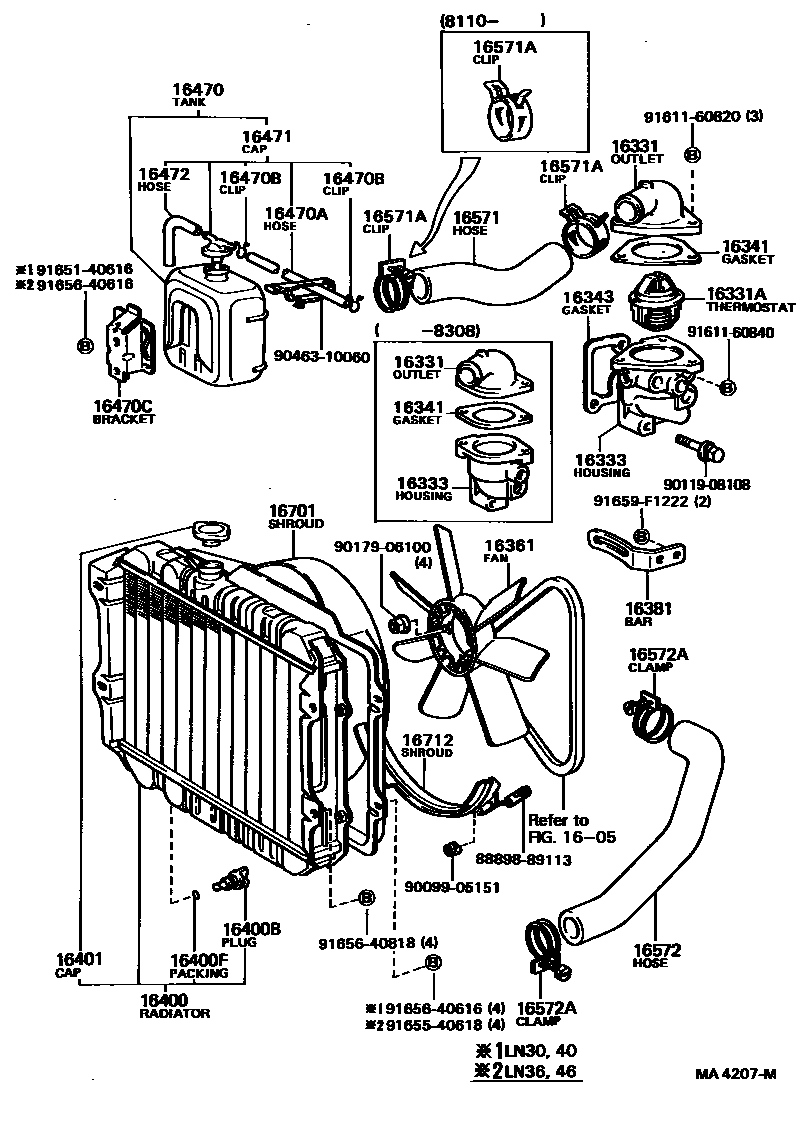

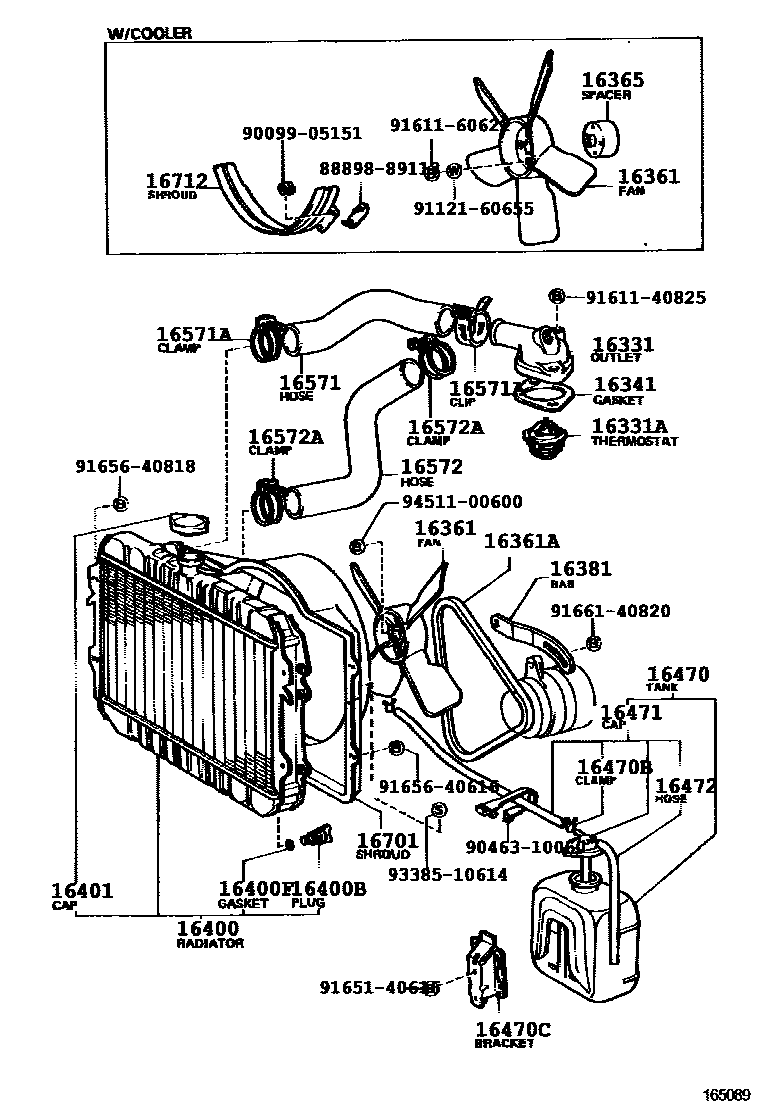

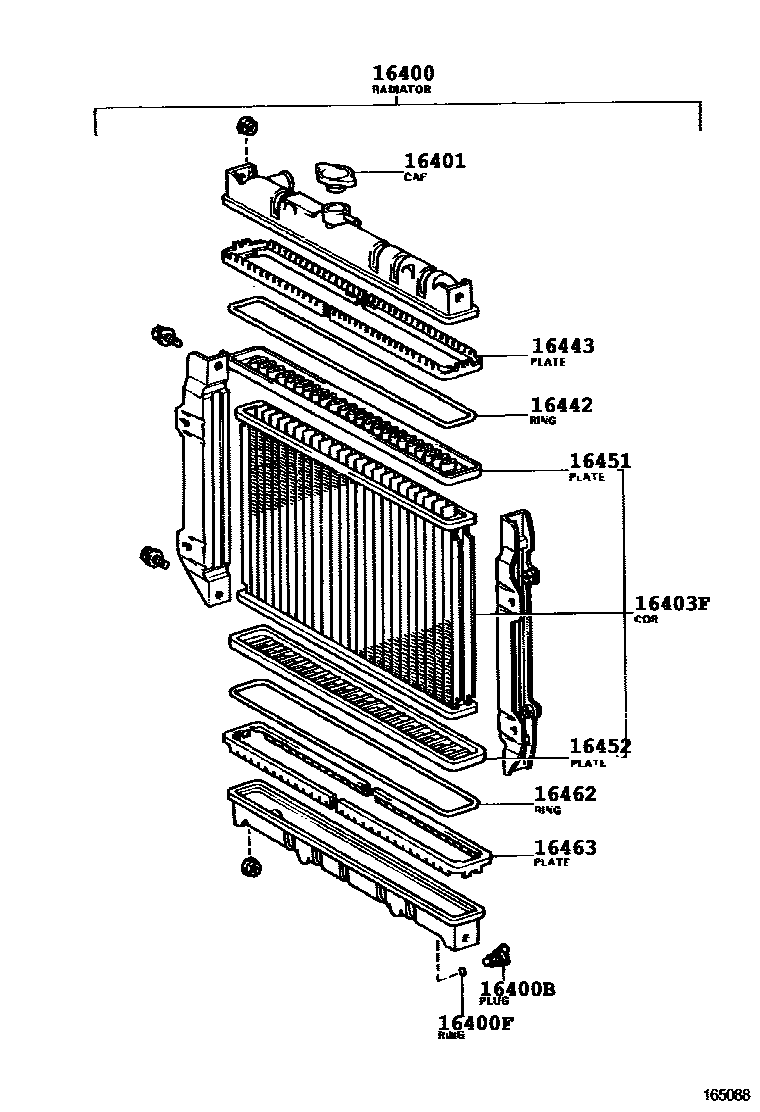

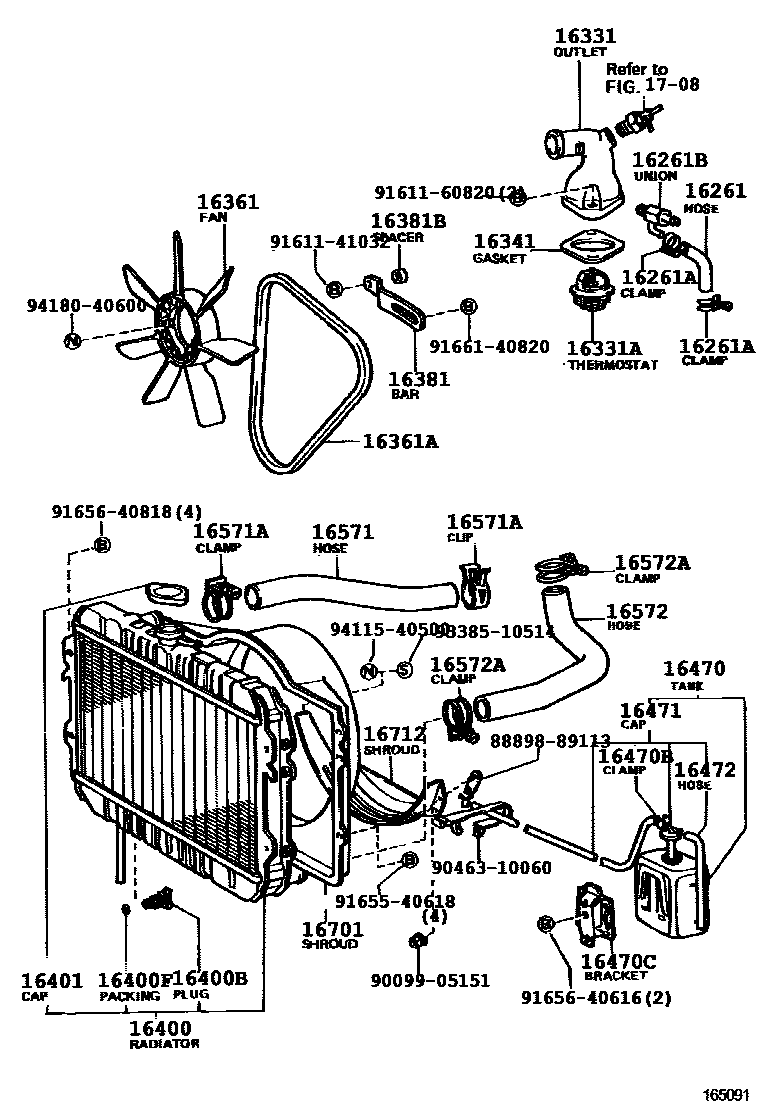

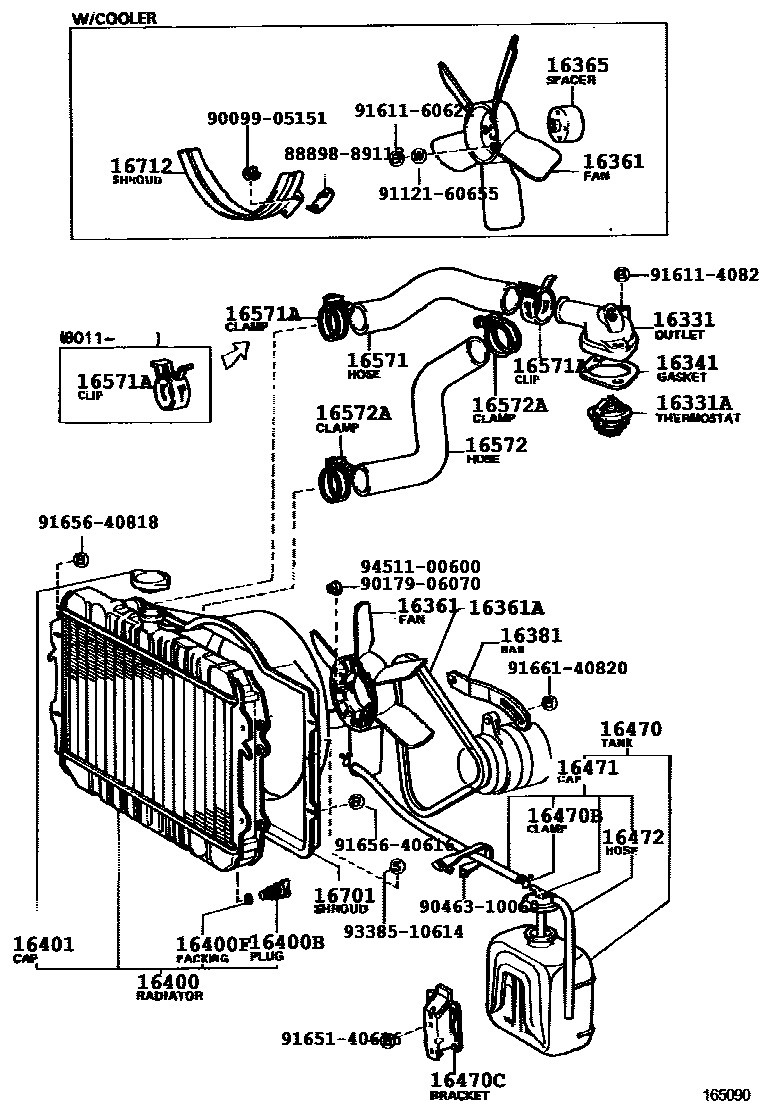

Toyota HILUX EPC diagram 1603, RADIATOR & WATER OUTLET, with 5 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 90910-05106 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96112-10160 |
| 16261B | Connector (for water bypass hose) | 90404-17005 |
| 16331 | Water outlet | 16331-31082 · 16331-34130 · 16331-36012 · 16331-54010 · 16331-54030 |
| 16331A | thermostat | 90916-03034 · 90916-03036 · 90916-03037 · 90916-03040 · 90916-03042 · 90916-03043 · 90916-03054 · 90916-03055 · 90916-03061 · 90916-03062 · 90916-03072 |
| 16333 | Water outlet shell | 16333-54010 · 16333-54011 · 16333-54050 |
| 16341 | GASKET, WATER OUTLET | 16341-38010 · 16341-38011 · 16341-41010 · 16341-54011 · 16341-54020 · 16341-54030 |
| 16343 | Outlet shell gasket | 16343-54010 · 16343-54011 |
| 16361 | Fan | 16361-31021 · 16361-31050 · 16361-34030 · 16361-44040 · 16361-44041 |
| 16361A | V-belts (for fans and generators) | 90916-02133 · 99321-00840 · 99332-00890 · 99332-00900 · 99332-00985 · 99332-10985 · 99332-11000 · 99341-50840 |
| 16365 | fan spacer | 16365-44030 |
| 16381 | Fan belt adjustment lever | 16381-30021 · 16381-31012 · 16381-34030 · 16381-54011 |
| 16381B | Fan belt adjustment lever spacer | 90560-10005 |
| 16400 | Radiator assembly | 16400-31230 · 16400-31330 · 16400-34290 · 16400-54080 · 16400-54081 · 16400-54082 |
| 16400B | Radiator drain switch screw plug | 23322-54010 · 90910-09054 |
| 16400F | Seal (for radiator drain switch) | 96710-01007 · 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-36011 · 16401-63010 |
| 16403F | Radiator core sub-assembly | 16403-31330 |
| 16442 | O-ring (for radiator tank) | 16442-31330 |
| 16443 | Radiator upper tank locking plate | 16443-31330 · 16443-31331 |
| 16451 | Radiator core upper plate | 16451-31330 |
| 16452 | Radiator core lower plate | 16451-31330 |
| 16462 | O-ring (for radiator lower tank) | 16442-31330 |
| 16463 | Radiator lower tank locking plate | 16443-31330 · 16443-31331 |
| 16470 | Radiator reservoir assembly | 16470-34120 · 16470-89103 · 16470-89105 · 16470-89106 |
| 16470A | Hoses or tubes (for radiator reservoir) | 90099-33534 · 90445-12030 · 90445-12730 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16470C | Bracket (for radiator reservoir) | 16402-31010 · 16402-89101 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-89103 · 16405-89104 · 16405-89105 · 16471-34120 · 16471-89103 |
| 16472 | Breather hose | 85338-22020 · 85338-89102 |
| 16571 | Radiator water inlet hose | 16571-34090 · 16571-54050 · 16571-54090 · 16572-31091 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-37001 · 96111-10440 |
| 16572 | Radiator outlet hose | 16571-31024 · 16572-34061 · 16572-54050 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90460-49062 · 96111-10460 · 96111-10480 · 96111-10500 |
| 16701 | Fan cover sub-assembly | 16071-89101 · 16701-89101 · 16701-89102 · 16711-89104 · 16711-95110 · 16711-95112 |
| 16712 | No. 2 fan cover | 16831-89103 · 16831-89104 · 16831-95110 · 16831-95112 |
