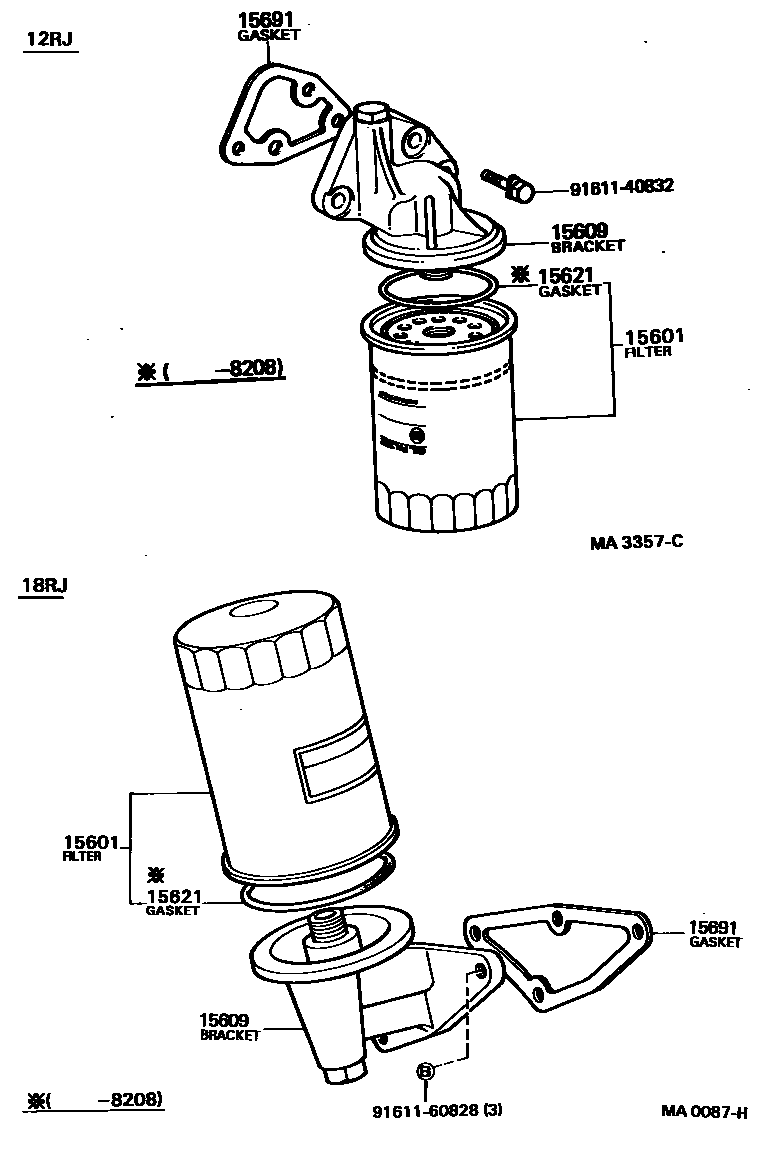

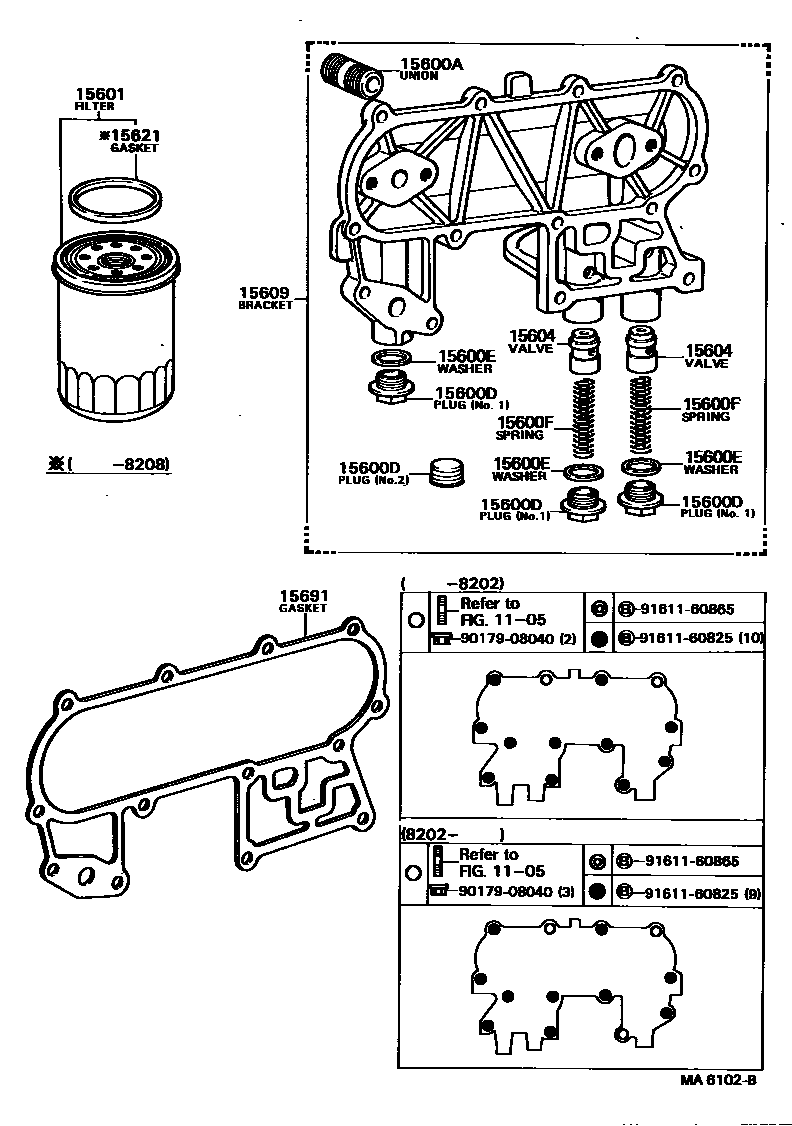

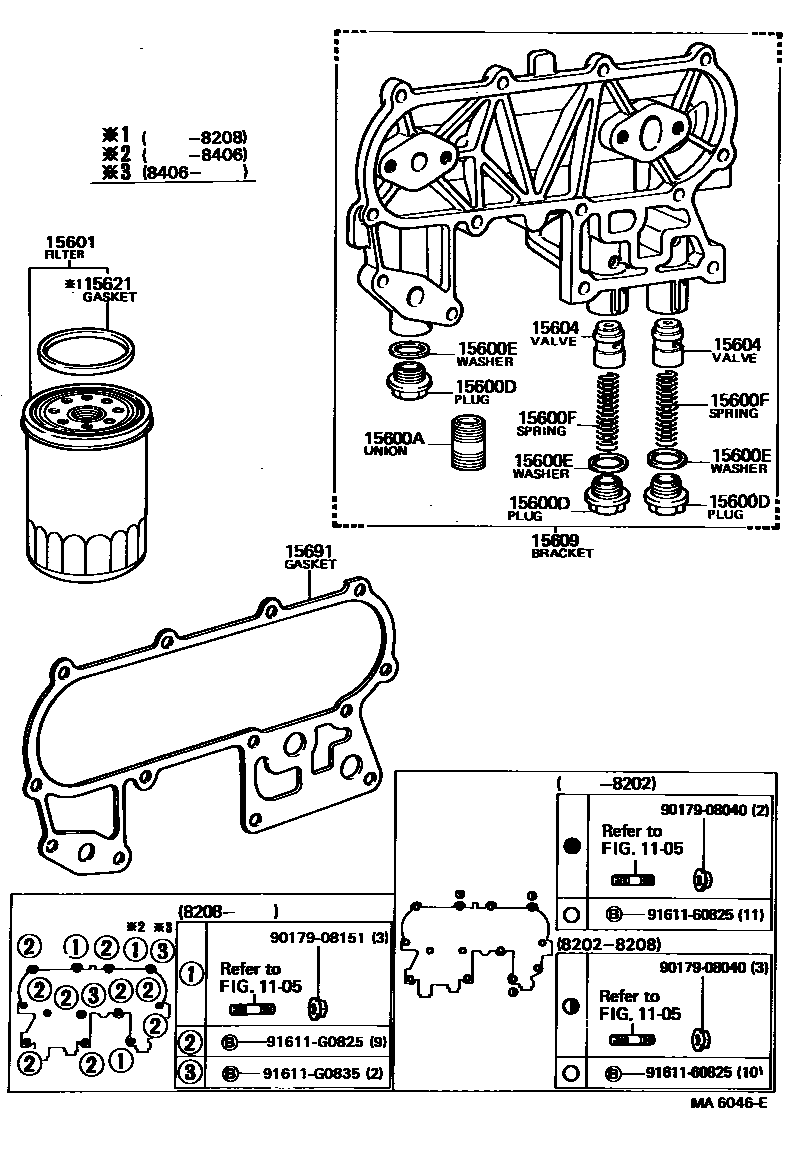

Toyota HILUX Oil Filter — Figure 1502
Toyota HILUX EPC diagram 1502, Oil Filter, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15600A | Connector (for oil filter) | 15116-54010 |
| 15600D | Screw plug (for oil filter) | 90341-18001 · 90341-18015 · 90344-54003 |
| 15600E | Gasket (for oil filter) | 90430-18001 · 90430-18011 |
| 15600F | Compression spring (for oil filter) | 90501-16026 |
| 15601 | Oil filter sub-assembly | 15600-41010 · 15601-33010 · 15601-33020 · 15601-33021 |
| 15604 | Oil safety valve sub-assembly | 15131-54010 |
| 15609 | Oil filter bracket sub-assembly | 15609-31030 · 15609-33011 · 15609-54010 · 15609-54011 · 15609-54012 · 15609-54013 · 15609-54020 |
| 15621 | Oil filter body gasket | 15621-22010 · 15621-41010 |
| 15691 | oil filter gasket | 15691-31010 · 15691-33010 · 15691-54010 · 15691-54011 · 15691-54012 · 15691-54020 · 15692-54030 |
