Toyota HILUX Ventilation Hose — Figure 1201

Toyota HILUX EPC diagram 1201, Ventilation Hose, with 2 images and 9 PNC and OE references.

Toyota HILUX Ventilation Hose EPC diagram — AS0198A
Ventilation Hose — AS0198A (197808 – 999999)

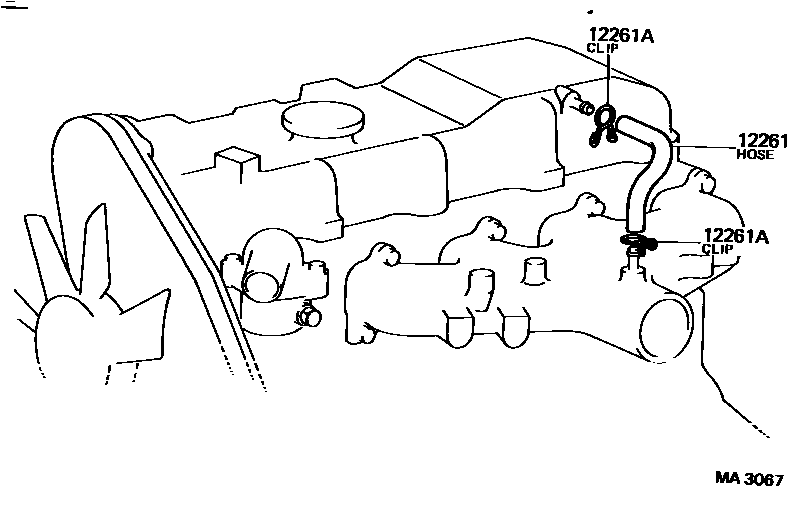

Toyota HILUX Ventilation Hose EPC diagram — MA3067
Ventilation Hose — MA3067 (197912 – 999999)

PNC and OE references

PNCPart nameOE numbers
11271Cylinder block side cover11271-33010
12204Ventilation valve sub-assembly12204-15020 · 12204-35010 · 12204-41010 · 12204-45010
12204AGasket (for ventilation system)90480-18180
12261Ventilation Hose12261-54010
12261AClip or clip (for vent hose)90467-15120
12262Ventilation hose No. 212261-34070 · 90445-14013
12262AClamp (for vent hose No. 2)90467-13103 · 90467-16010
12263No. 3 ventilation hose12261-31020 · 12262-34020
12263AClip (for ventilation hose)90467-20020
