Toyota HILUX Timing Gear Cover & Rear End Plate — Figure 1106

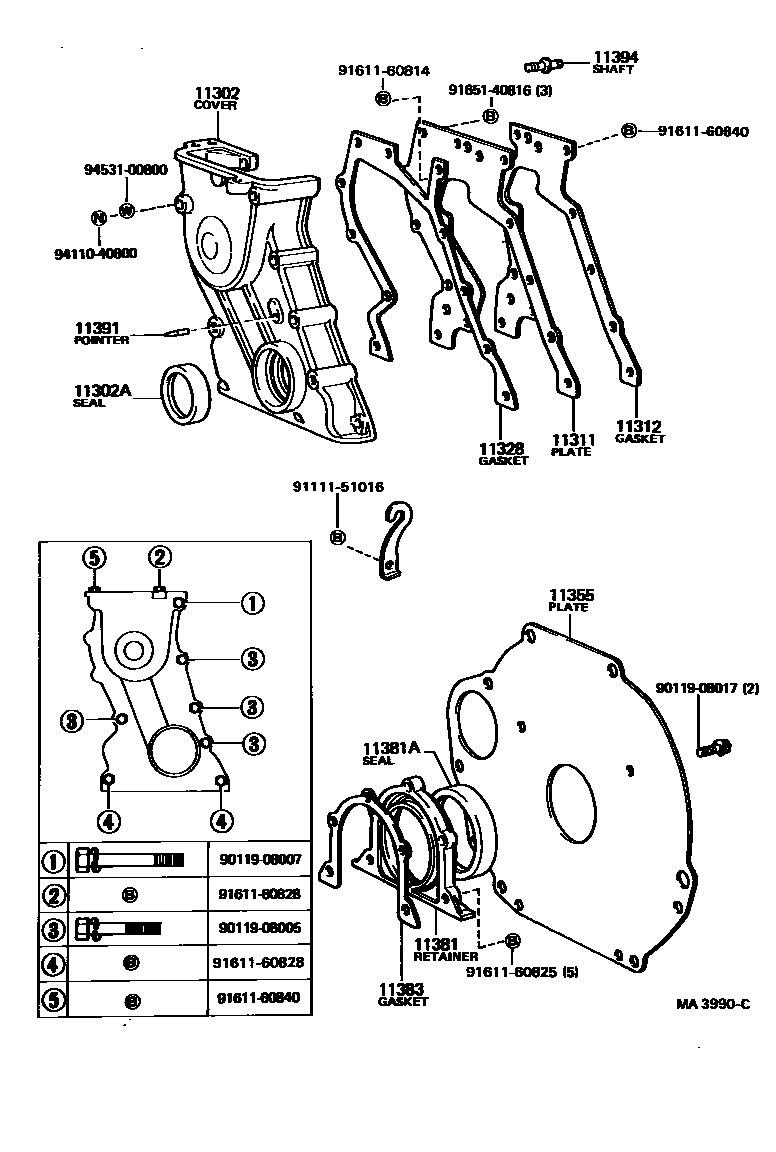

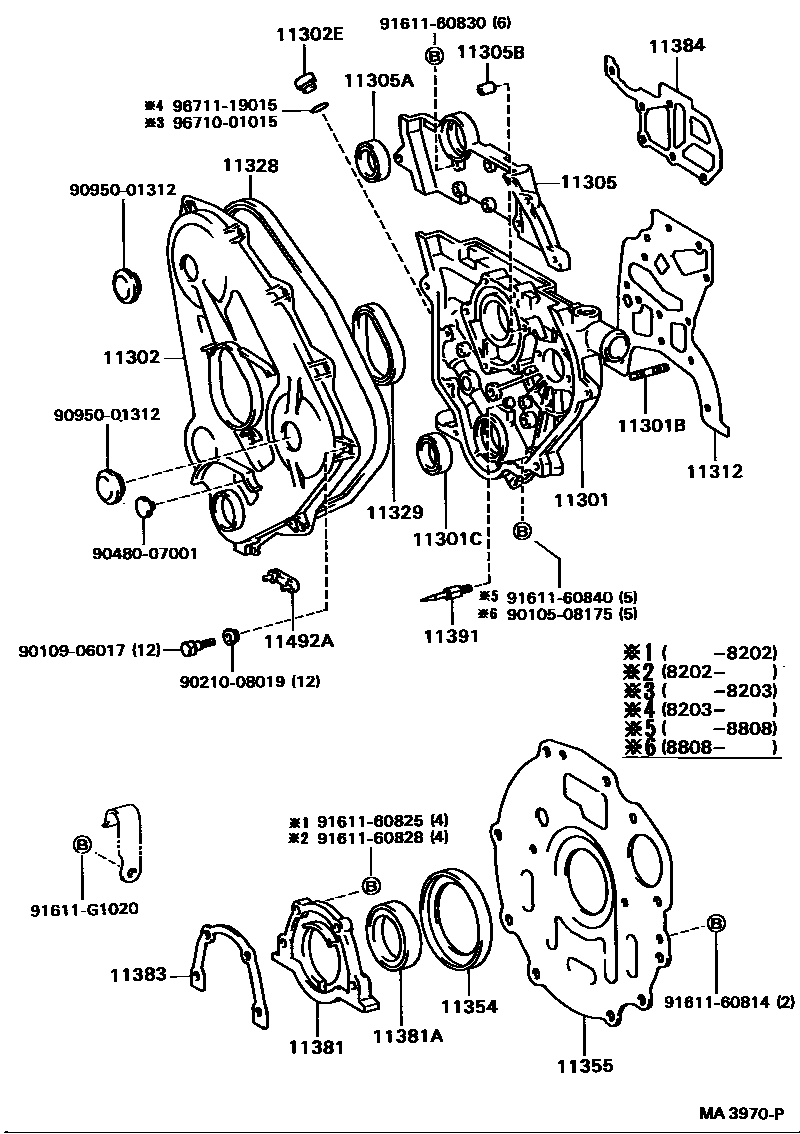

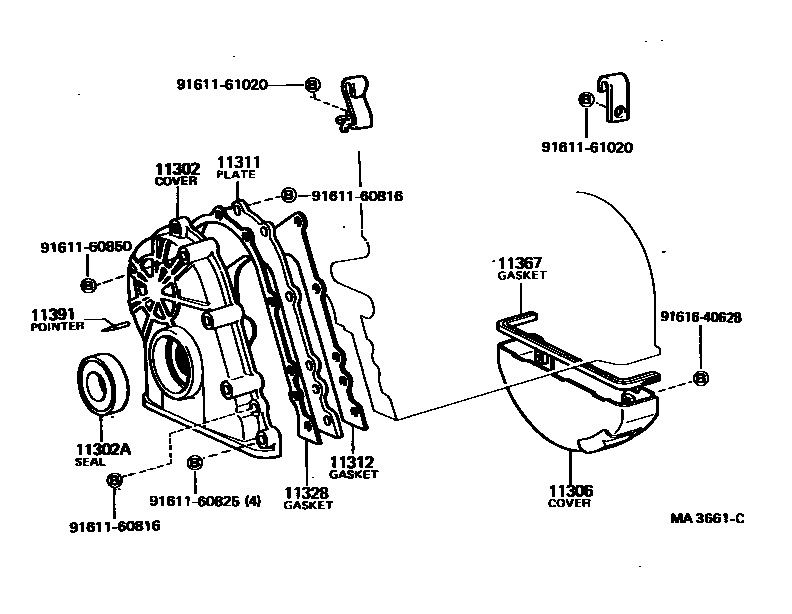

Toyota HILUX EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301 | Timing gearbox sub-assembly | 11311-54010 · 11311-54020 · 11311-54021 · 11311-54022 |
| 11301B | Stud bolts (for timing gearbox) | 92132-60828 |
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90311-42001 · 90311-42003 · 90311-42012 |
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11321-31040 · 11321-34010 · 11321-54012 · 11321-54013 · 11321-54014 |
| 11302A | Oil seal (for timing chain or timing belt cover) | 90311-38013 · 90311-45069 |
| 11302E | Straight screw plug (for timing gear cover) | 90341-18004 |
| 11305 | No. 2 oil seal seat ring | 11382-54010 |
| 11305A | Oil seal (for No. 2 oil seal seat ring) | 90311-42001 · 90311-42003 |
| 11305B | Ring pin (for No. 2 oil seal seat ring) | 90253-11001 |
| 11306 | Flywheel housing bottom cover sub-assembly | 11306-31030 |
| 11311 | front board | 11311-31010 · 11311-33011 |
| 11312 | front panel gasket | 11312-31010 · 11312-33012 · 11312-33014 · 11312-54010 · 11312-54011 · 11312-54012 · 11312-54013 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-31010 · 11328-33014 · 11328-33016 · 11328-54010 |
| 11329 | Timing gear rear cover gasket | 11329-54011 |
| 11354 | Flywheel housing dust seal | 11354-54010 |
| 11355 | rear end plate | 11355-33012 · 11355-54030 |
| 11367 | Flywheel housing lower gasket | 11367-31020 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-38010 · 11381-54010 · 11381-54020 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-80001 · 90311-85001 · 90311-85003 · 90311-85004 |
| 11383 | Engine rear oil seal seat gasket | 11383-33010 · 11383-35010 · 11383-54010 · 11383-54020 |
| 11384 | No. 2 oil seal seat ring gasket | 11384-54010 |
| 11391 | Timing pointer | 11391-31021 · 11391-40010 · 11391-54010 |
| 11394 | timing chain tensioner shaft | 11394-34010 |
| 11492A | coolant sealing plate | 11492-54010 |
