Toyota HILUX Short Block Assembly — Figure 1102

Toyota HILUX EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

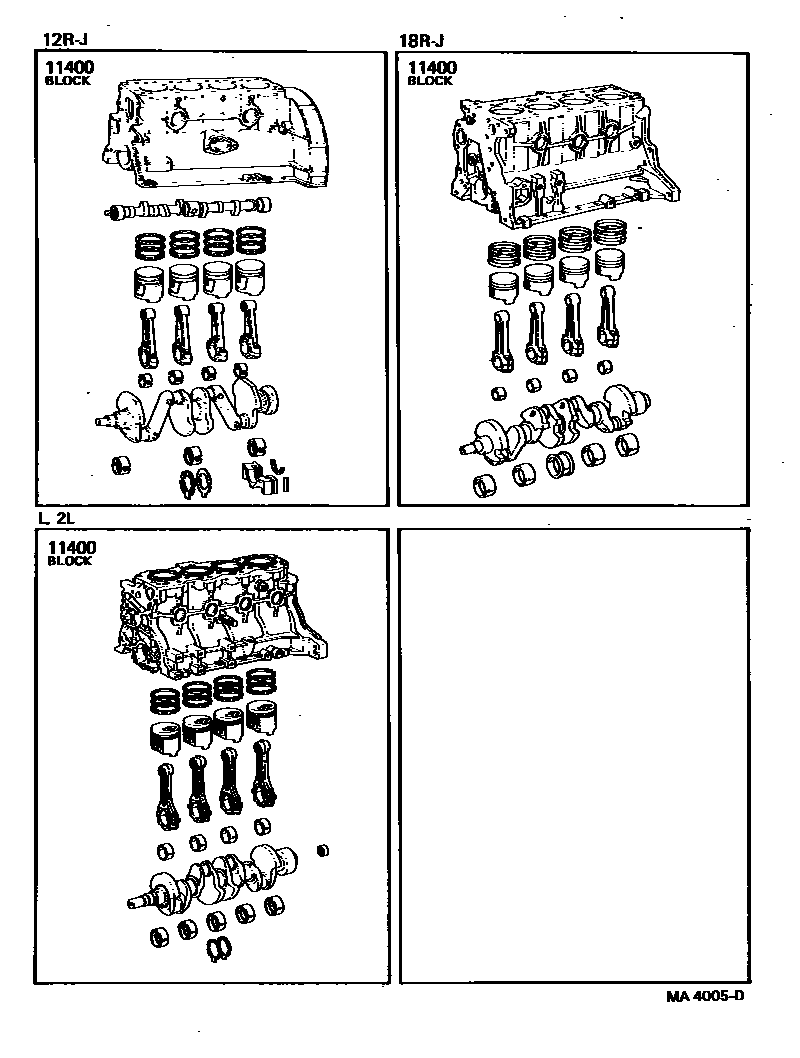

Toyota HILUX Short Block Assembly EPC diagram — MA4005D
Short Block Assembly — MA4005D (197808 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-31030 · 11400-34070 · 11400-34071 · 11400-34072 · 11400-54010 · 11400-54011 · 11400-54013 · 11400-54014 · 11400-54020 · 11400-54021 · 11400-54061 · 11400-54062 · 11400-54063
