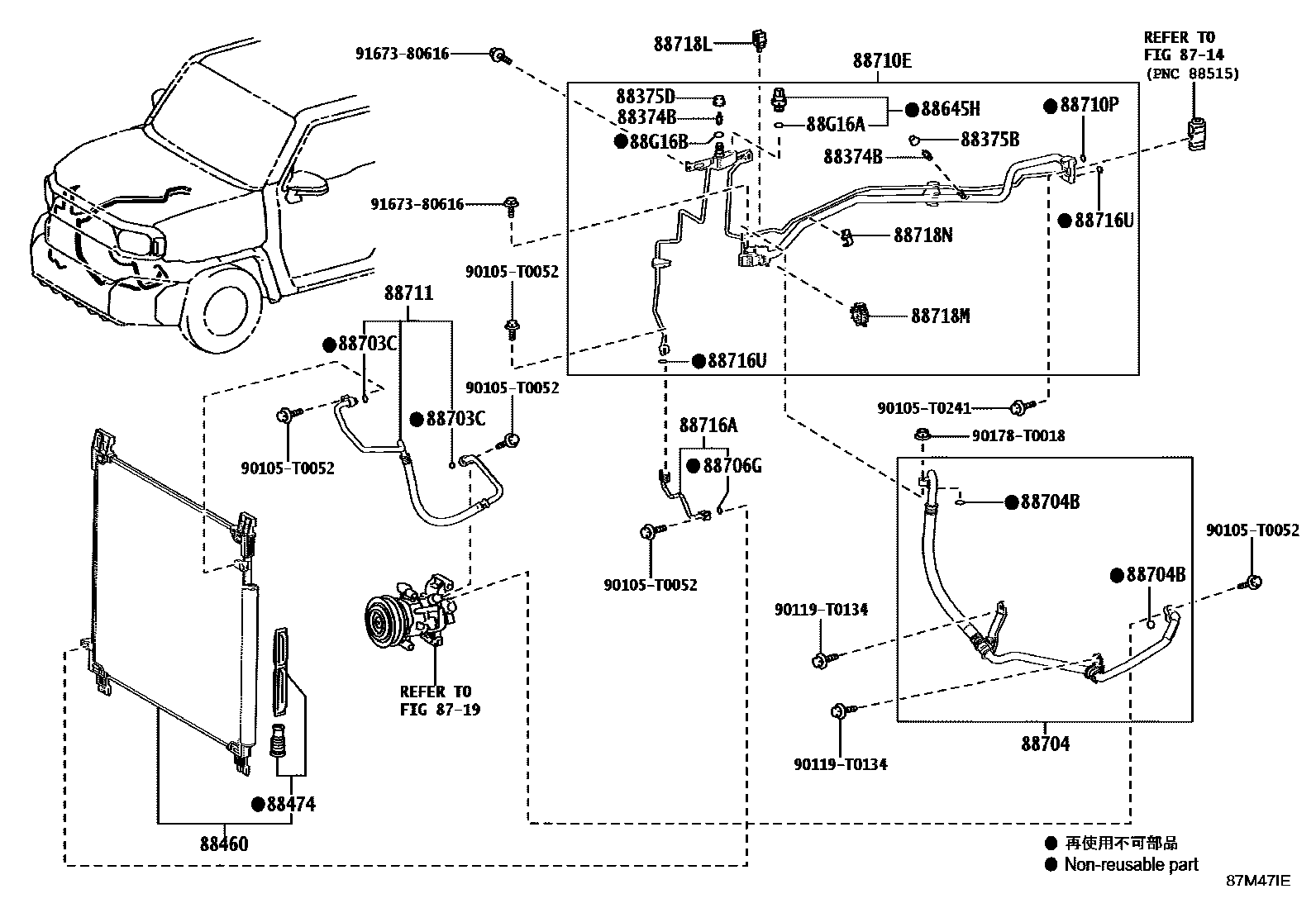

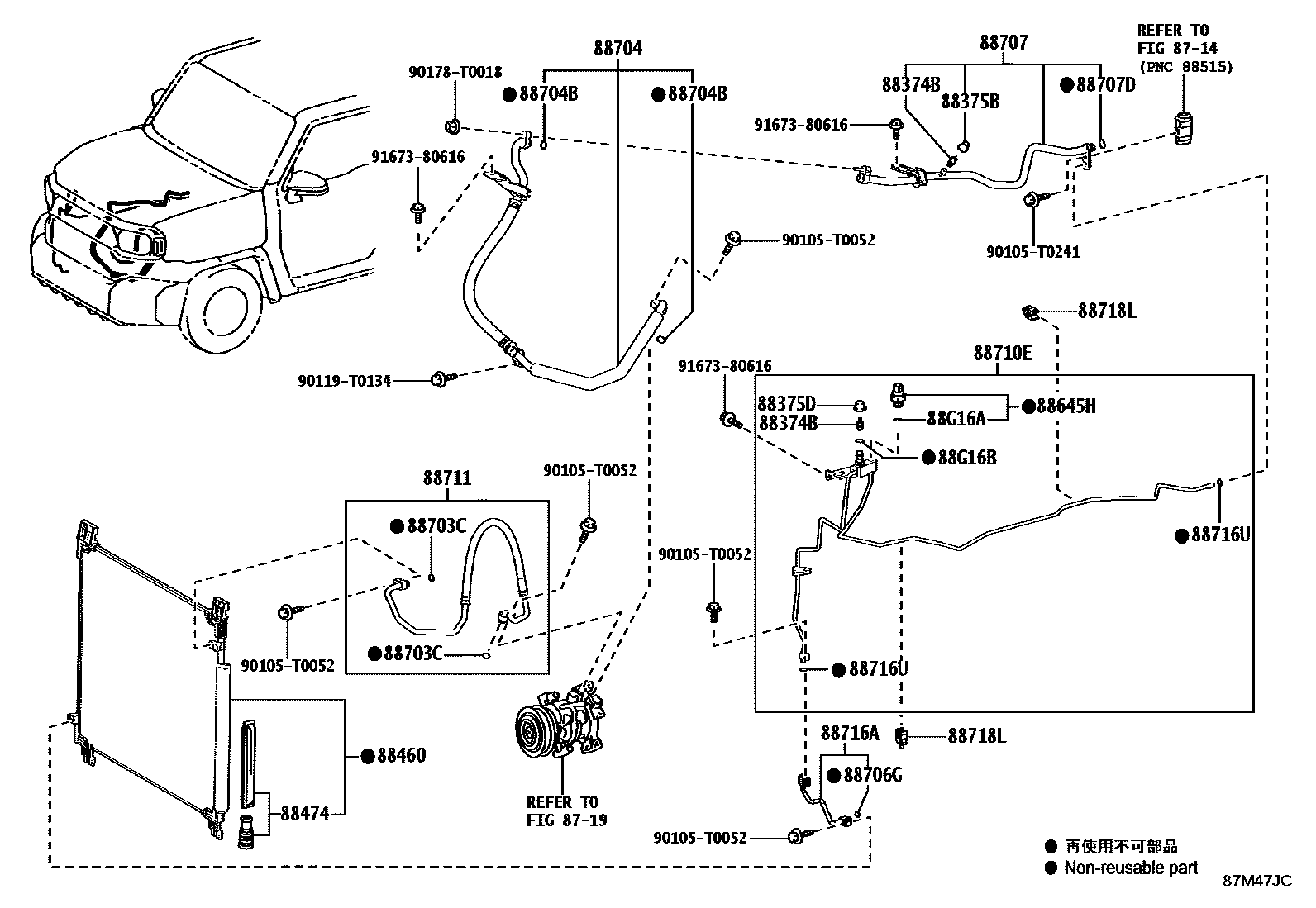

Toyota HILUX Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota HILUX EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88460 | Air conditioning condenser assembly | 884A0-0K010 · 884A0-0K020 |
| 88474 | cooler dryer | 88474-12020 |
| 88645H | No. 1 pressure switch | 88645-0K030 · 88645-0K050 |
| 88703C | O-ring (for drain hose) | 90068-14044 · 90099-14120 |
| 88704 | Oil suction hose sub-assembly | 88704-0KE70 · 88704-0KE80 · 88704-0KG10 · 88704-0KG20 |
| 88704B | O-ring (for suction hose) | 90099-14121 |
| 88706G | O-ring (for liquid pipe) | 90099-14119 |
| 88707 | Suction pipe sub-assembly | 88707-0K680 · 88707-0KB30 |
| 88707D | O-ring (for suction pipe) | 90099-14121 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-0KY60 · 88710-0KY70 · 88710-0KZ20 · 88710-0KZ30 · 88710-0KZ40 · 88710-0KZ50 |
| 88710P | No. 2 O-ring (for air conditioning pipe and accessory assembly) | 90068-14043 · 90099-14121 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-0KA60 · 88711-0KC50 · 88711-0KD10 · 88711-0KE30 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-0KQ80 · 88716-0KR60 |
| 88716U | O-ring (for cooler refrigerant liquid pipe) | 90068-14042 · 90099-14119 |
| 88718L | Pipe clamp | 88718-0KF20 · 88718-0KG80 |
| 88718M | Pipe clamp | 88718-0KZ60 |
| 88718N | Pipe clamp | 88718-0KX80 |
| 88G16A | No. 1 O-ring (for cooler refrigerant liquid hose) | 90099-14119 · 90099-14122 |
| 88G16B | No. 2 O-ring (for cooler refrigerant liquid hose) | 90099-14122 |
