Toyota HILUX 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota HILUX EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55523B | Heater control opening cover | 55523-KK020 |

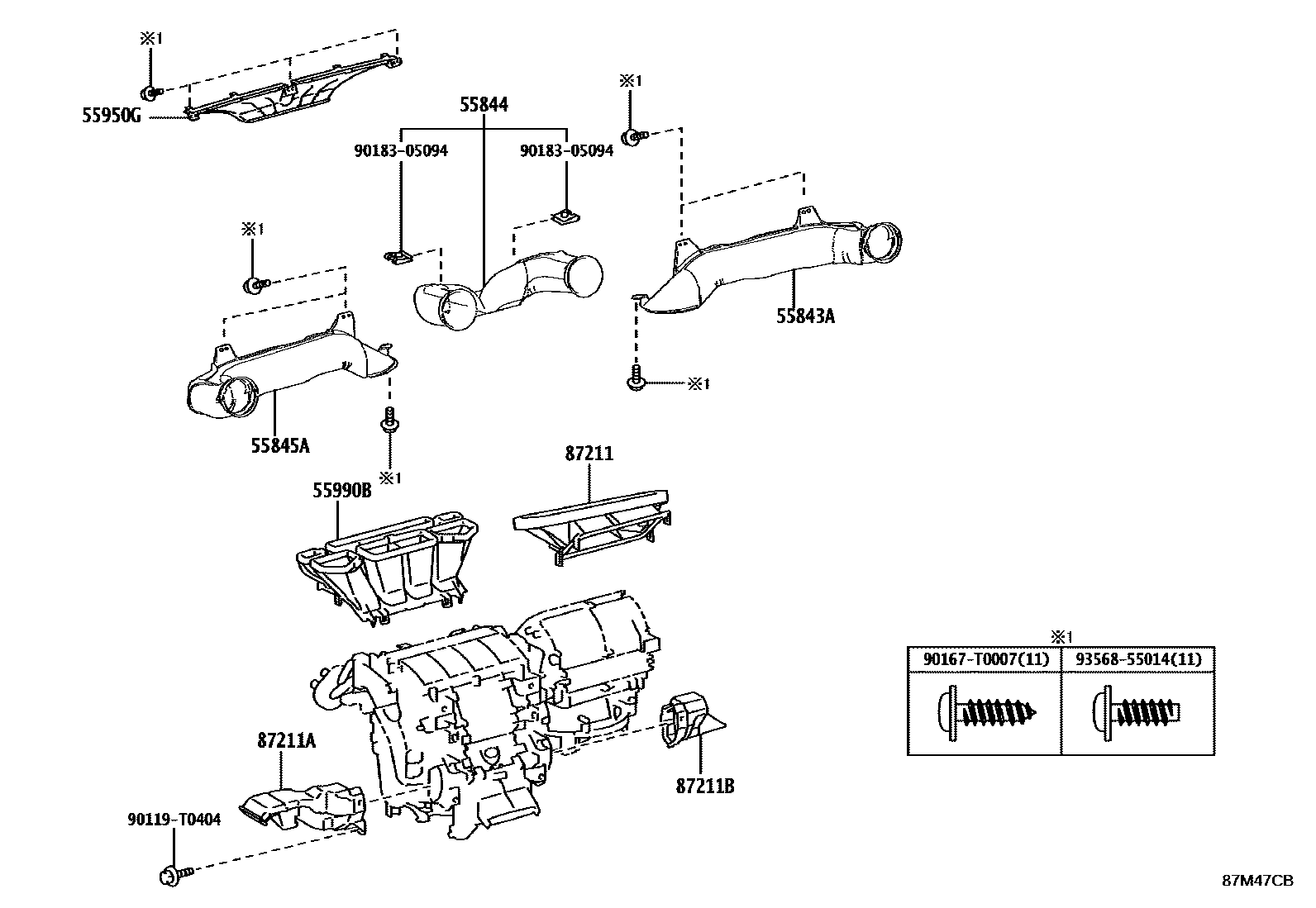

| 55843A | Air duct No. 1 from heater to air register | 55843-0K030 · 55843-0K050 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-0K060 · 55844-0K090 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-0K050 · 55845-0K060 |

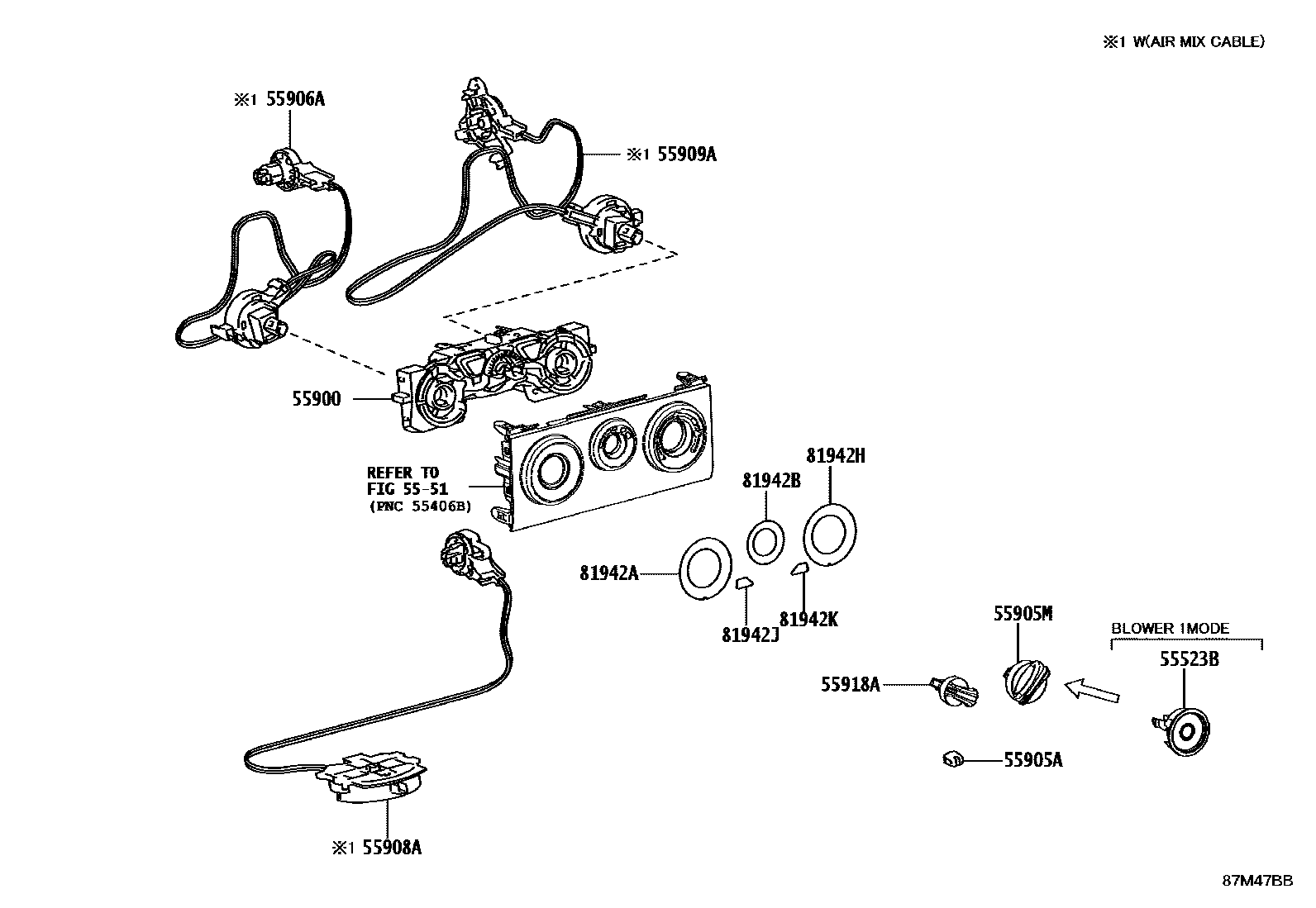

| 55900 | Air conditioning control assembly | 55900-0KE40 · 55900-0KM90 · 55900-0KS00 |
| 55905A | Heater control button | 55918-0K010 |
| 55905M | Control lever handle sub-assembly | 55905-0K230 |
| 55906A | Defroster damper control cable sub-assembly | 55906-0K060 |
| 55908A | Intake air valve control cable sub-assembly | 55908-0K110 |
| 55909A | Air mix damper control cable sub-assembly | 55909-0K060 |
| 55918A | Intake air door control lever | 55917-0K010 |
| 55950G | Defroster nozzle assembly | 55950-0K050 |
| 55990B | Lower defroster nozzle assembly | 55990-0K010 · 55990-0K030 |
| 81942A | Heater No. 1 control nameplate | 81941-0K010 |
| 81942B | Heater No. 2 control nameplate | 81942-0K660 |
| 81942H | Heater No. 3 control nameplate | 81943-0K100 · 81943-0K110 · 81943-0K170 |
| 81942J | Heater No. 4 control nameplate | 81944-0K010 |
| 81942K | Heater No. 5 control nameplate | 81945-0K010 |
| 87211 | No. 1 air duct | 87211-0K750 |
| 87211A | Duct No. 2 | 87211-0K760 |
| 87211B | No. 3 air duct | 87211-0K780 |

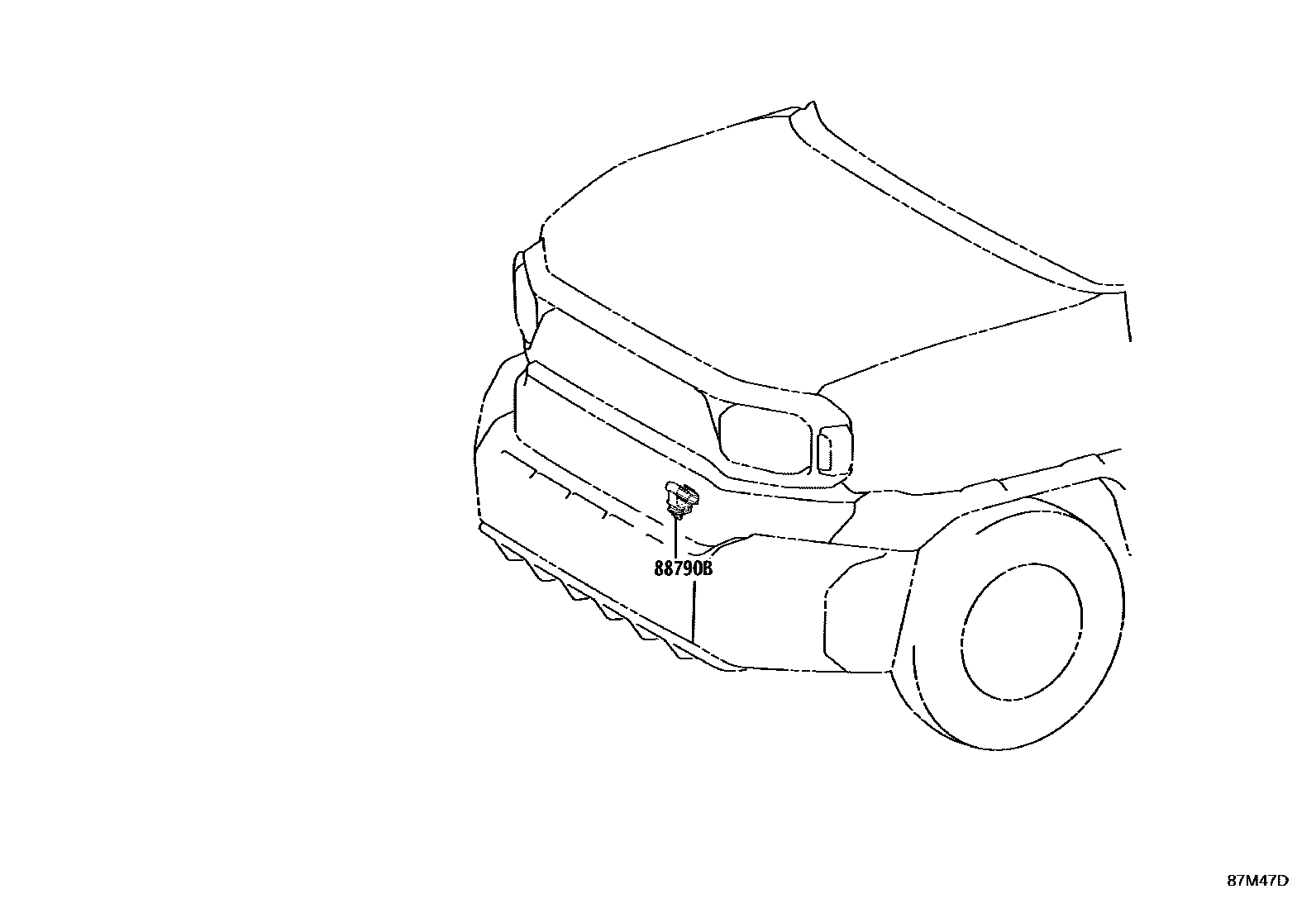

| 88790B | Thermistor assembly | 88790-0K010 · 88790-28100 |
